LSIS XEC-DP64H User Manual

Chapter 5 Positioning Instructions
5 - 48

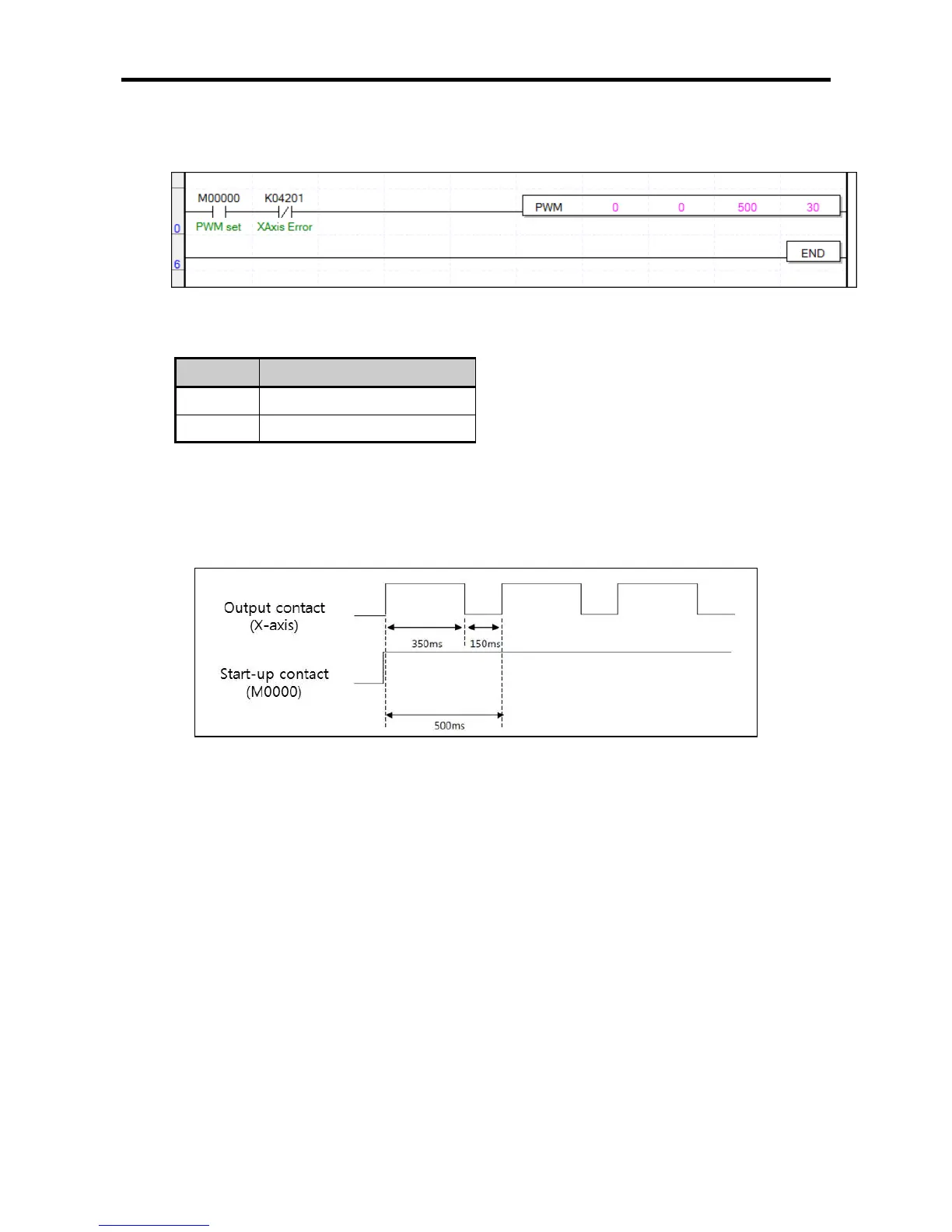

(2) Example of Use of the Instruction
(a) Example of the Program
(b) Used Device
Device
설 명
M00000
PWM output reference signal
K04201
X-axis error state
(c) Operation of the Program
• While M00000 is On which is used as output reference signal, PWM is operated.
(At this time, the X-axis is in operation or errorstatus, the instruction will not be executed.)
• If PWM executed, designated output cycle(500ms for this picture) and designated Off duty
rate(30% for this picture)
