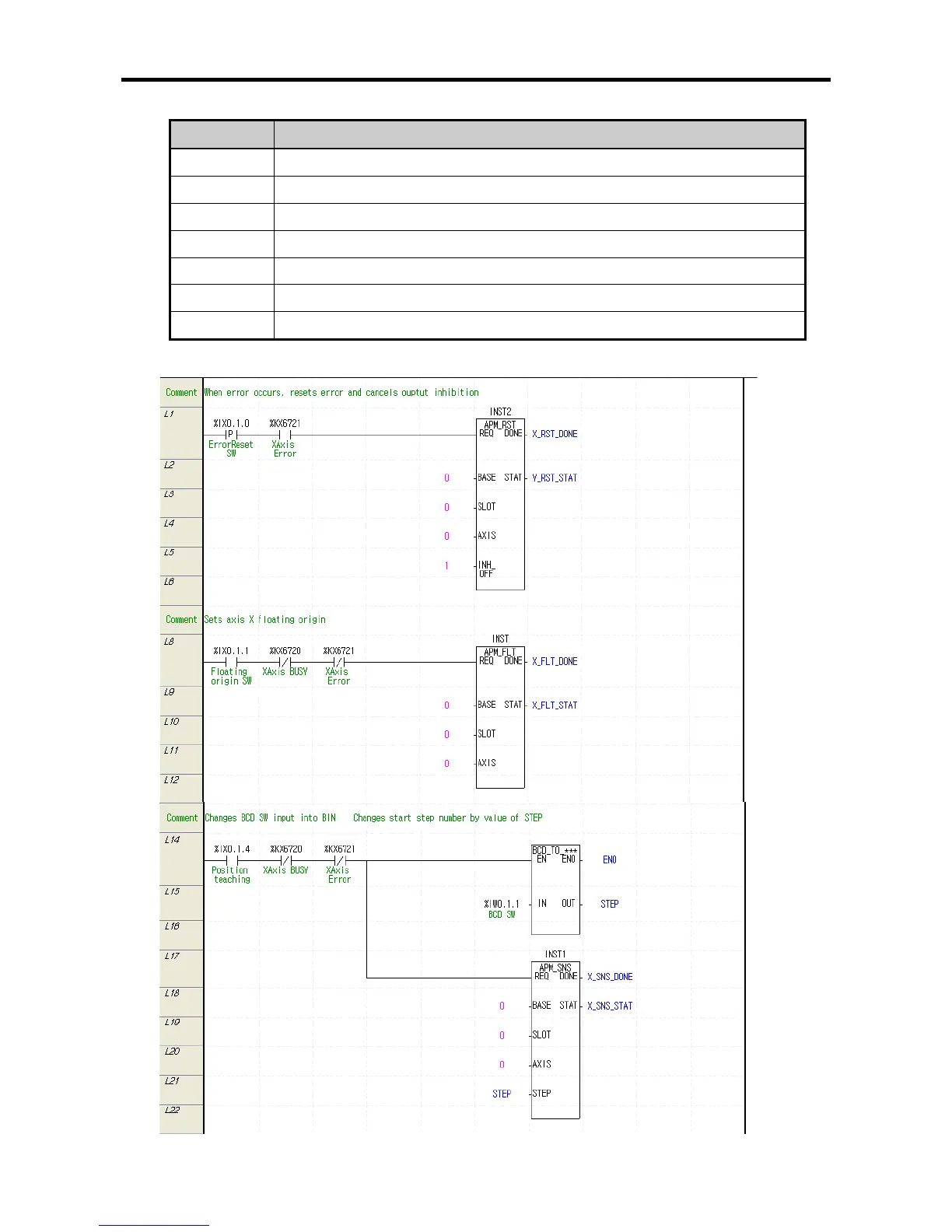

Chapter 7 Program Examples of Positioning
7
-
13
(a) Devices Used
Device
Descrip
tion
P0008
Error reset, output inhibition cancel switch
P0009
floating origin switch
P000C
Operation
step changing switch
P000F
axis X start switch
P000A
Deceleration stop switch of axis X
K4200
Signal during axis X operation
K4201
Error signal of axis X
(2) XEC
216
218
