Figure 2-42 shows a configuration similar to Figure 2-41; however the
SLC
-2000
RT host is at a remote site, not in the wire center. TR08/TR303 grooming is done
by the
SLC
-2000 at the remote location.

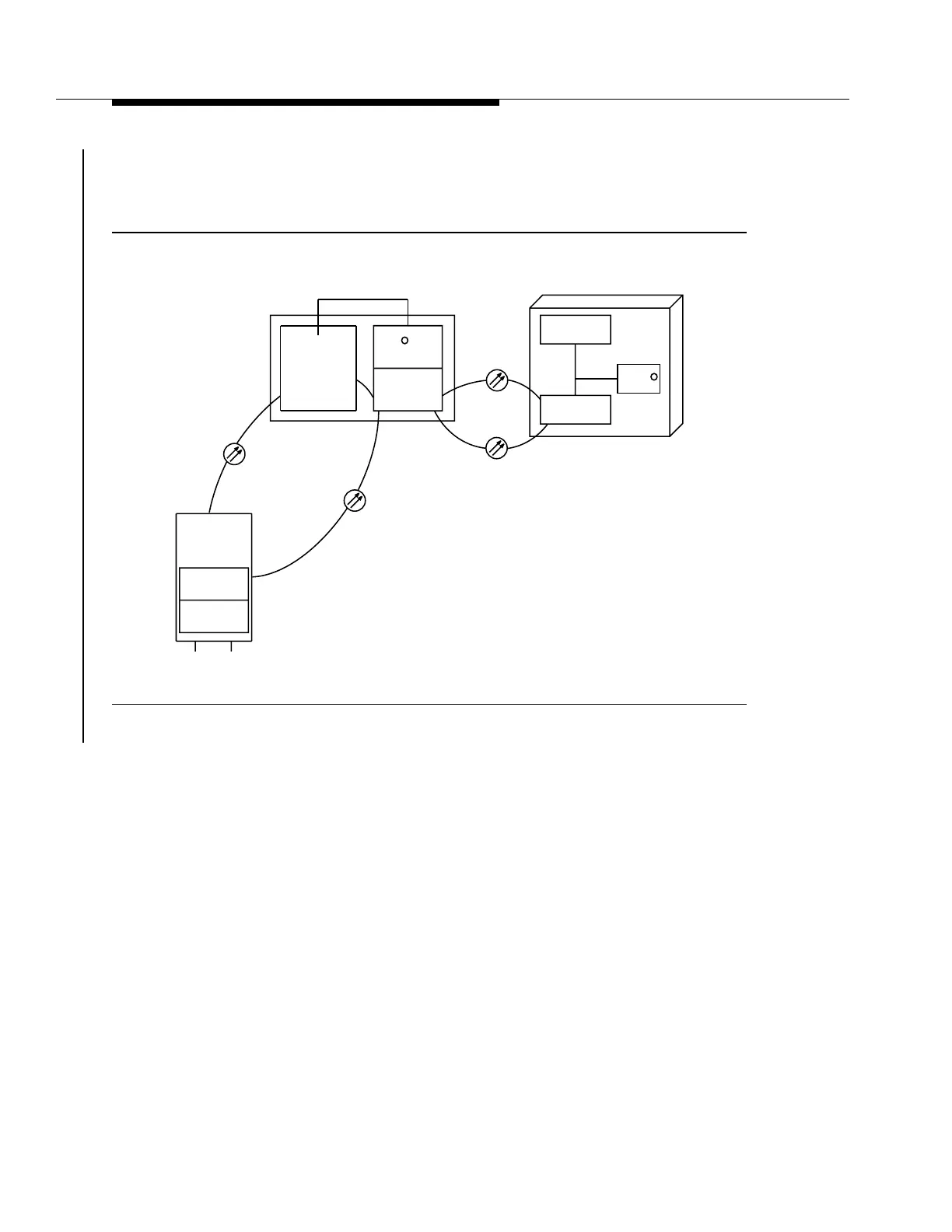

Figure 2-42. DDM-2000 FiberReach Multiplexer Business Narrowband Application with
a Remote SLC-2000
. . .
DDM-2000
FiberReach
WIRE CENTER
DDM-2000
OC-3/OC-12
5ESS
R
SLC
-2000
Wideband
Shelf
Narrowband
Shelf
DS0, DS
DDM-2000
FiberReach
Wideband
Shelf
MDS
SLC
-2000
OC-1
OC-3/OC-12
DACS II
TR-08/
303
DS1s
RT ARM
R
