DLP-508
: Detailed Level Procedure 363-206-305
Page 2 of 4 Issue 3, June 2000
DDM-2000 F
IBER
R
EACH
W
IDEBAND
S
HELF
3.
NOTE:
DS1 line coding may be set using either the option switches or the
set-t1 command. It is recommended that a policy be established to set
line coding using either the switches or the command. If DS1 line code
(lc) parameters are set using the set-t1 command, a software override
will be active and the circuit pack switch settings will have no effect. The
software override will remain active until the set-t1 command is
executed again and the noOverride option is selected. The rtrv-t1
command may be used to check line code settings.
Refer to Table B and Figure 1 and set the line code option switches, if required.
Note:
Switch 1, section 8 (S1-8) is unused and ignored by the system.

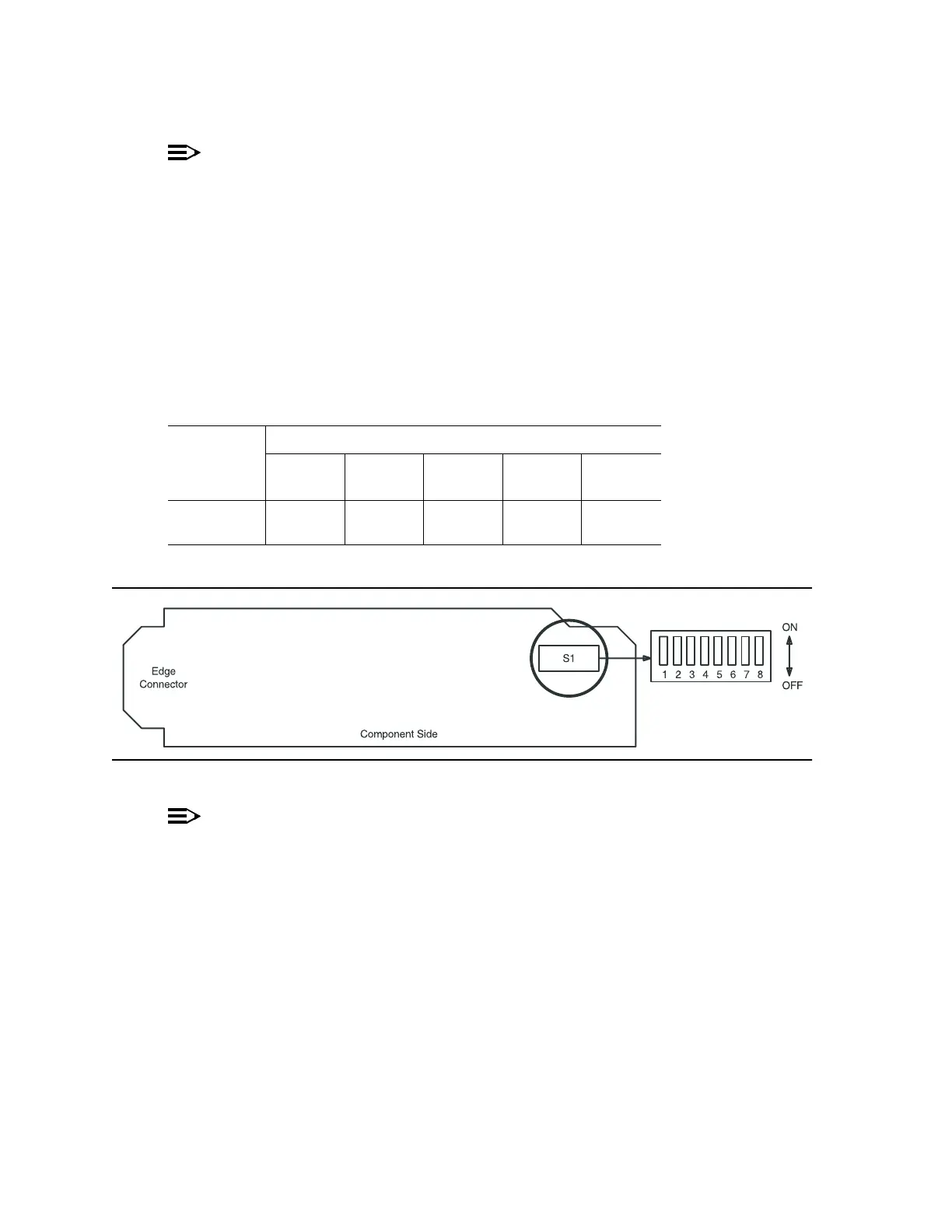

Figure 1. DS1/DS1PM Option Settings
4.
NOTE:
If the response is not correct when the
DS1/DS1PM
circuit pack is
installed, check option switch setting. If settings are correct, replace the
DS1/DS1PM
circuit pack.
Seat
DS1/DS1PM
circuit pack in required slot of
LOW SPEED
group being
equipped.
Response:
FAULT
LED on
DS1/DS1PM
circuit pack lights and may
remain lit for about 40 seconds and then goes off.
5. Repeat this procedure from
Step 1
for each service
DS1/DS1PM
circuit pack
being installed.
Table B – DS1/DS1PM Line Code Settings
Line Code
Format
Switch S1 Settings
S1-4
(Port 1)
S1-5
(Port 2)
S1-6
(Port 3)
S1-7
(Port 4)
S1-8
(Note)
B8ZS OFF OFF OFF OFF
OFF
AMI ONONONON
