MacDon D1X Series - Page 105

215651 91 Revision B

$
%
&
'

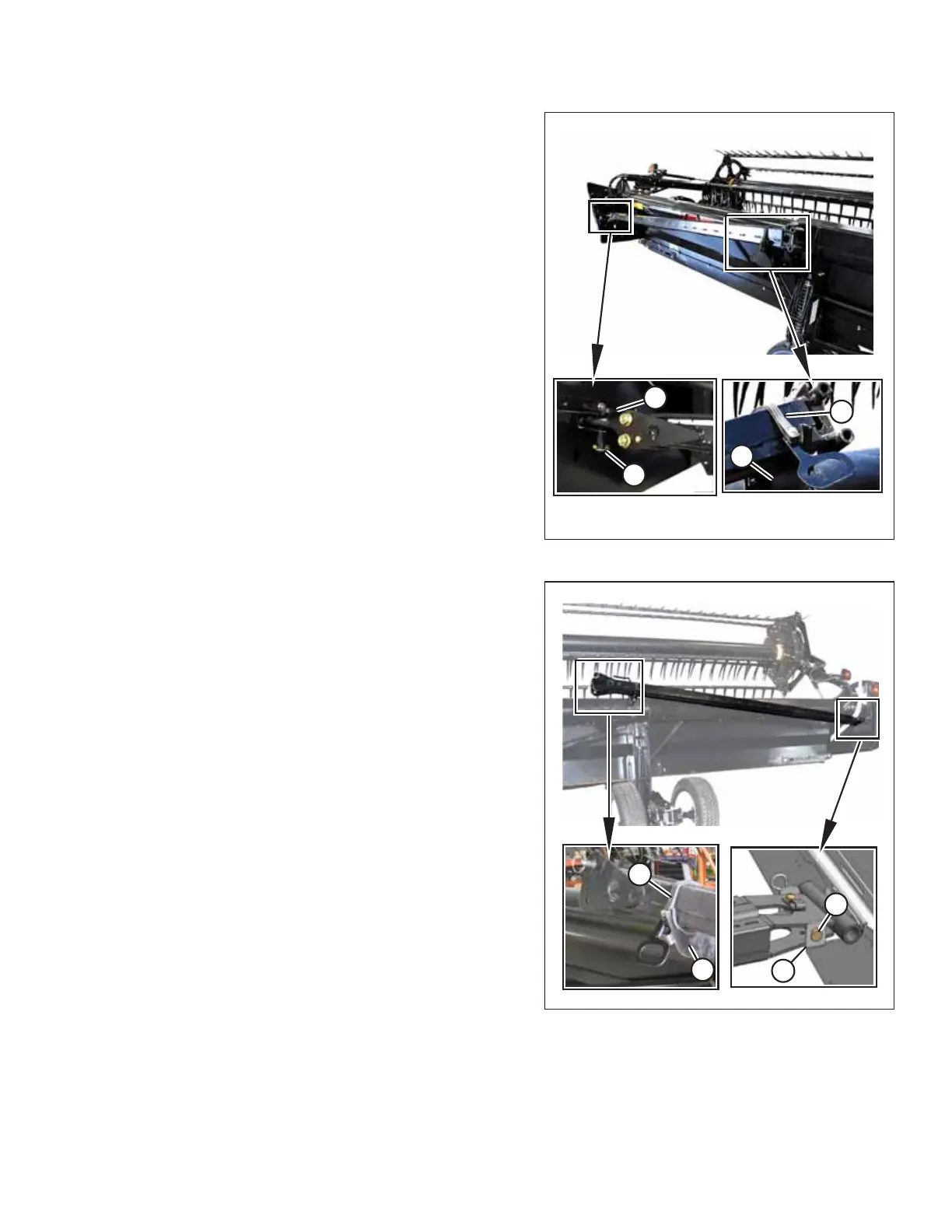

Figure 3.62: Tow-Bar Storage – Left Side
1. Place the inner end of the outer half of the tow-bar into the
cradle (A) on the left side of the header backtube.
2. Secure the clevis/pintle end of the tow-bar in support (B)
on the endsheet using hitch pin (C). Secure with a lynch pin.
3. Install rubber strap (D) on cradle (A).

$
%
&
'
Figure 3.63: 10.7 m and 12.2 m (35 ft. and
40 ft.) Header
4. At the right end of the 10.7 m and 12.2 m (35 ft. and
40 ft.) header:
a. Place the inner end of the inner half of the tow-bar in
cradle (A) on header backtube.
b. Secure tube end in support (B) with clevis pin (C).
Secure with hairpin.
c. Install rubber strap (D) on cradle (A).
OPERATION
