6.4.6 Draper Extension Kit
The draper extension kit increases the inboard length of each deck up to 500 mm (20 in.) which narrows the header
opening and decreases windrow width when cutting light/thin crops.
The kit includes roller support extensions, a draper repair kit, all necessary hardware, and installation instructions.
• D1X Series – MD #B5407
• D1XL Series – MD #B6378
6.4.7 Swath Forming Rods – Center Delivery


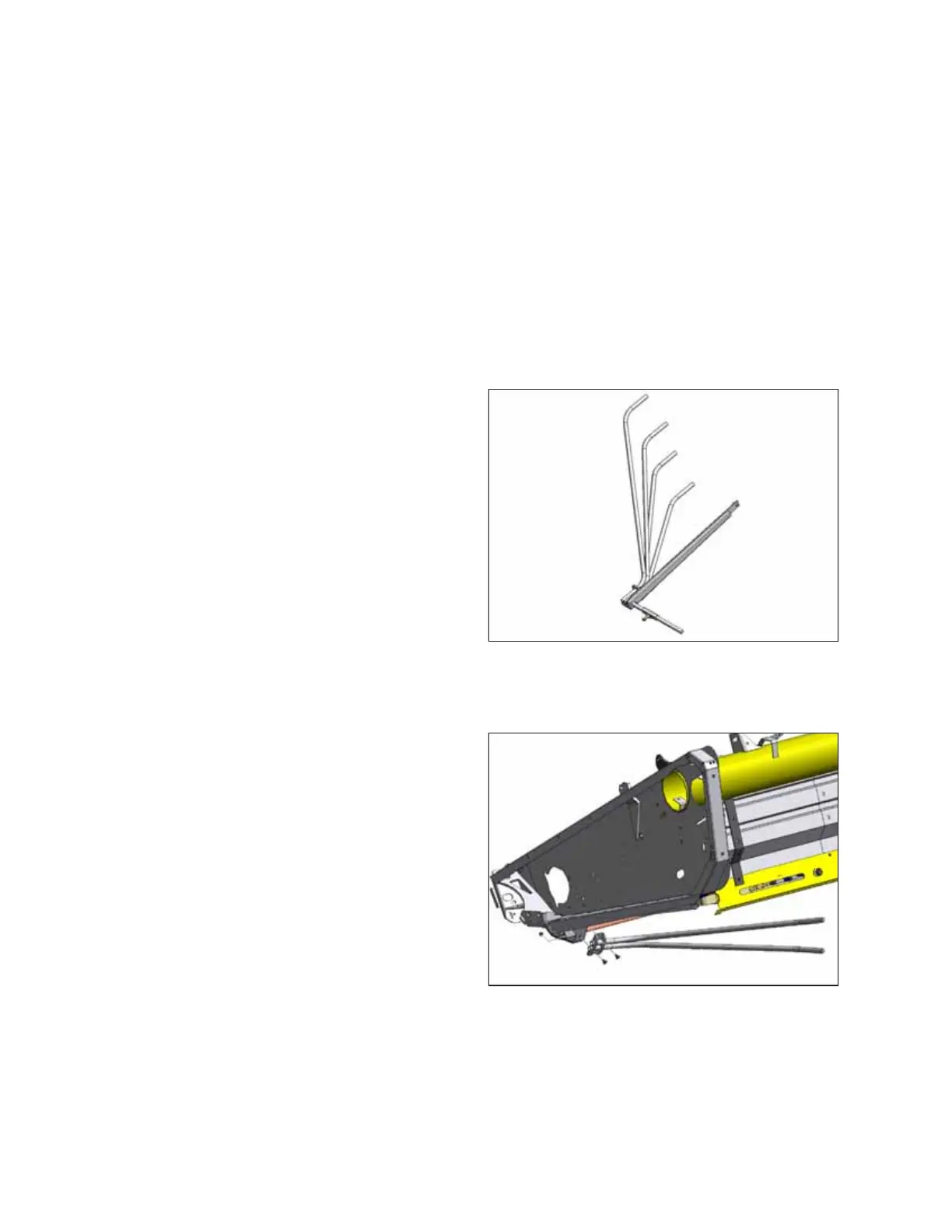

Figure 6.22: Swath Forming Rods
Swath forming rods form windrows so the heads are in the
center and protected from shatter. Swath forming rods are
mainly used for grass seed cutting applications.
Installation and adjustment instructions are included with
the kit.
MD #B4803
6.4.8 Swath Rods

Figure 6.23: Swath Deflector
End delivery deflector rods are used for double swathing with
end delivery only.
The deflector rods help prevent delivered crop at the opening
from interfering with the standing crop.
Installation and adjustment instructions are included in the kit.
Kits are available for installation on the left or the right side of
the header:
• Left side: MD #B5088
• Right side: MD #B5089
For center delivery, order MD #B4803.
