MacDon D1X Series - Tine Tube Reinforcing Kit; Reel Drop Rate Adjuster Kit

215651 245 Revision B
6.1.6 Tine Tube Reinforcing Kit


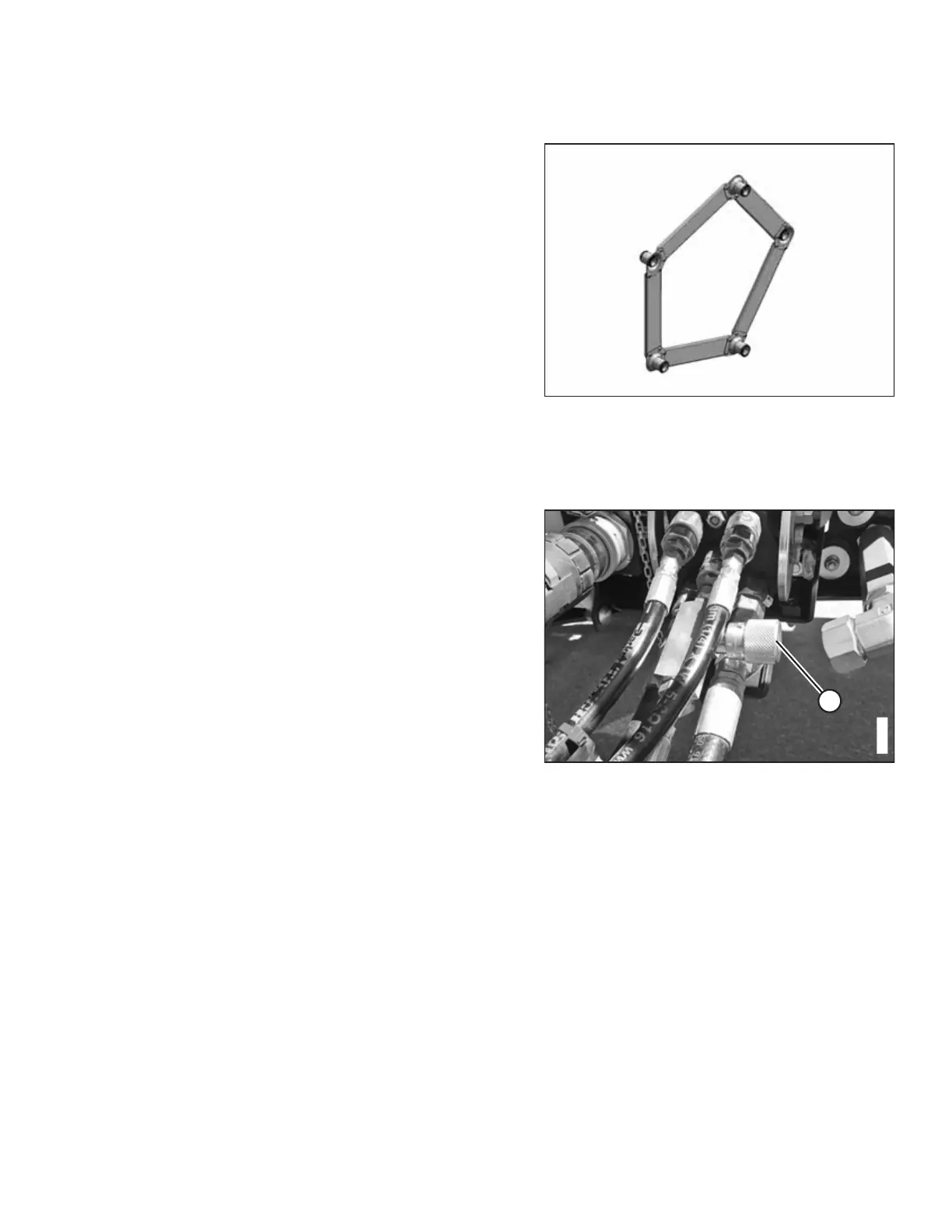

Figure 6.5: Five-Bat Reinforcing Kit Shown – Six-Bat
Reinforcing Kit Similar
Tine tube reinforcing kits are available for five- and six-bat reels.
They are designed to support high reel loads when cutting
extremely heavy crops. Installation instructions are provided in
the kit.
• Five-Bat Reels – MD #B5825
• Six-Bat Reels – MD #B5826
6.1.7 Reel Drop Rate Adjuster Kit

$
Figure 6.6: Draper/Reel Multicoupler
The reel drop rate adjuster kit (A) permits adjustment of the
reel drop rate via a flow control valve that gets installed in the
reel lift circuit. Installation instructions are included in the kit.
See your MacDon Dealer for more information.
MD #306410
OPTIONS AND ATTACHMENTS
