215651 72 Revision B
$
%

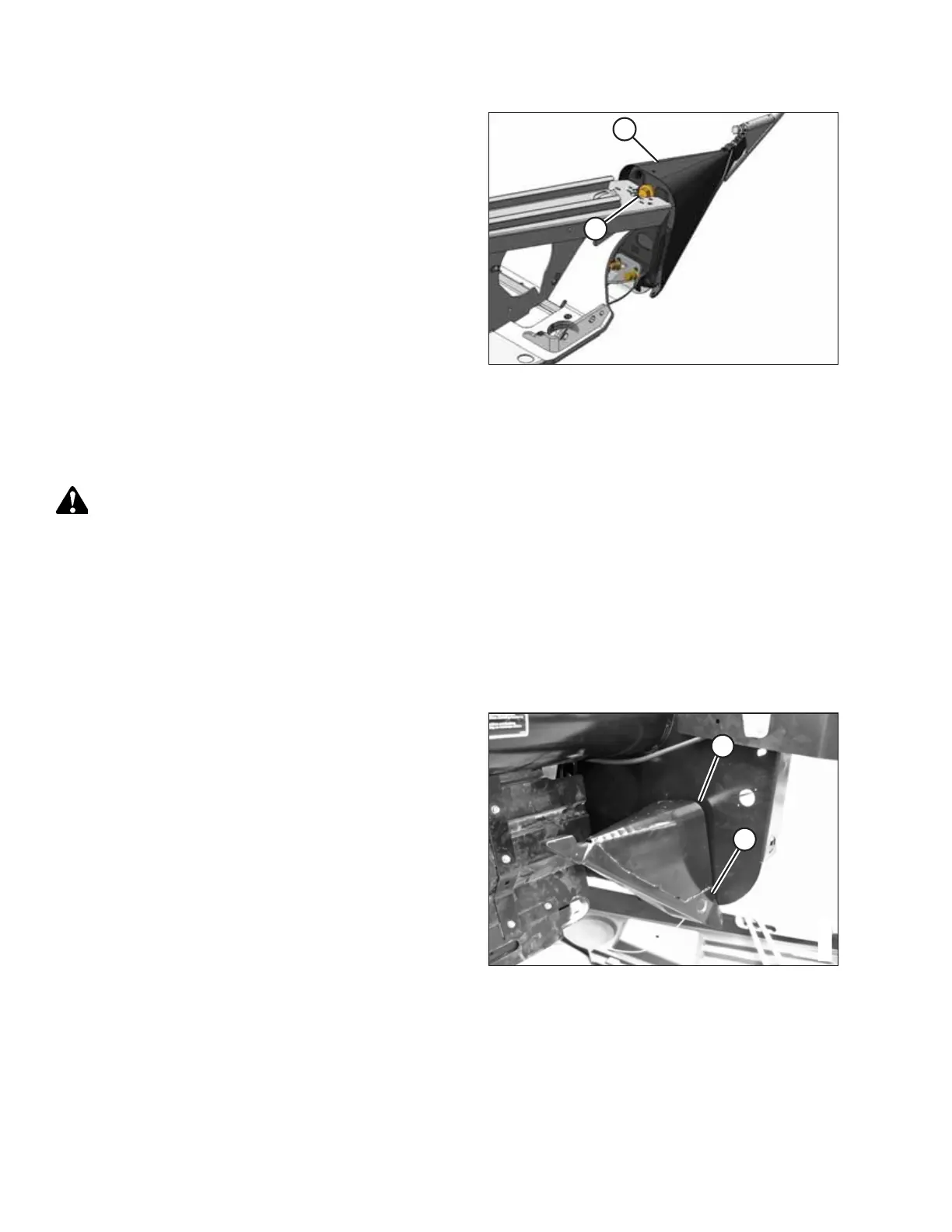

Figure 3.41: Crop Divider
6. Remove bolt (A), the lock washer, and the flat washer.
7. Lower crop divider (B), then lift it to remove it from the
endsheet.
8. Close the endshield. For instructions, refer to Closing
Endshields, page 38 .
Installing Crop Dividers with Latch Option onto Header
To correctly install crop dividers with the latch option, follow the recommended installation procedure provided here.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine,
remove the key, and engage the safety props before going under the header for any reason.
1. Lower the reel fully. For instructions, refer to your windrower operator’s manual.
2. Raise the header fully. For instructions, refer to your windrower operator’s manual.
3. Shut down the engine, and remove the key from the ignition.
4. Engage the safety props. For instructions, refer to your windrower operator’s manual.
5. Open the endshield. For instructions, refer to Opening Endshields, page 37.
%
$
Figure 3.42: Stored Crop Divider
6. If the crop divider is stored on the header, remove the crop
divider from its storage location by lifting the crop divider
to disengage lugs (A) at the lower end. Then lower it slightly
to disengage pin (B) from the endsheet.
