MacDon D1X Series - Installing Reel Drive Cover

215651 226 Revision B

$
%

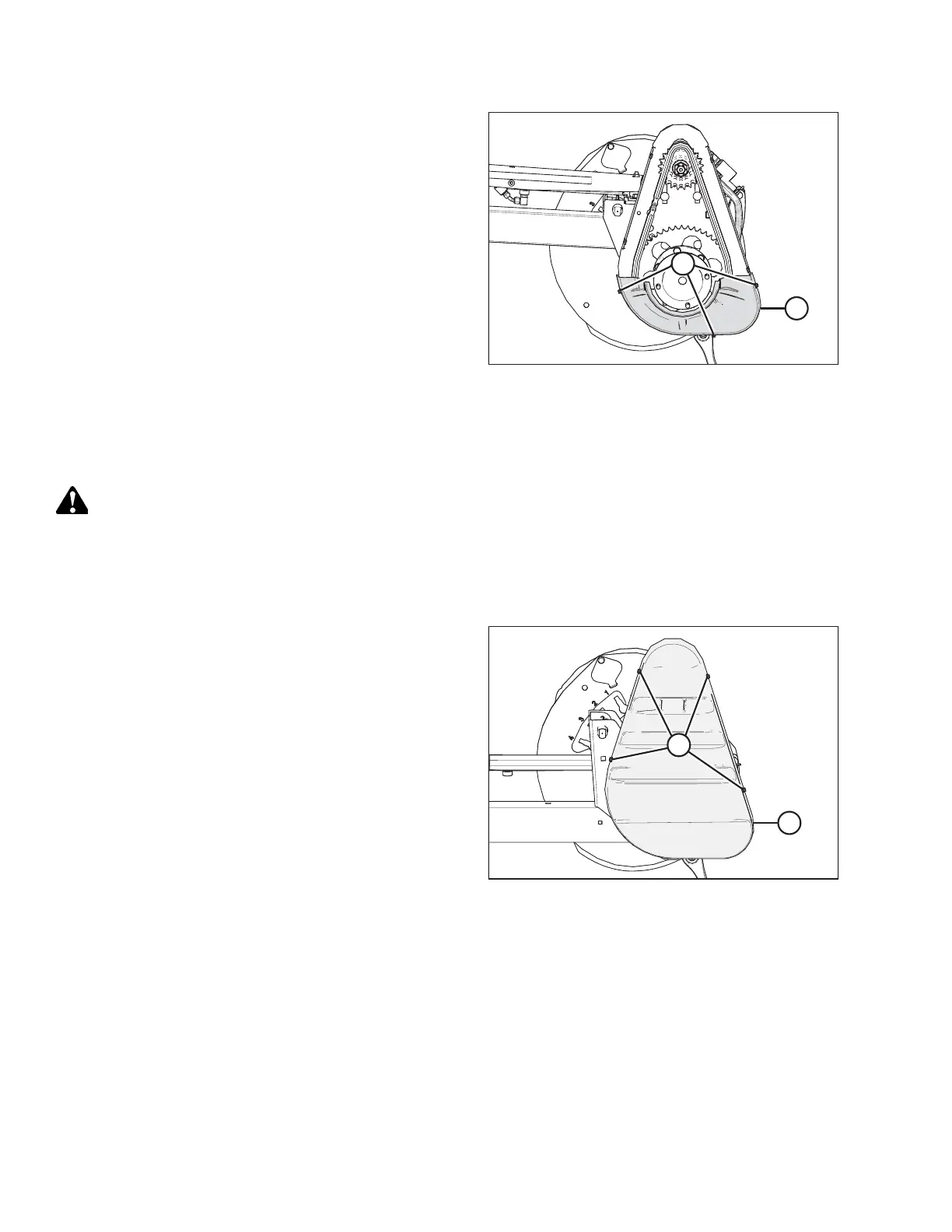

Figure 5.224: Lower Drive Cover
5. Remove three bolts (A) and remove lower cover (B) if
necessary.
Installing Reel Drive Cover
The chain drive is protected by a removable cover.
DANGER
To prevent injury or death from the unexpected start-up of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
Single-reel drive:

$
%
Figure 5.225: Drive Cover – Single Reel
2. Position drive cover (B) onto the reel drive, and secure with
four bolts (A). Torque bolts to 12–13.2 Nm (9–10 lbf·ft).
MAINTENANCE AND SERVICING
