Removing Reel Drive Sprocket
DANGER
To prevent injury or death from the unexpected start-up of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
2. Remove the reel drive cover. For instructions, refer to Removing Reel Drive Cover, page 225.
$
%

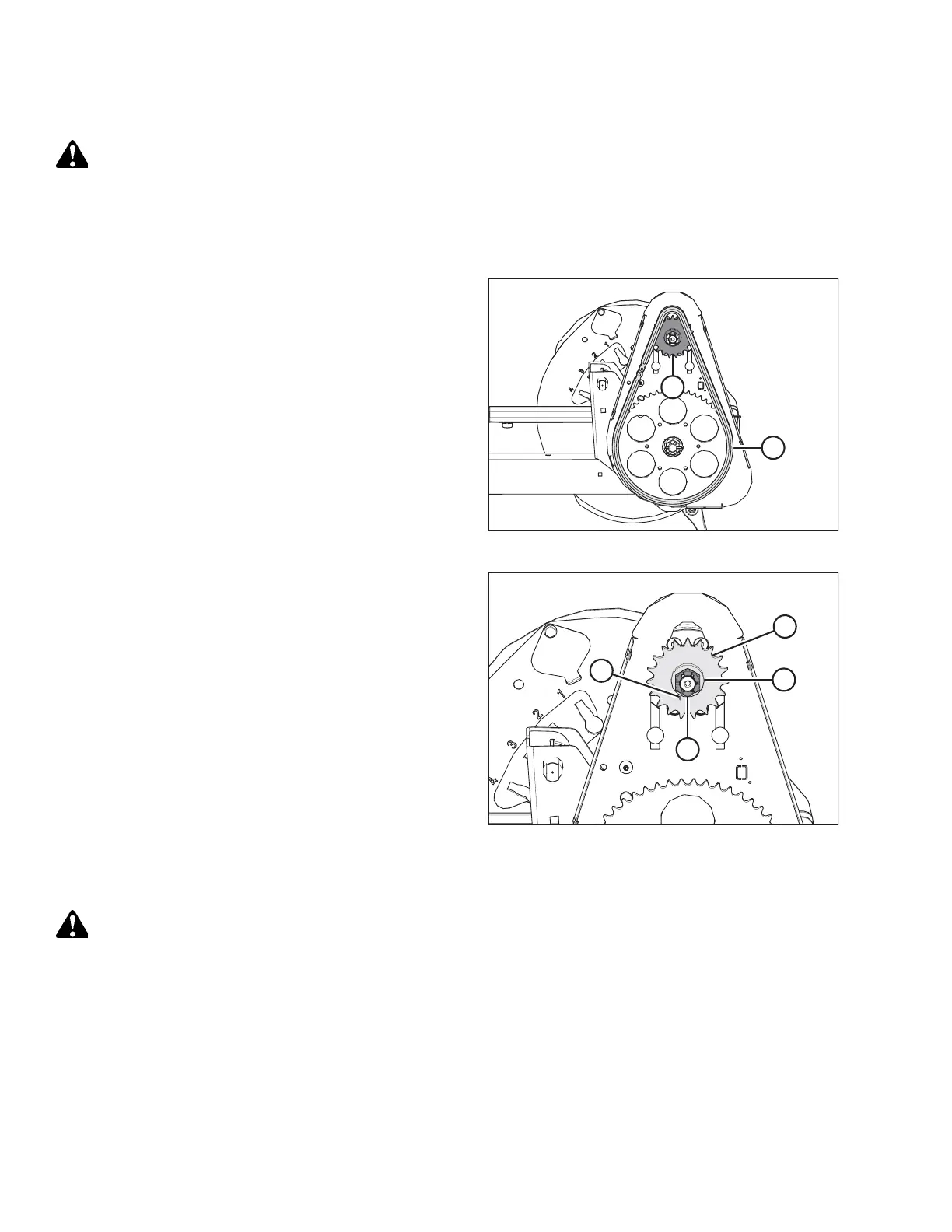

Figure 5.233: Reel Drive Sprocket
3. Loosen reel drive chain (A). For instructions, refer to
Loosening Reel Drive Chain, page 227.
4. Remove reel drive chain (A) from reel drive sprocket (B).
$
%
&
'
Figure 5.234: Reel Drive Sprocket
5. Remove cotter pin (A), slotted nut (B), and flat washer (C)
from the motor shaft.
6. Remove reel drive sprocket (D). Ensure the key remains in
the shaft.
IMPORTANT:
To avoid damaging the motor, use a puller if the drive
sprocket (D) does not come off by hand. Do NOT use a pry
bar and/or hammer to remove the drive sprocket.
Installing Reel Drive Sprocket
DANGER
To prevent injury or death from the unexpected start-up of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
