MacDon D1X Series - Storing Tow-Bar

215651 90 Revision B

$
%
&

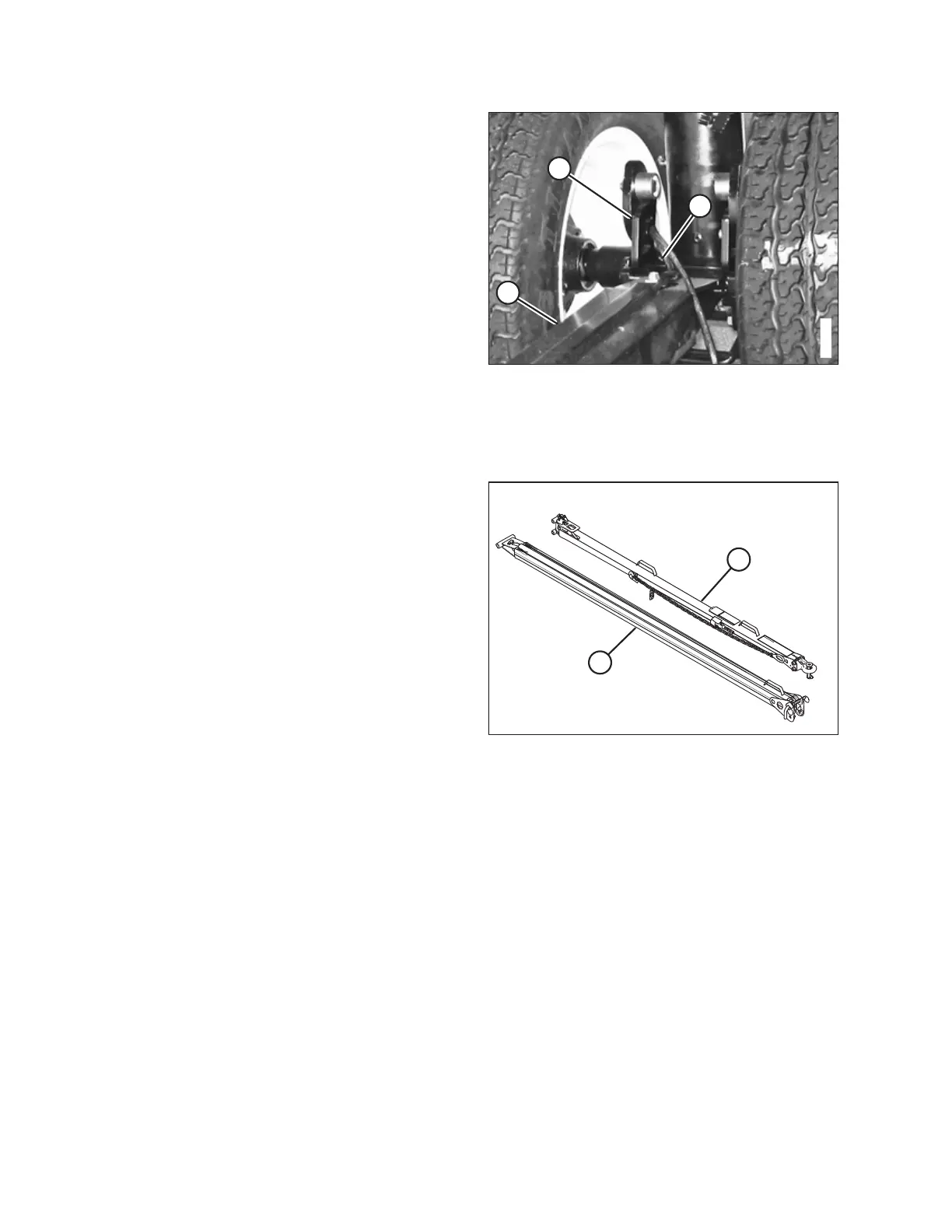

Figure 3.60: Tow-Bar Latch
6. Remove clevis pin (A) and set aside for reinstallation.
7. Push latch (B) and lift tow-bar (C) from the hook.
Release latch.
8. Install clevis pin (A).
Storing Tow-Bar
Perform the following procedure to store the tow-bar.

$
%
Figure 3.61: Tow-Bar Assembly
The tow-bar consists of two sections, an inner half (A) and an
outer half (B); this makes storage and handling easier.
OPERATION
