6.2.3 Rock Retarder

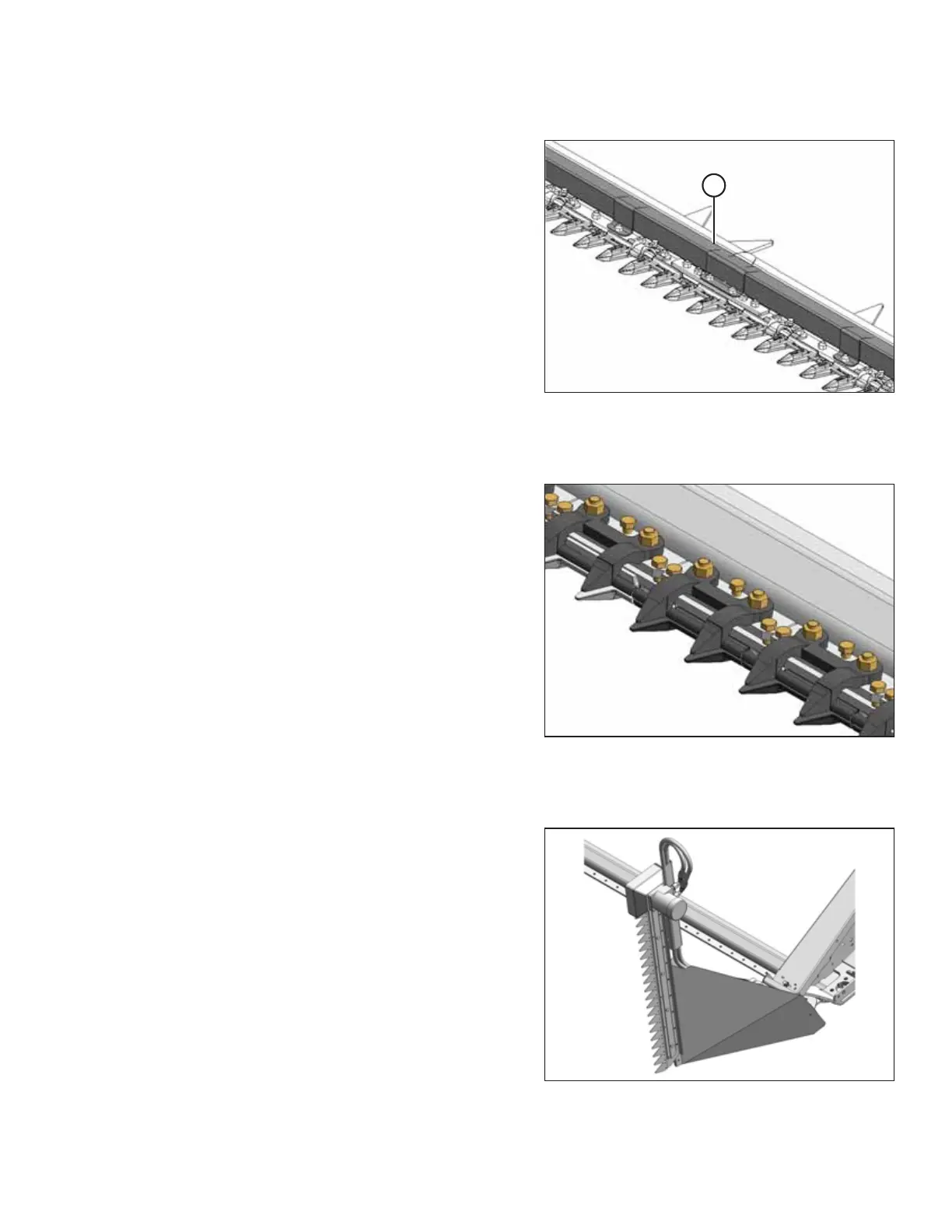

Figure 6.9: Rock Retarder
Rock retarder (A) consists of a steel angle that is bolted to the
cutterbar immediately aft of the knife, and helps prevent rocks
and large debris from being swept onto the drapers with the
crop. Installation instructions are included with the kit.
Order bundles by header size:
• D125X – MD #B5084
• D130XL and D135XL – MD #B5084
• D140XL and D145XL – MD #B5085
6.2.4 Stub Guard Conversion Kit
Figure 6.10: Stub Guards
Stub guards, complete with top guides and adjuster shoes, are
designed to cut tough crops.
Installation and adjustment instructions are included in the kits.
Order one of the following bundles according to your
header size:
• 4.6 m (15 ft.) – MD #B5009
• 6.1 m (20 ft.) – MD #B5010
• 7.6 m (25 ft.) – MD #B5011
• 9.1 m (30 ft.) – MD #B5012
• 10.7 m (35 ft.) – MD #B5013
6.2.5 Vertical Knife Mounts
Figure 6.11: Vertical Knife Mount
The vertical knife mounts allow the installation of vertically
oriented knives onto both ends of the header.
The vertical knives themselves are not sold by MacDon and
must be purchased from a separate supplier.
Installation and adjustment instructions are included in the kits.
Order mount kits based on whether they will be installed on the
left or right side of the header:
NOTE:
While the Right Vertical Knife Mount kit can be installed
independently of the Left Vertical Knife Mount kit, the Left
Vertical Knife Mount kit must be installed with the Right Vertical
Knife Mount kit.
