215651 206 Revision B
Installing Steel Fingers
DANGER
To prevent injury or death from the unexpected start-up of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
WARNING
To prevent bodily injury from the fall of a raised reel, always engage the reel safety props before going under the
raised reel for any reason.
IMPORTANT:
Ensure the tine tube is supported at all times to prevent damage to the tube and other components.
NOTE:
This procedure assumes a finger has been removed from the machine. For instructions about removing fingers, refer to
Removing Steel Fingers, page 205.
$
%

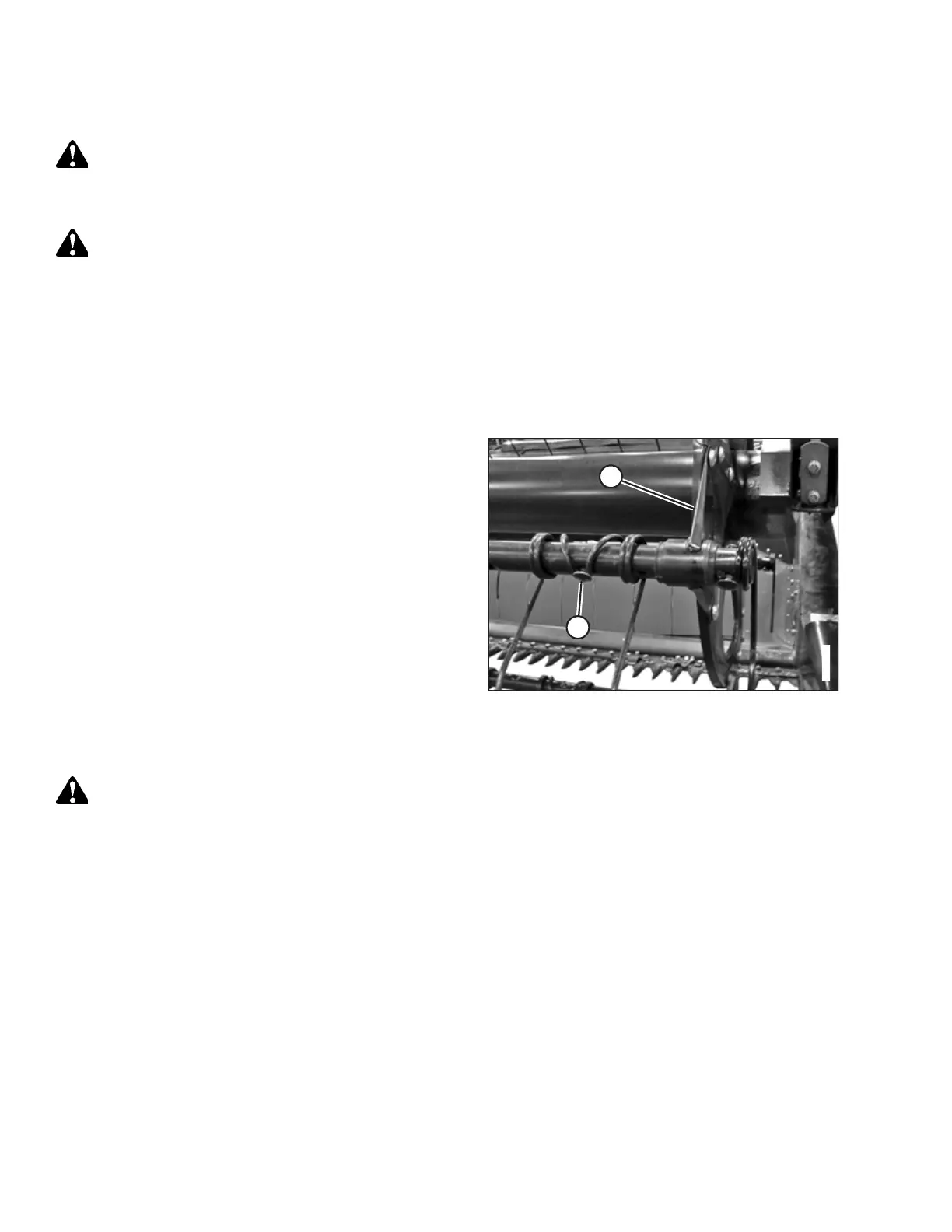

Figure 5.175: Tine Tube
1. Slide the new finger and tine tube arm (A) onto the end of
the tube.
2. Install the tine tube bushings. For instructions, refer to
Installing Bushings onto Reels, page 214.
3. Attach the fingers to the tine tube with bolts and nuts (B).
Removing Plastic Fingers
WARNING
To prevent bodily injury from the fall of a raised reel, always engage the reel safety props before going under the
raised reel for any reason.
1. Lower the header fully.
2. Raise the reel fully.
3. Shut down the engine, and remove the key from the ignition.
4. Engage the reel safety props. For instructions, refer to Engaging Reel Safety Props, page 35.
MAINTENANCE AND SERVICING
