5.9 Reel Drive
The hydraulically driven reel motor drives a chain that is attached to the center arm between the reels on a double-reel
header, and to the right end of the reel on a single-reel header.
5.9.1 Reel Drive Cover
The reel drive cover protects the reel drive components from dirt and debris.
Removing Reel Drive Cover
The chain drive is protected by a removable cover.
DANGER
To prevent injury or death from the unexpected start-up of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
Single-reel drive:

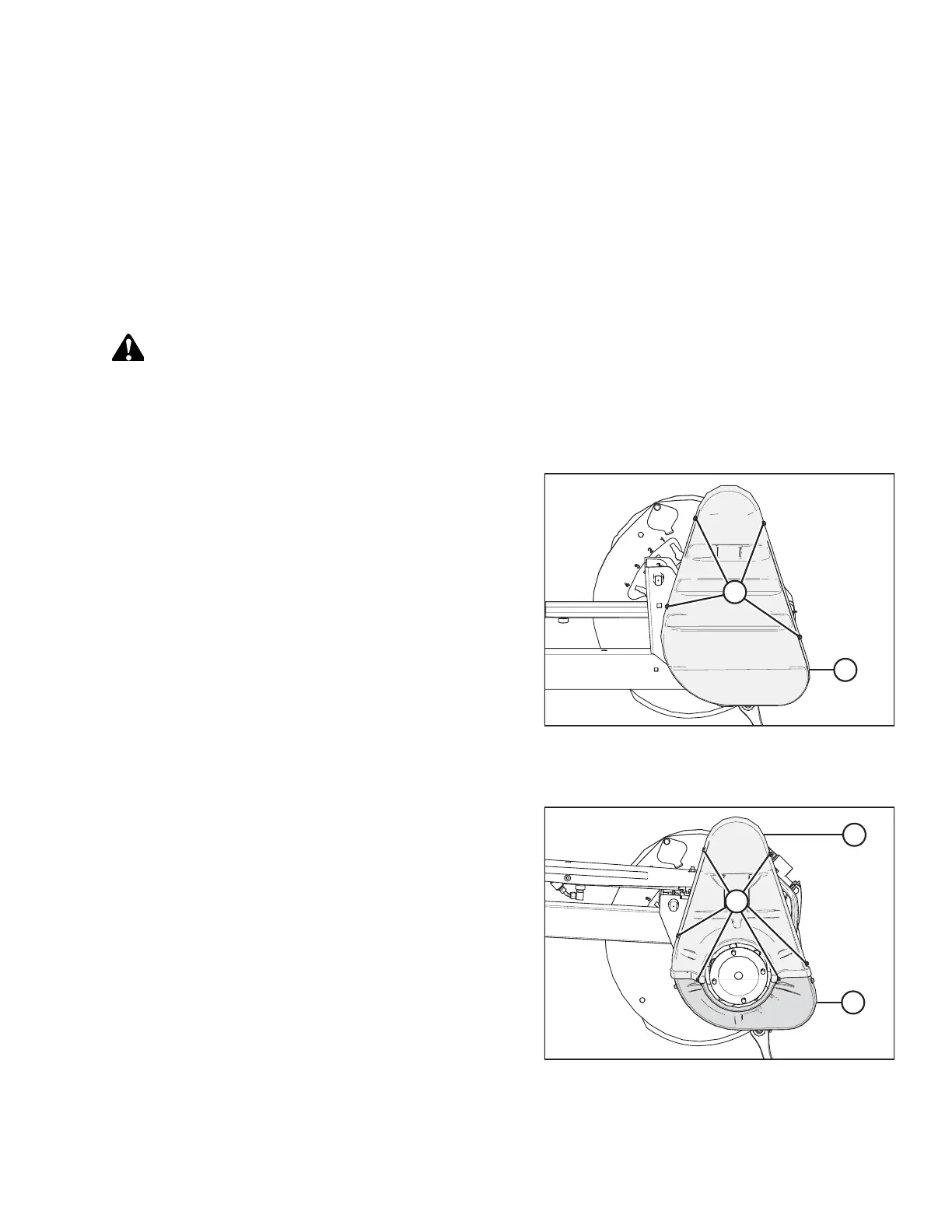

Figure 5.222: Drive Cover – Single Reel
2. Remove four bolts (A) securing cover (B) to the reel drive.
Double-reel drive:
Figure 5.223: Drive Cover – Double Reel
3. Remove six bolts (A) securing upper cover (B) to the reel
drive and lower cover (C).
4. Remove upper cover (B).
