215651 224 Revision B
$
%
$
&
'
(
(

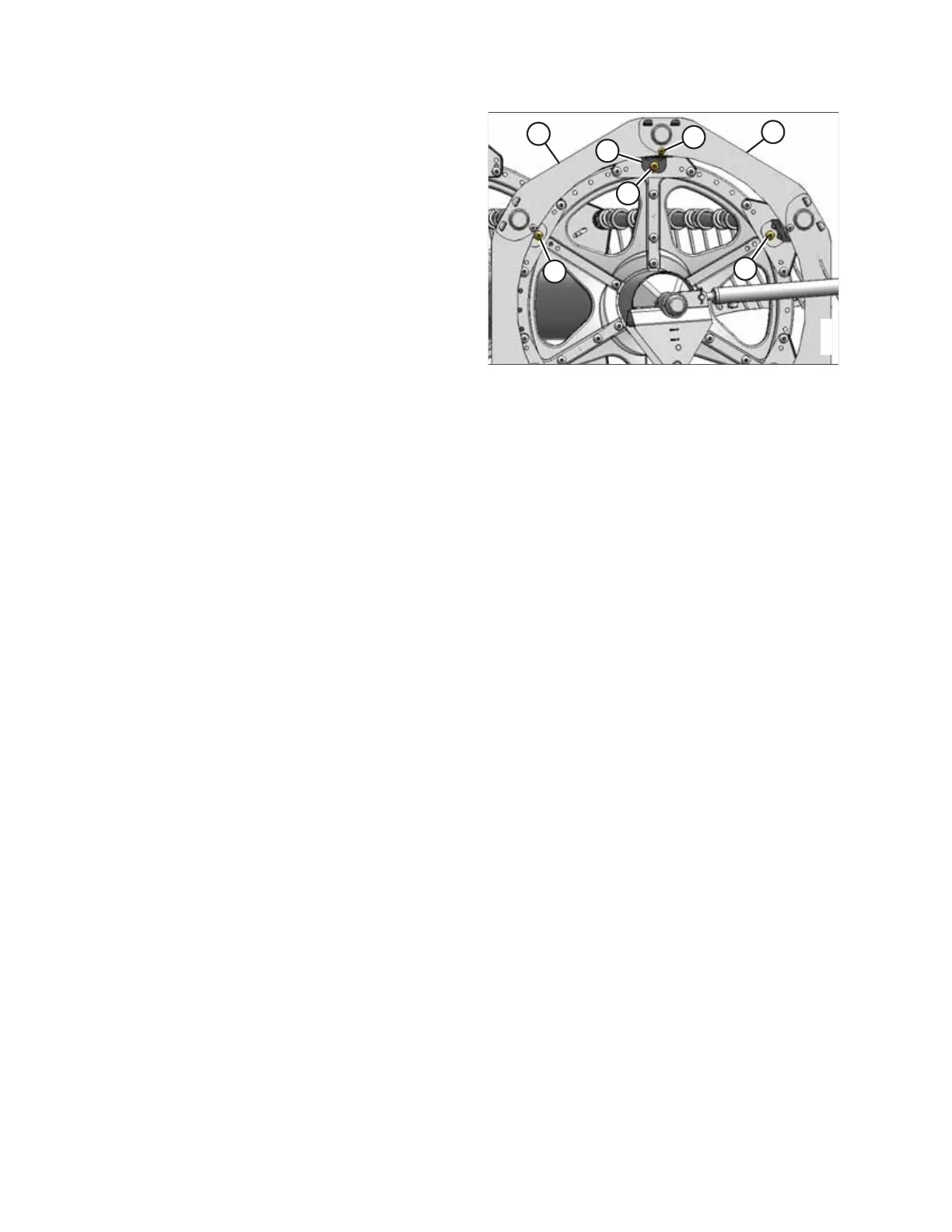

Figure 5.221: Reel Endshield Supports
7. Move reel endshields (A) away from the tine tube and
rotate support (B) towards the reel to remove it.
8. Insert tabs of new support (B) into the slots in reel
endshields (A). Ensure the tabs engage both reel
endshields.
9. Secure support (B) to the disc sector with bolt (C) and nut.
Do NOT tighten.
10. Secure reel endshields (A) to support (B) with bolt (D) and
nut. Do NOT tighten.
11. Reattach the supports with bolts (E) and nuts.
12. Check the clearance between the tine tube and reel
endshield support and adjust if necessary.
13. Torque nuts to 27 Nm (20 lbf·ft).
MAINTENANCE AND SERVICING
