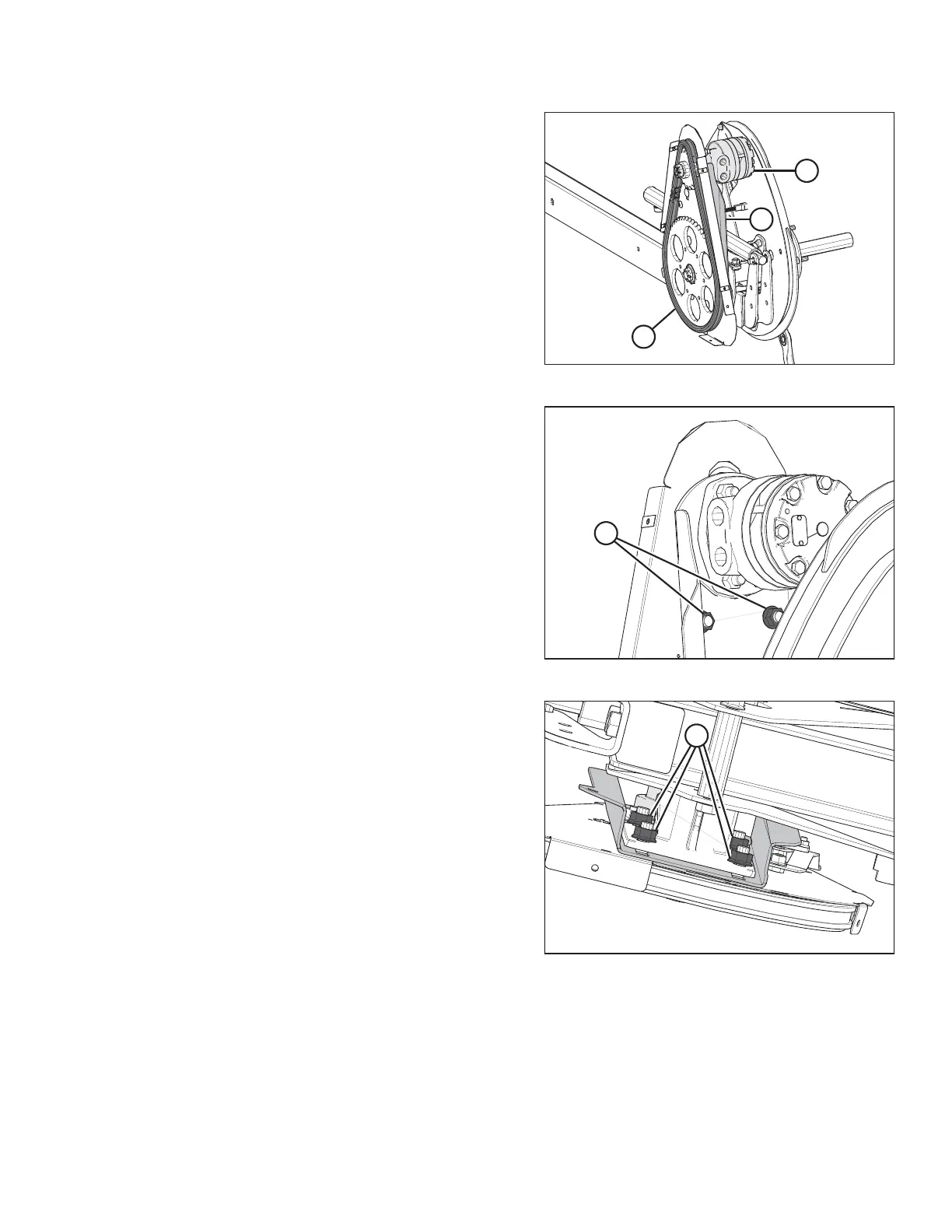

Figure 5.230: Single-Reel Drive – Double Reel Similar
5. Slide motor (A) and motor mount (B) upward until chain (C)
is tight.
6. Ensure there is 3 mm (1/8 in.) of slack at the chain
midspan. Adjust if necessary.

$
Figure 5.231: Single-Reel Drive – Double Reel Similar
7. Tighten six nuts (A). Torque to 73 Nm (54 lbf∙ft).
8. Install the drive cover. For instructions, refer to Installing
Reel Drive Cover, page 226.

$
Figure 5.232: Single-Reel Drive – Viewed from
Underside of Reel
5.9.3 Reel Drive Sprocket
The reel drive sprocket is attached to the reel drive motor.
For Case IH and New Holland combine models, configure the combine according to the reel sprocket size in order to
optimize the auto reel to ground speed control. Refer to the combine service manual for more information.
