MacDon D1X Series - Dimensions

215651 31 Revision B
2.4 Dimensions
Here is a list of dimensions for D1X and D1XL windrower-configured headers.
The following symbol and letters are used in the table below:
S: standard / O
F
: optional (factory installed) / O
D
: optional (dealer installed) / –: not available

$
%
&

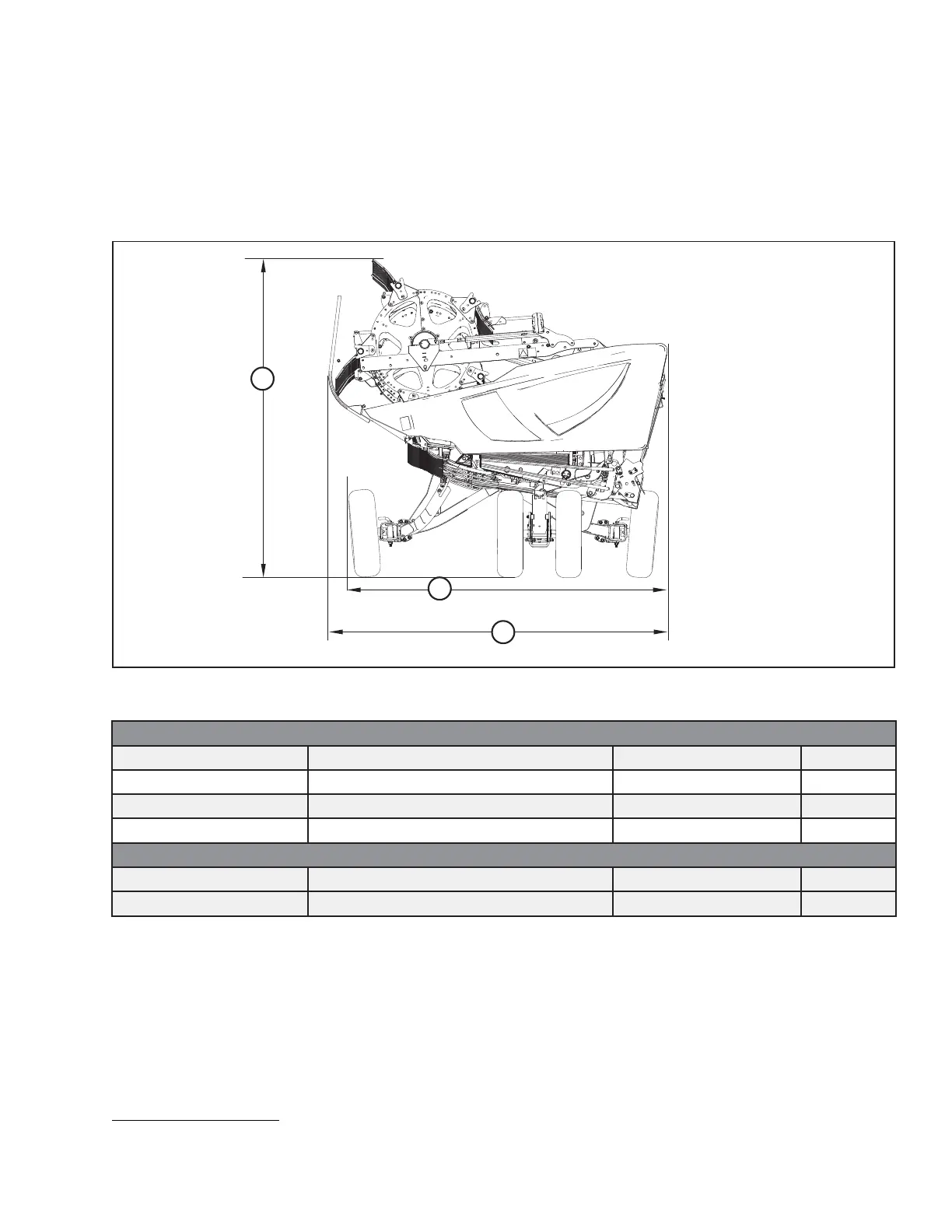

Figure 2.2: Header Width
Table 2.4 Header Dimensions
Header Width (Transport Mode, Reel Fore-Aft Fully Retracted)
D1XL Series headers
(B)
2
(long dividers installed)
2845 mm (112 in.)
S
D1XL Series headers
(A)
2
(long dividers removed)
2667 mm (105 in.)
S
D1X Series headers
(B)
2
(long dividers installed)
2636 mm (104 in.)
S
D1X Series headers
(A)
2
(long dividers removed)
2452 mm (97 in.)
S
Header Height (Transport Mode, Reel Fore-Aft Fully Retracted)
D1X Series headers
(C)
2
(long dividers installed)
2460 mm (97 in.)
S
D1XL Series headers
(C)
2
(long dividers installed)
2460 mm (97 in.)
S
PRODUCT OVERVIEW
2. Refer to Figure 2.2, page 31.
