MacDon D1X Series - Removing Crop Dividers Without Latch Option from Header

215651 71 Revision B

$
%
&

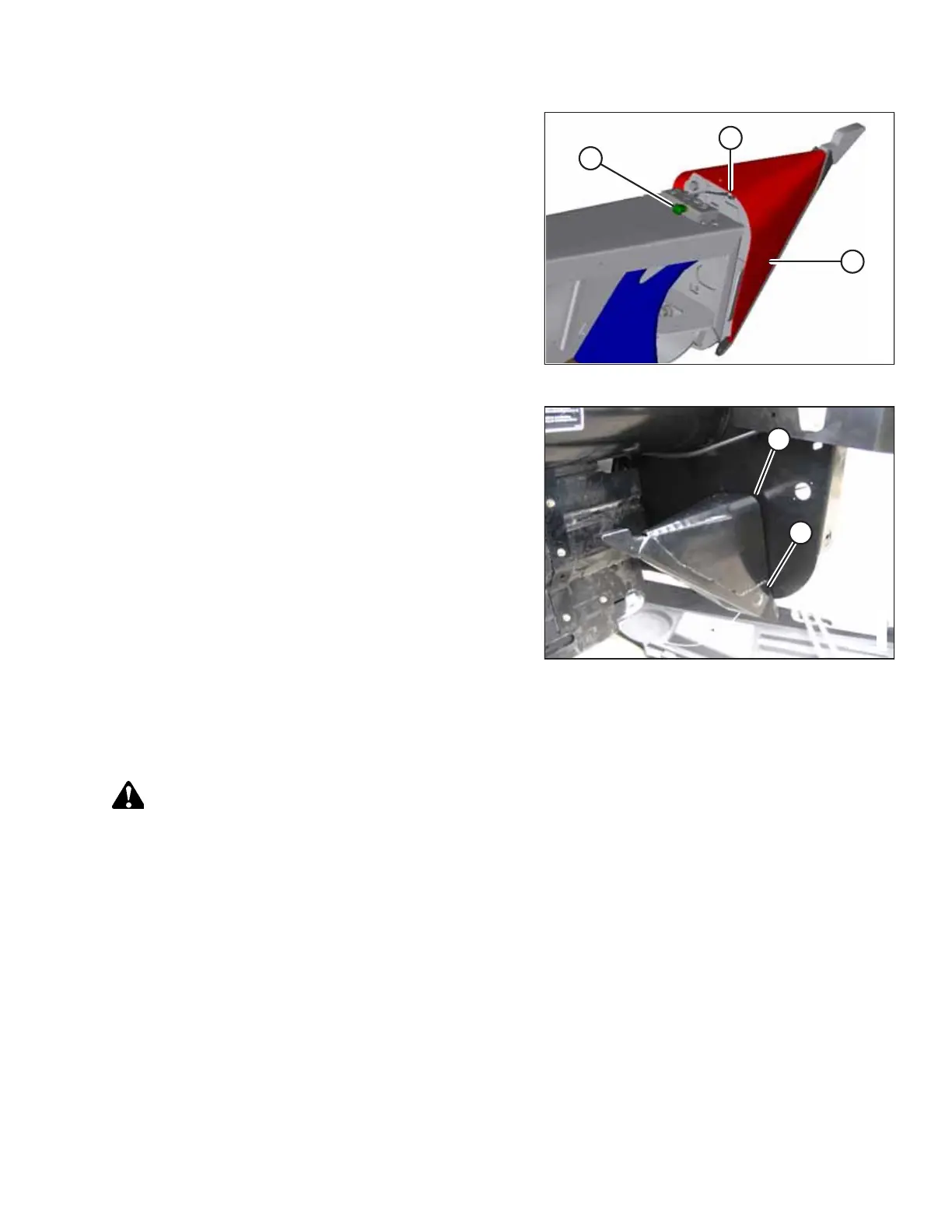

Figure 3.39: Crop Divider
6. Lift safety lever (A).
7. Hold onto crop divider (B), push lever (C) to open the latch,
and lower the crop divider.

$
%
Figure 3.40: Stored Crop Divider
8. Lift the crop divider off of the endsheet and store it as
follows:
a. Insert pin (A) on the crop divider into the hole in the
endsheet at the location shown.
b. Lift the crop divider and position lugs (B) on the crop
divider into the bracket on endsheet. Ensure the lugs
engage the bracket.
9. Close the endshield. For instructions, refer to Closing
Endshields, page 38 .
Removing Crop Dividers without Latch Option from Header
To correctly remove crop dividers without the latch option, follow the recommended removal procedure provided here.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine,
remove the key, and engage the safety props before going under the header for any reason.
1. Lower the reel fully. For instructions, refer to your windrower operator’s manual.
2. Raise the header fully. For instructions, refer to your windrower operator’s manual.
3. Shut down the engine, and remove the key from the ignition.
4. Engage the safety props. For instructions, refer to your windrower operator’s manual.
5. Open the endshield. For instructions, refer to Opening Endshields, page 37 .
OPERATION
