5.9.5 Reel Drive Motor
The reel drive motor is used on the reel drive system on double-reel draper headers. This motor does not require regular
maintenance or servicing. If problems occur with the motor, remove it and have it serviced by your MacDon Dealer.
Removing Reel Drive Motor
To remove the reel drive motor, follow the recommended removal procedure provided here.
DANGER
To prevent injury or death from the unexpected start-up of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
2. Loosen the drive chain. For instructions, refer to Loosening Reel Drive Chain, page 227.
3. Remove the drive sprocket. For instructions, refer to Removing Reel Drive Sprocket, page 230.
$
%
&
&

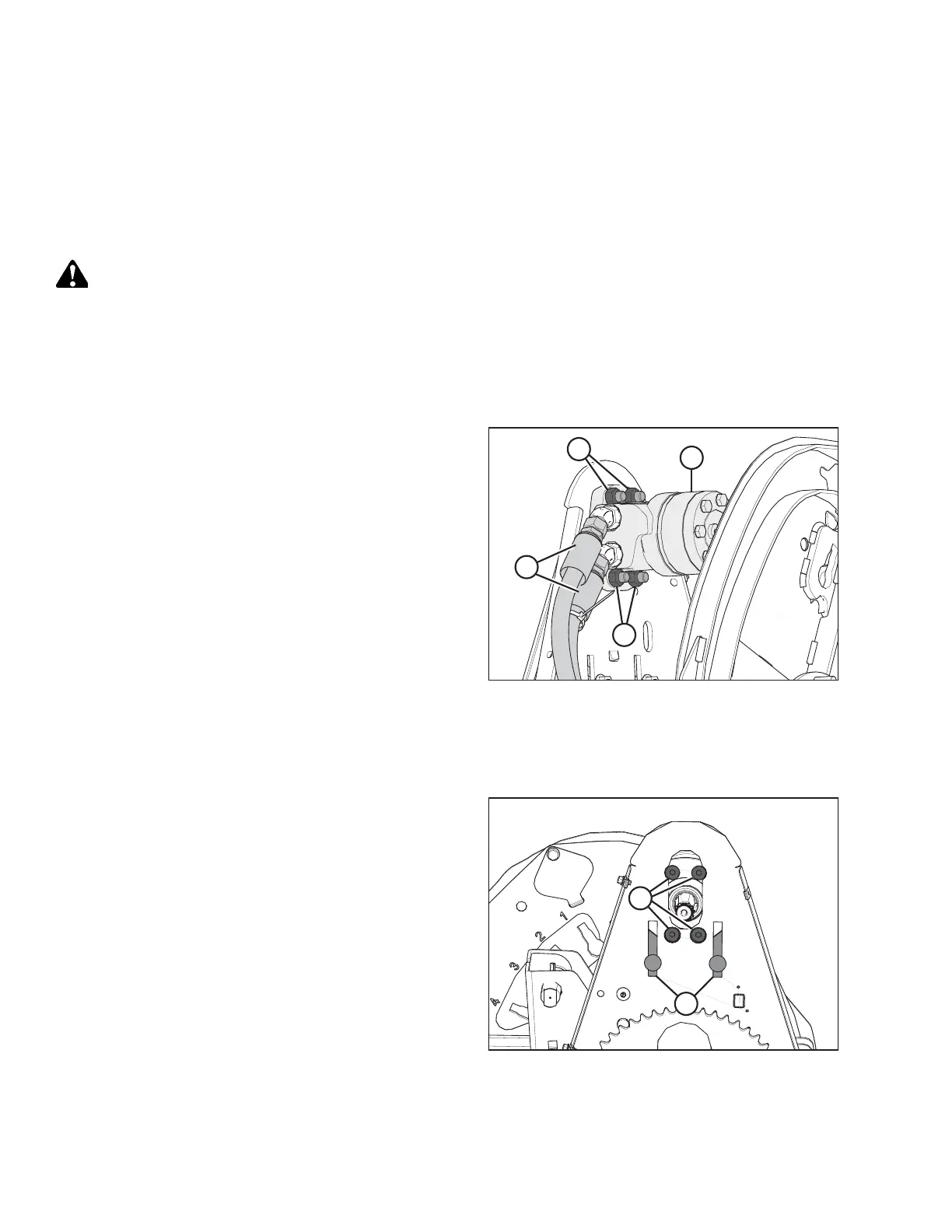

Figure 5.243: Reel Motor and Hoses
4. Mark hydraulic lines (A) and their connections on motor (B)
to ensure correct reinstallation.
NOTE:
Before disconnecting the hydraulic lines, clean the motor’s
ports and exterior surfaces.
5. Disconnect hydraulic lines (A) at motor (B). Cap or plug
open ports and lines.
6. Remove four nuts and bolts (C), and remove motor (B).
Retrieve the spacer (if installed) from between motor (B)
and the motor mount.
7. If the motor is being replaced, remove the hydraulic fittings
from the old motor and install them in the new motor using
the same orientations.
Installing Reel Drive Motor
To install the reel drive motor, follow the recommended installation procedure provided here.
%
$
Figure 5.244: Reel Drive Motor Mounting Holes
1. Slide motor mount (A) up or down so the motor mounting
holes (B) are accessible through the openings in the
chain case.
