215651 235 Revision B

$
%
&

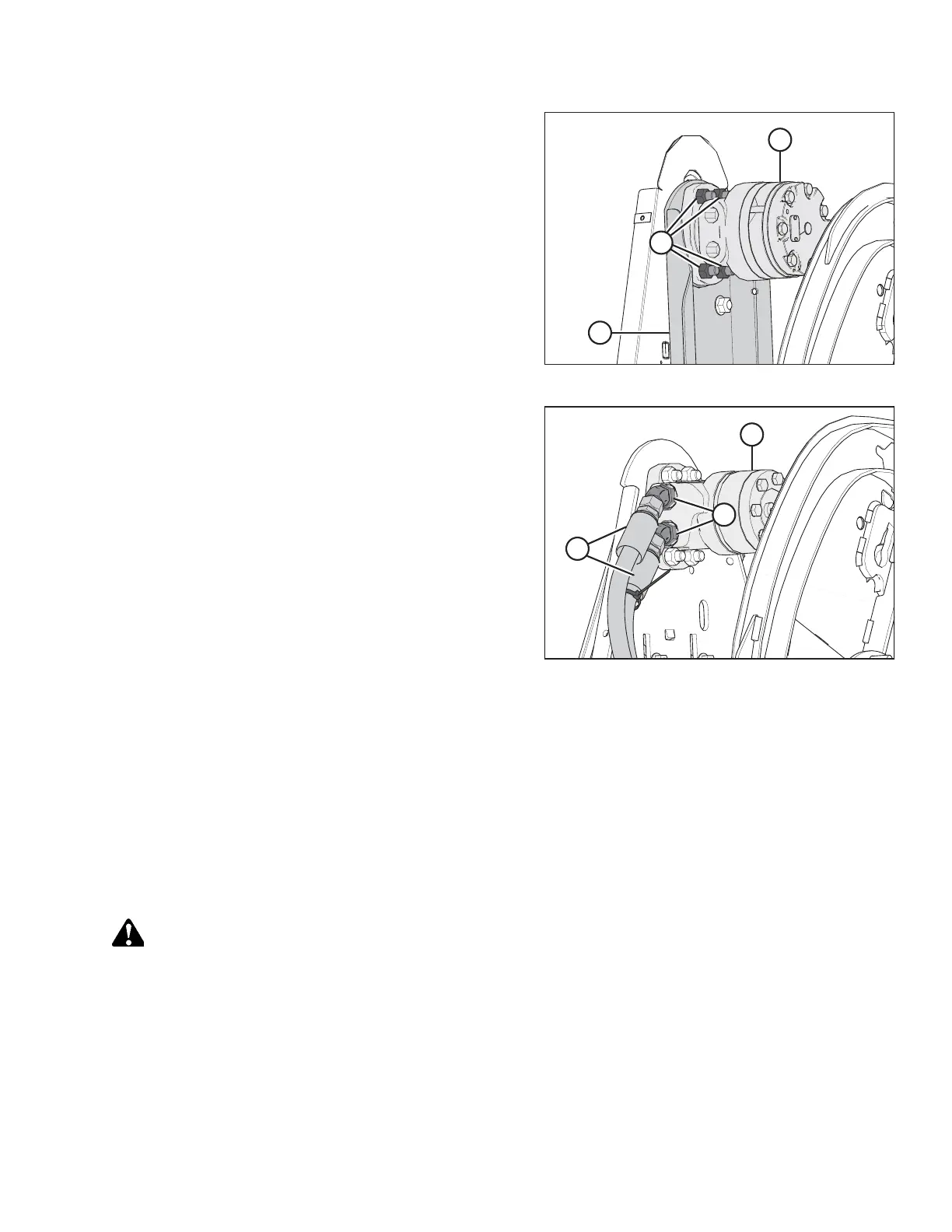

Figure 5.245: Reel Drive Motor
2. Attach motor (A) (and spacer if previously removed) to
motor mount (B) with four 1/2 x 1 3/4 in. countersunk bolts
and nuts (C).
3. If installing a new motor, install the hydraulic fittings (not
shown) from the original motor.

%
&
$
Figure 5.246: Reel Motor and Hoses
4. Remove the caps or plugs from the ports and lines and
connect hydraulic lines (A) to hydraulic fittings (B) on
motor (C).
NOTE:
Ensure hydraulic lines (A) are installed in their original
locations.
5. Install the drive sprocket. For instructions, refer to
Installing Reel Drive Sprocket, page 230.
6. Tighten the drive chain. For instructions, refer to
Tightening Reel Drive Chain, page 228.
5.9.6 Replacing Double-Reel Header Drive Chain
Refer to the following two methods for replacing the drive chain on a double-reel drive:
• Replacing Chain Using the Reel Drive Method, page 235
• Replacing Chain Using the Breaking the Chain Method, page 237
Both procedures are acceptable, but disconnecting the reel drive method is preferable because it doesn’ t affect the chain’s
integrity.
Replacing Chain Using the Reel Drive Method
DANGER
To prevent injury or death from the unexpected start-up of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1. Loosen the drive chain. For instructions, refer to Loosening Reel Drive Chain, page 227.
