215651 252 Revision B
6.4 Crop Delivery Kits
Crop delivery is the process in which crop gets from the cutterbar to the crimper or opening at the back of the header.
Optional crop delivery kits can optimize header performance for specific crops or conditions.
6.4.1 Draper Deflector – Wide

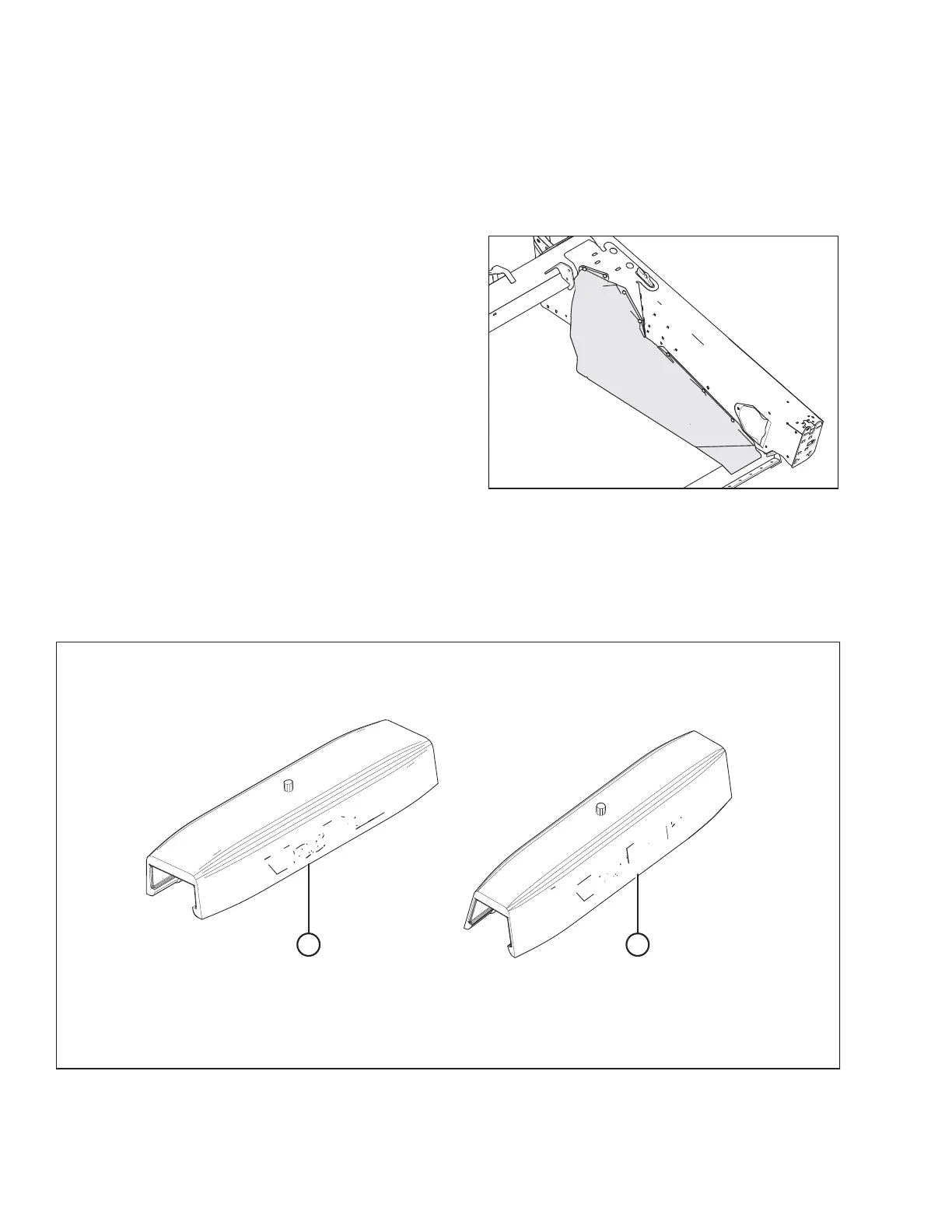

Figure 6.18: Wide Draper Deflector
Wide metal draper deflectors attach to the inboard side of the
endsheets to prevent material from falling through the gap
between the endsheet and the draper.
Installation instructions are included with the kit.
IMPORTANT:
The wide draper deflector is NOT compatible with the Lodged
Crop Reel Finger (MD #B4831) option.
NOTE:
Required for double swathing only (leaves a gap between the
standing crop and the swath for the divider to run through).
MD #B6551 – for D1X (includes extra parts for various cutterbar
layouts).
MD #B6552 – for D1XL
6.4.2 Draper Clips
Draper clips offer additional wear protection for the draper cleats. They may prove useful in situations where conditions
are dry or consistently hot.
$ %
Figure 6.19: Draper Clips
Installation instructions are included with the kit.
• MD #294859 for square cleats (A) (for drapers MD #172195, MD #172196, MD #172197, MD #172198)
OPTIONS AND ATTACHMENTS
