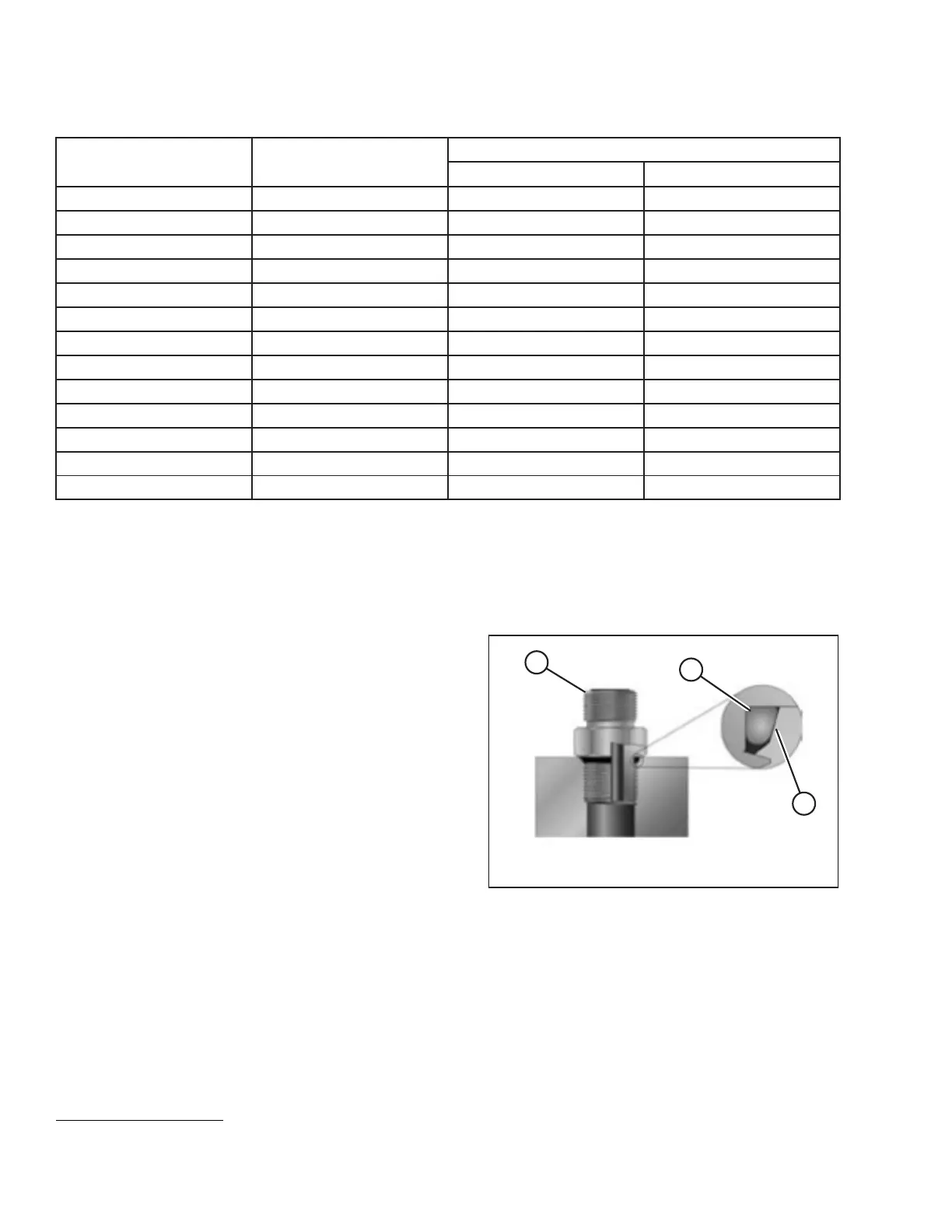

Table 9.11 O-Ring Boss (ORB) Hydraulic Fittings – Adjustable
SAE Dash Size
Thread Size (in.)
Torque Value
82
Nm
lbf·ft (*lbf·in)
-2
5/16–24
6–7 *53–62
-3
3/8–24
12–13 *106–115
-4
7/16–20
19–21 14–15
-5
1/2–20
21–33 15–24
-6
9/16–18
26–29 19–21
-8
3/4–16
46–50 34–37
-10
7/8–14
75–82 55–60
-12
1 1/16–12
120–132 88–97
-14
1 3/8–12
153–168 113–124
-16
1 5/16–12
176–193 130–142
-20
1 5/8–12
221–243 163–179
-24
1 7/8–12
270–298 199–220
-32
2 1/2–12
332–365 245–269
9.1.6 O-Ring Boss Hydraulic Fittings – Non-Adjustable
The standard torque values are provided for non-adjustable hydraulic fittings. If a procedure specifies a different torque
value for the same type and size of fitting found in this topic, use the value specified in the procedure instead.
Torque values are shown in following table below.
$
%
&
Figure 9.13: Hydraulic Fitting
1. Inspect O-ring (A) and seat (B) for dirt or obvious defects.
2. Check that O-ring (A) is NOT on the threads. Adjust O-
ring (A) if necessary.
3. Apply hydraulic system oil to the O-ring.
4. Install fitting (C) into the port until the fitting is hand-tight.
5. Torque fitting (C) according to values in Table 9.12, page
281.
6. Check the final condition of the fitting.
REFERENCE
82. Torque values shown are based on lubricated connections as in reassembly.
