215651 279 Revision B

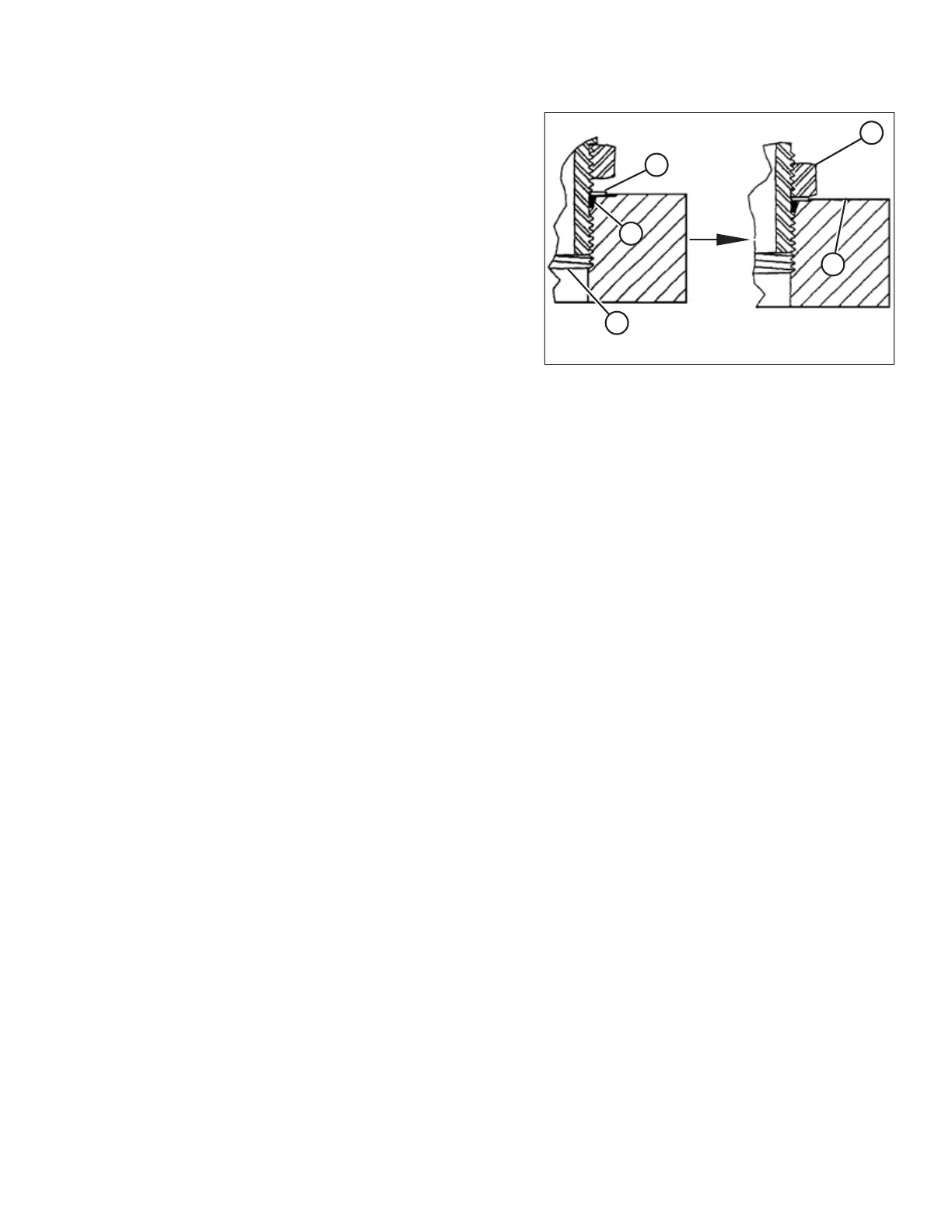

Figure 9.12: Hydraulic Fitting
5. Install fitting (B) into the port until backup washer (D) and
O-ring (A) contact part face (E).
6. Position the angle fittings by unscrewing no more than
one turn.
7. Turn lock nut (C) down to washer (D) and tighten it to the
torque value indicated in the table. Use two wrenches, one
on fitting (B) and the other on lock nut (C).
8. Check the final condition of the fitting.
REFERENCE
