Chapter 6: Options and Attachments
The following options and attachments are available for use with your header. See your MacDon Dealer for availability and
ordering information.
6.1 Reel
6.1.1 Multi-Crop Rapid Reel Conversion Kit
For use on double-reel headers only, the Multi-Crop Rapid Reel Conversion kit decreases the time required to change the
fore-aft cylinder position on the reel support arm from the normal operating location to a farther aft location that
minimizes crop disturbance. The kit also allows the reel fore-aft cylinders to be quickly moved to the normal operating
location.

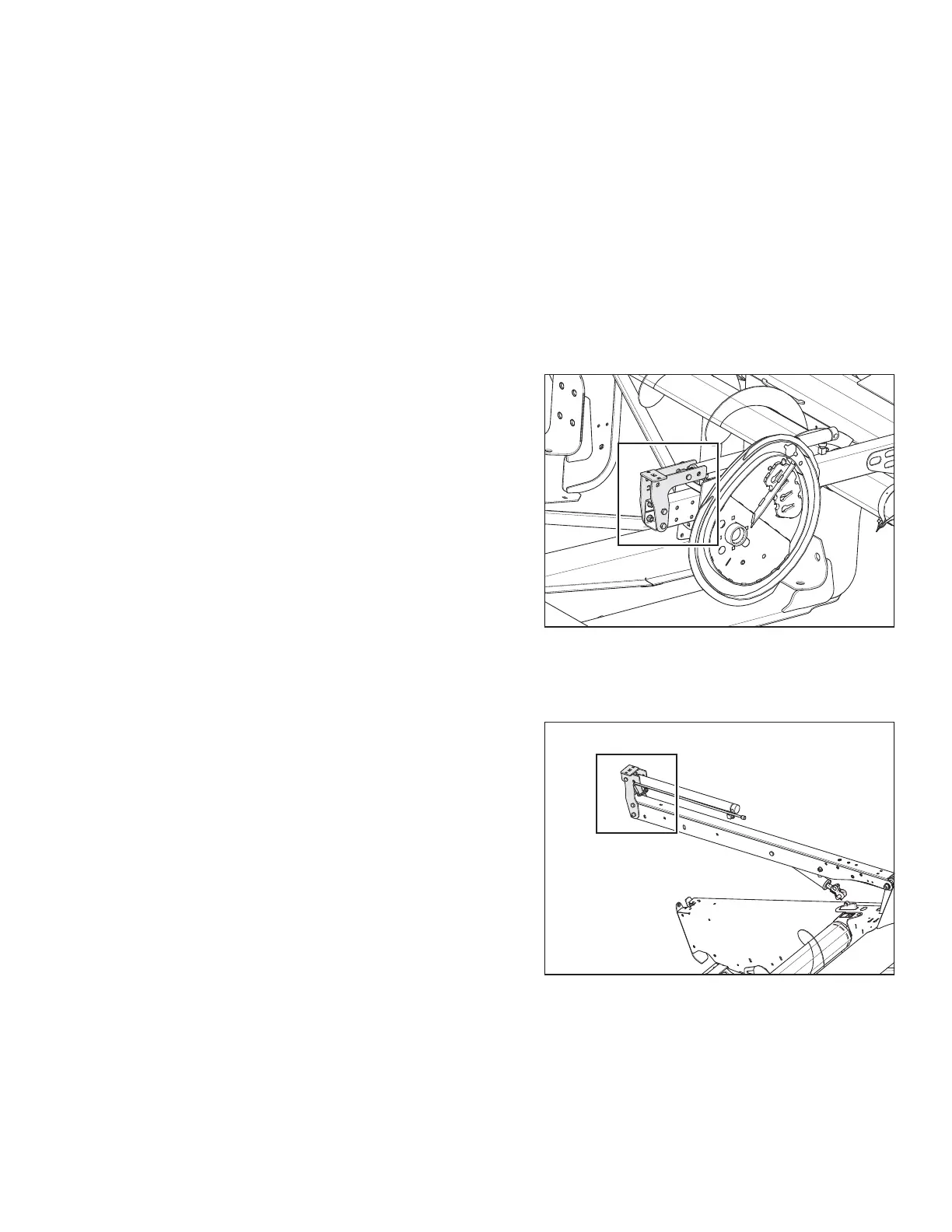

Figure 6.1: Center Arm – Left and Right Arms Similar
MD #B6590
6.1.2 Reel Arm Extension Kit – North American-Configured Headers Only
Figure 6.2: Right Arm – Center and Left Arms Similar
This kit provides extensions for the outer reel support arms.
These extensions provide the additional reel arm length
required to properly install a Vertical Knife Mount kit
(MD #B6608, MD #B6609) onto the header. The Reel Arm
Extension kit also includes reel fore-aft brackets allowing quick
reel repositioning from the reel’s most forward position to its
most rearward position.
NOTE:
Parts removed from illustration for clarity.
To Next Page
