MacDon D1X Series - Installing Endshields; Removing Endshields

215651 39 Revision B

$

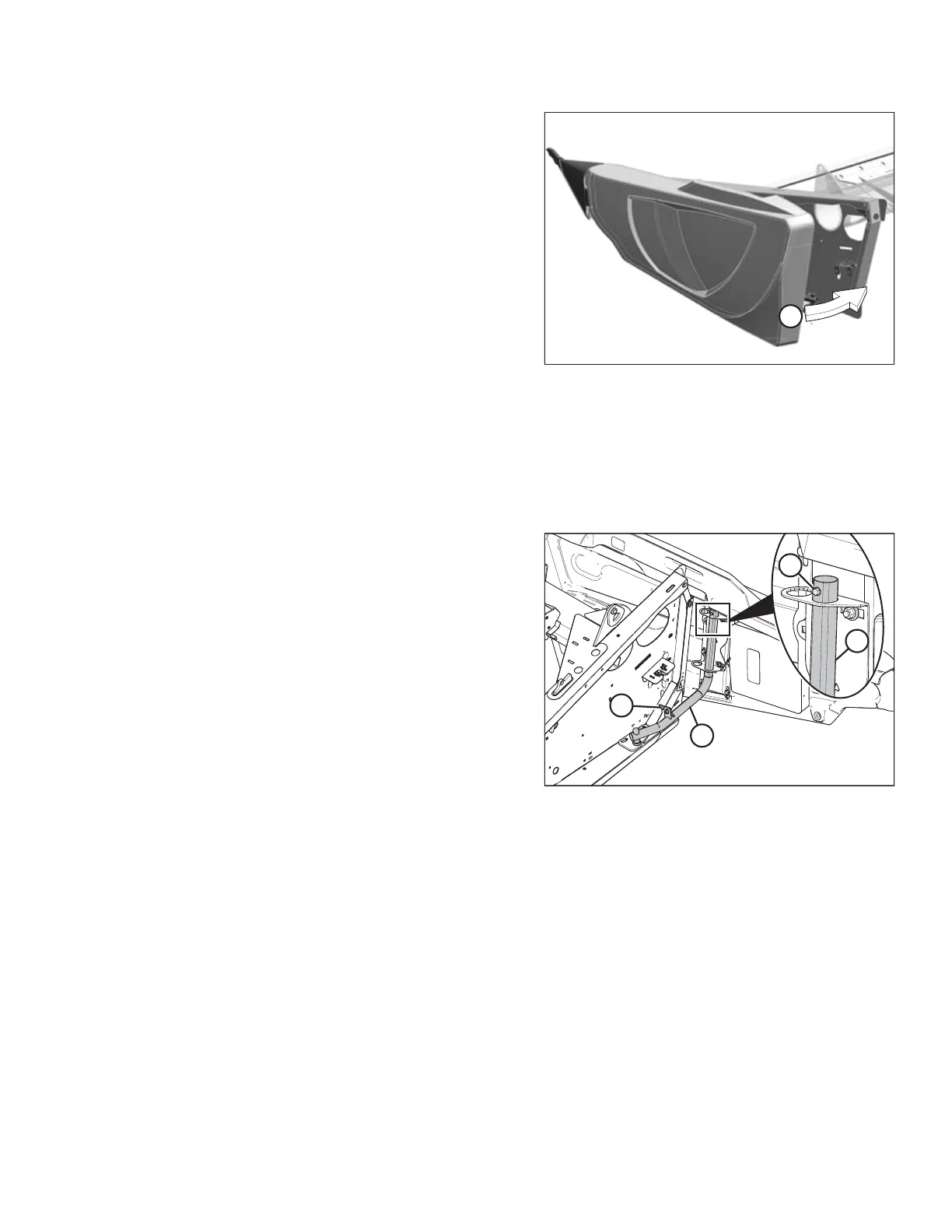

Figure 3.11: Left Endshield
3. Swing the endshield into the closed position (direction [A]).
Engage the latch by pushing firmly on the endshield in the
direction shown.
4. Ensure that the endshield is locked by pulling the endshield
toward you; if it has successfully locked, it will not be
possible to move the endshield.
Removing Endshields
To ensure the endshields are removed correctly, follow the recommended removal procedure provided here.
NOTE:
A D1X Series Draper Header is shown in the illustration. A D1XL Series Draper Header is similar.

&
$
%
&
Figure 3.12: Left Endshield on D1X Series Draper
Header
1. Fully open the endshield. For instructions, refer to Opening
Endshields, page 37 .
2. Engage lock (A) to prevent endshield movement.
3. Remove self-tapping screw (B).
4. Slide the endshield upwards and remove it from hinge
arm (C).
Installing Endshields
To ensure the endshields are installed correctly, follow the recommended installation procedure provided here.
NOTE:
A D1X Series Draper Header is shown in the illustration. A D1XL Series Draper Header is similar.
OPERATION
