MacDon D1X Series - Header Endshields; Opening Endshields

215651 37 Revision B

%
$

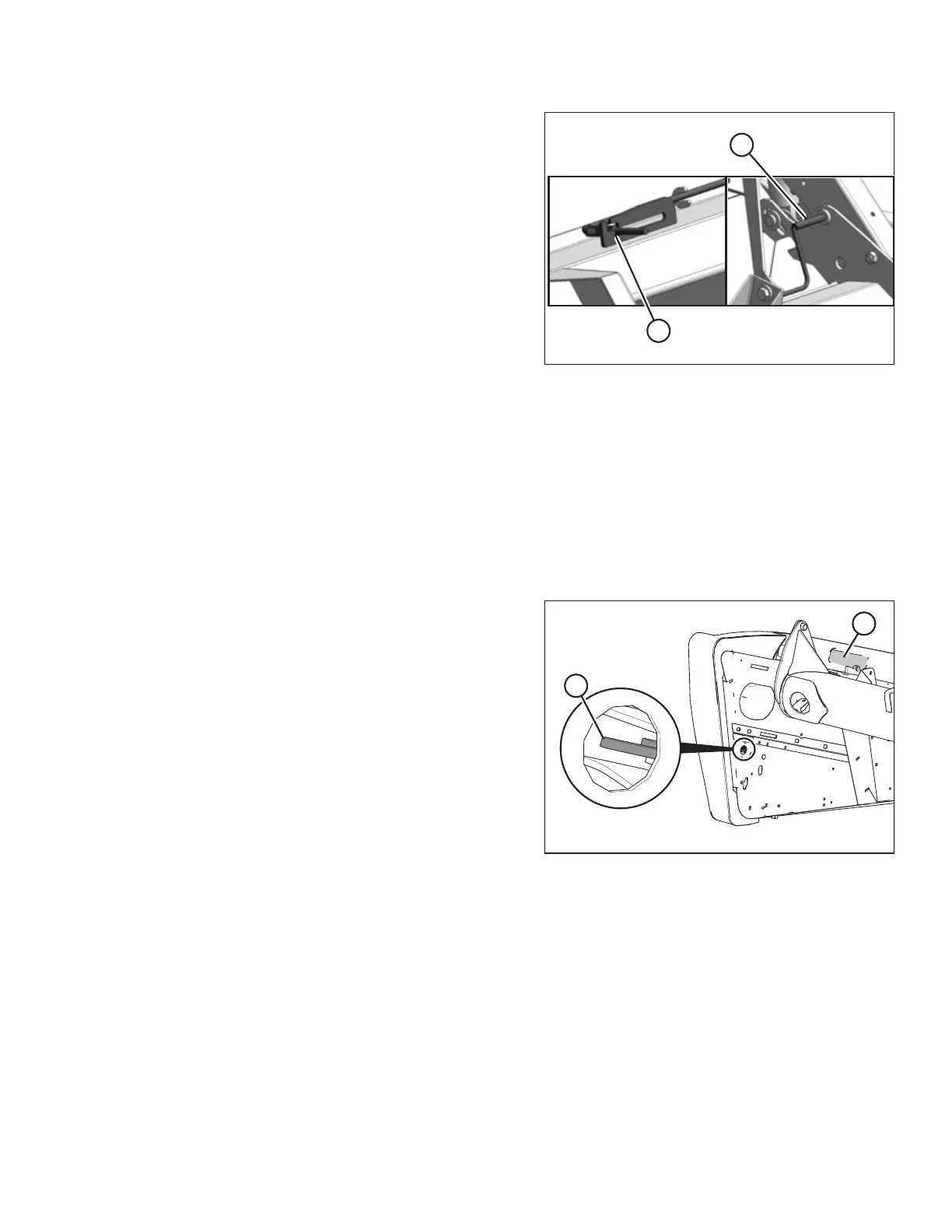

Figure 3.6: Reel Safety Prop – Center Arm
4. Use handle (B) on double-reel headers to move lock rod (A)
to the outboard position.
3.2.3 Header Endshields
A hinged, polyethylene endshield is fitted on each end of the header.
Opening Endshields
The endshields can be opened to access serviceable components or stored items.
This procedure details the steps necessary to open the left endshield; the procedure for opening the right endshield is
opposite.

$
%
Figure 3.7: Left Endshield
1. Locate the endshield.
2. From the back of the header, push release lever (A) to
unlock the endshield.
3. Pull the endshield open using handle depression (B).
OPERATION
