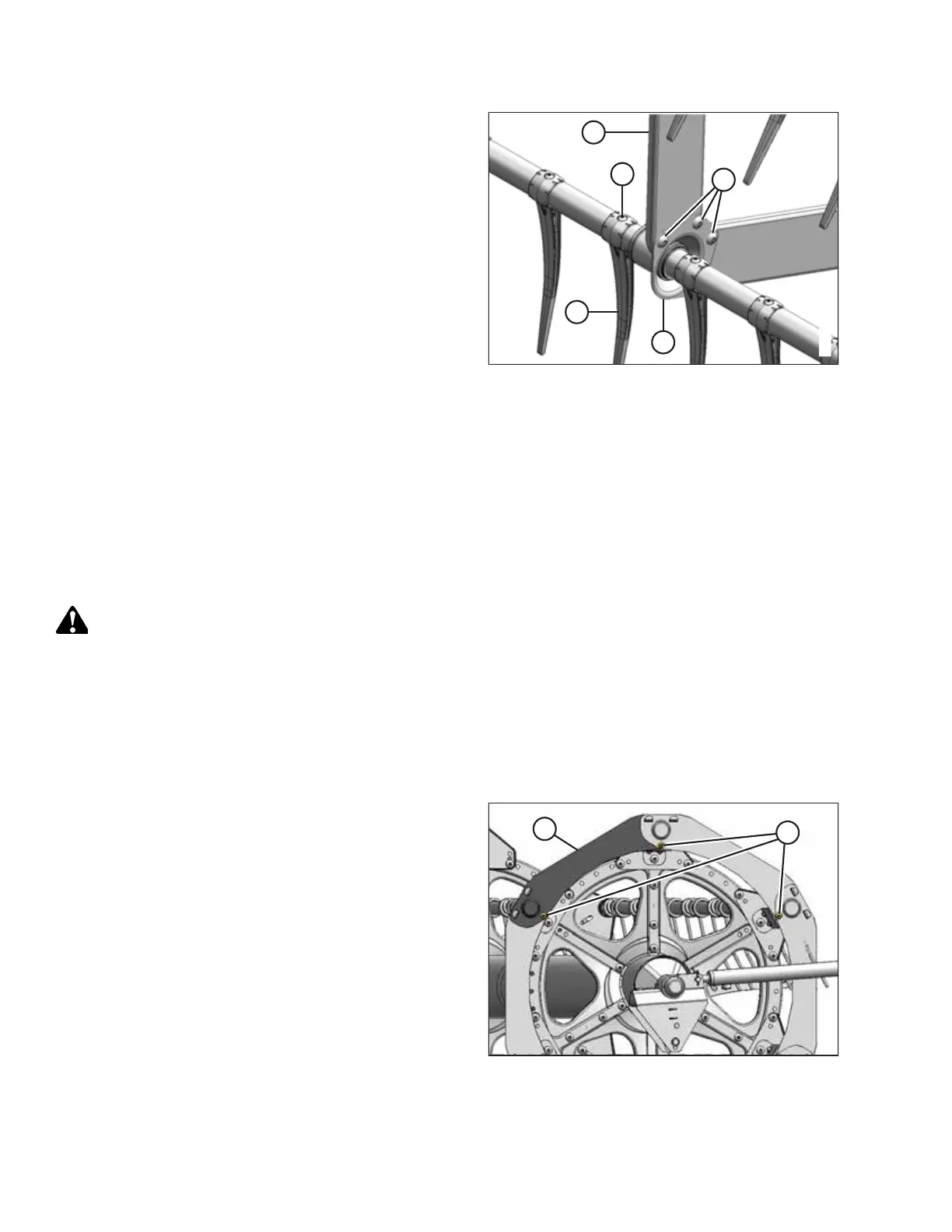

Figure 5.211: Tine Tube Reinforcing Kit Opposite
Support – Option
28. Reattach channels (C) to two left-facing supports (A) on
each reel with screws (B) and nuts. Torque screws to 43 Nm
(32 lbf∙ft).
29. Using screws (E), reinstall any fingers (D) that were
previously removed. For instructions, refer to:
• Installing Plastic Fingers, page 207
• Installing Steel Fingers, page 206
5.8.6 Reel Endshields
Reel endshields and supports do not require regular maintenance, but they should be checked periodically for damage and
loose or missing fasteners. Slightly dented or deformed endshields and supports are repairable, but it’s necessary to
replace severely damaged components.
You can attach reel endshields to either end of the reel.
Replacing Reel Endshields
DANGER
To prevent injury or death from the unexpected start-up of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1. Start the engine. For instructions, refer to the windrower operator’ s manual.
2. Lower the reel fully.
3. Lower the header fully.
4. Shut down the engine, and remove the key from the ignition.
$
%
Figure 5.212: Reel Endshields
5. Rotate the reel manually until reel endshield (A) requiring
replacement is accessible.
6. Remove three bolts (B).
