215651 221 Revision B

$
%

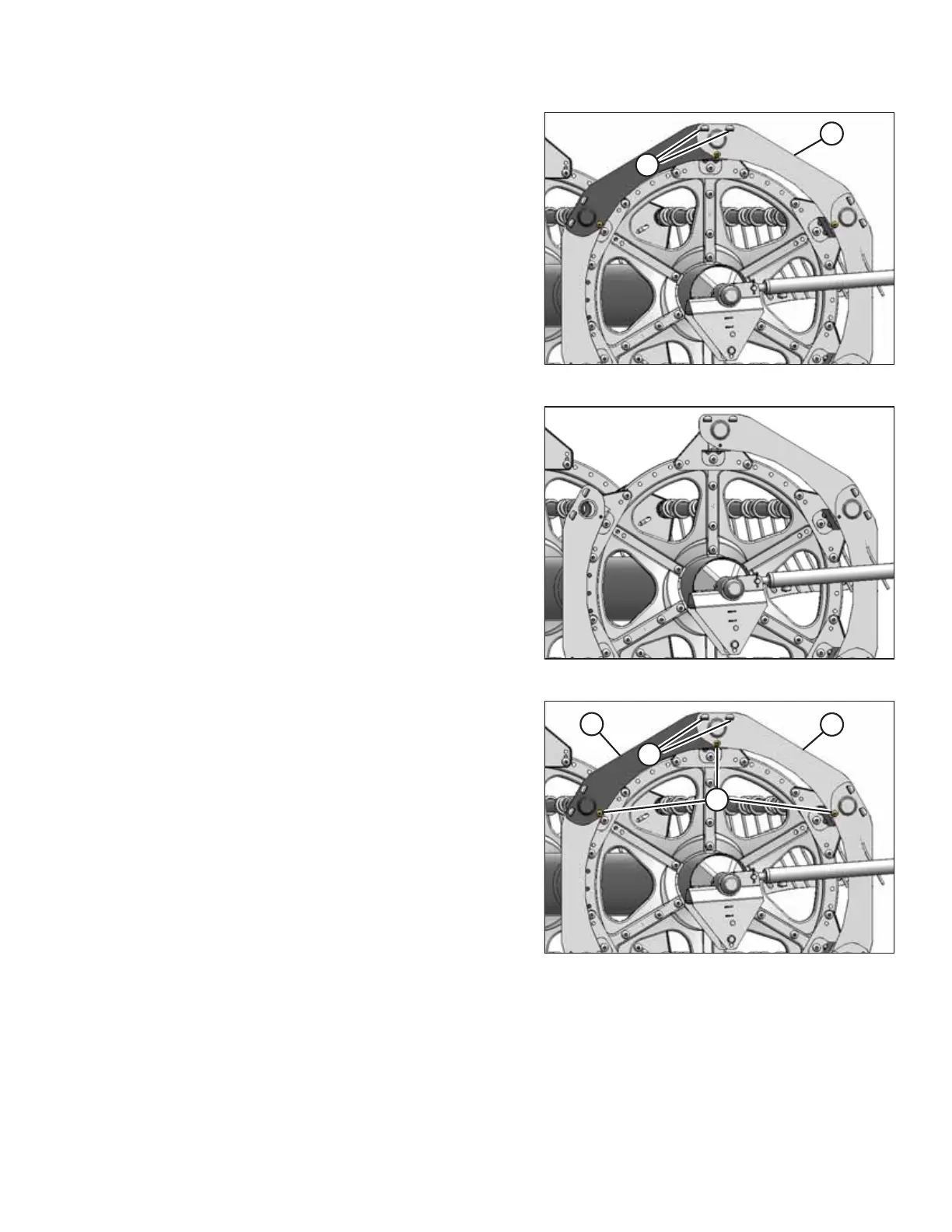

Figure 5.213: Reel Endshields
7. Lift the end of reel endshield (A) off support tabs (B).

Figure 5.214: Reel Endshield Removed
8. Remove the reel endshield from the supports.

$
&
'
%
Figure 5.215: Reel Endshields
9. Slightly lift the end of reel endshield (A) off of support
tabs (B).
10. Install new reel endshield (C), behind reel endshield (A).
11. Reattach reel endshield (C), then (A) onto support tabs (B).
12. Reinstall three bolts (D).
13. Tighten all hardware.
MAINTENANCE AND SERVICING
