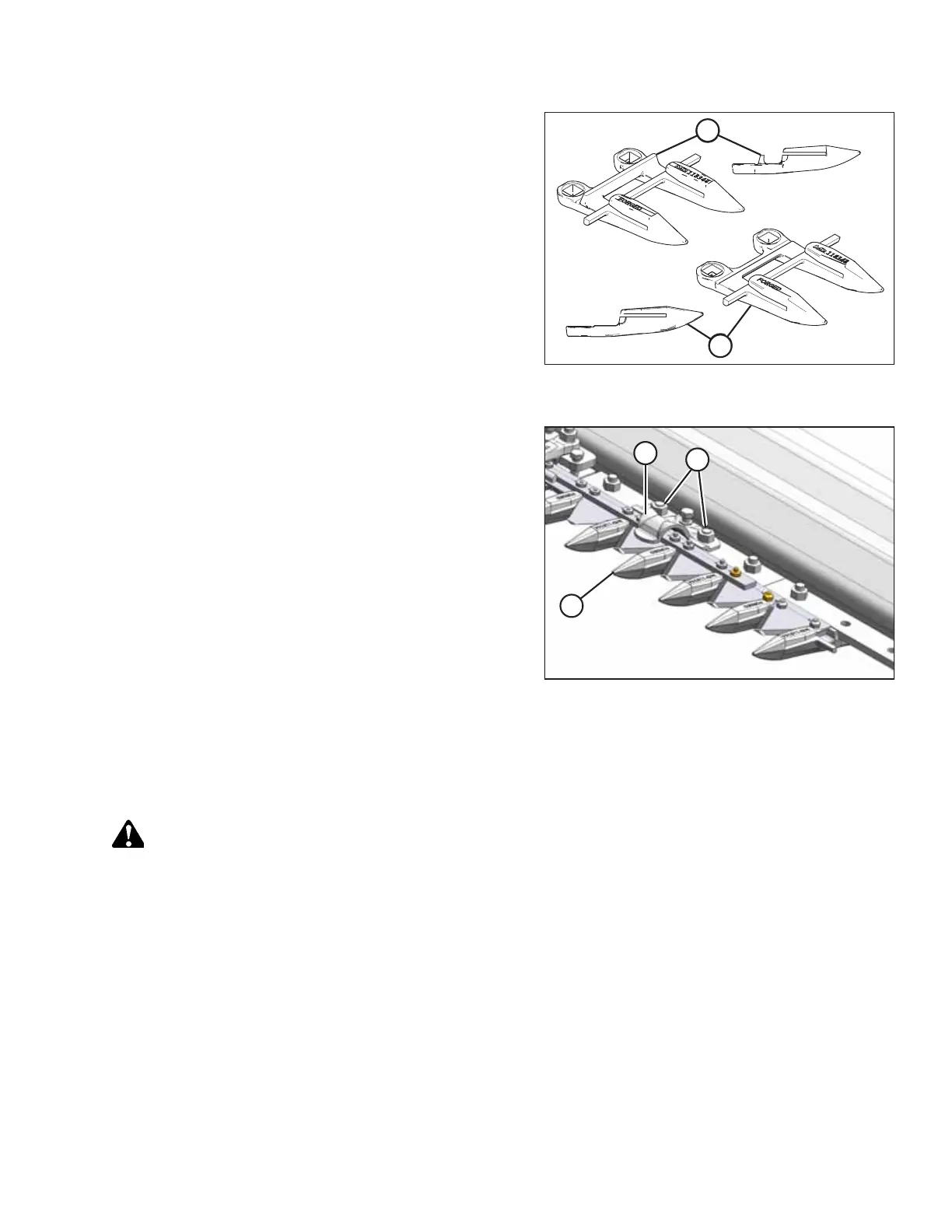

Figure 5.33: Pointed Guards
A - Standard B - Drive Side
IMPORTANT:
The first four outboard guards (B) on the drive sides of the
header do NOT have ledger plates. Ensure proper
replacement guards are installed at these locations.
Figure 5.34: Pointed Guards
5. Position new guard (A), hold-down (C), and the plastic
wearplate (if applicable) onto the cutterbar. Secure with
two nuts (B) and bolts. Do NOT tighten.
6. Check and adjust the clearance between the hold-downs
and the knife. For instructions, refer to Checking and
Adjusting Hold-Downs with Pointed Guards, page 141.
7. Torque nuts (B) to 88 Nm (65 lbf∙ ft).
Replacing Stub Knife Guards
Stub knife guards, complete with top guides and adjuster plates, are designed to cut tough crops and are factory-installed
at the outer ends of specific headers.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key before making adjustments to the machine.
1. Shut down the engine, and remove the key from the ignition.
