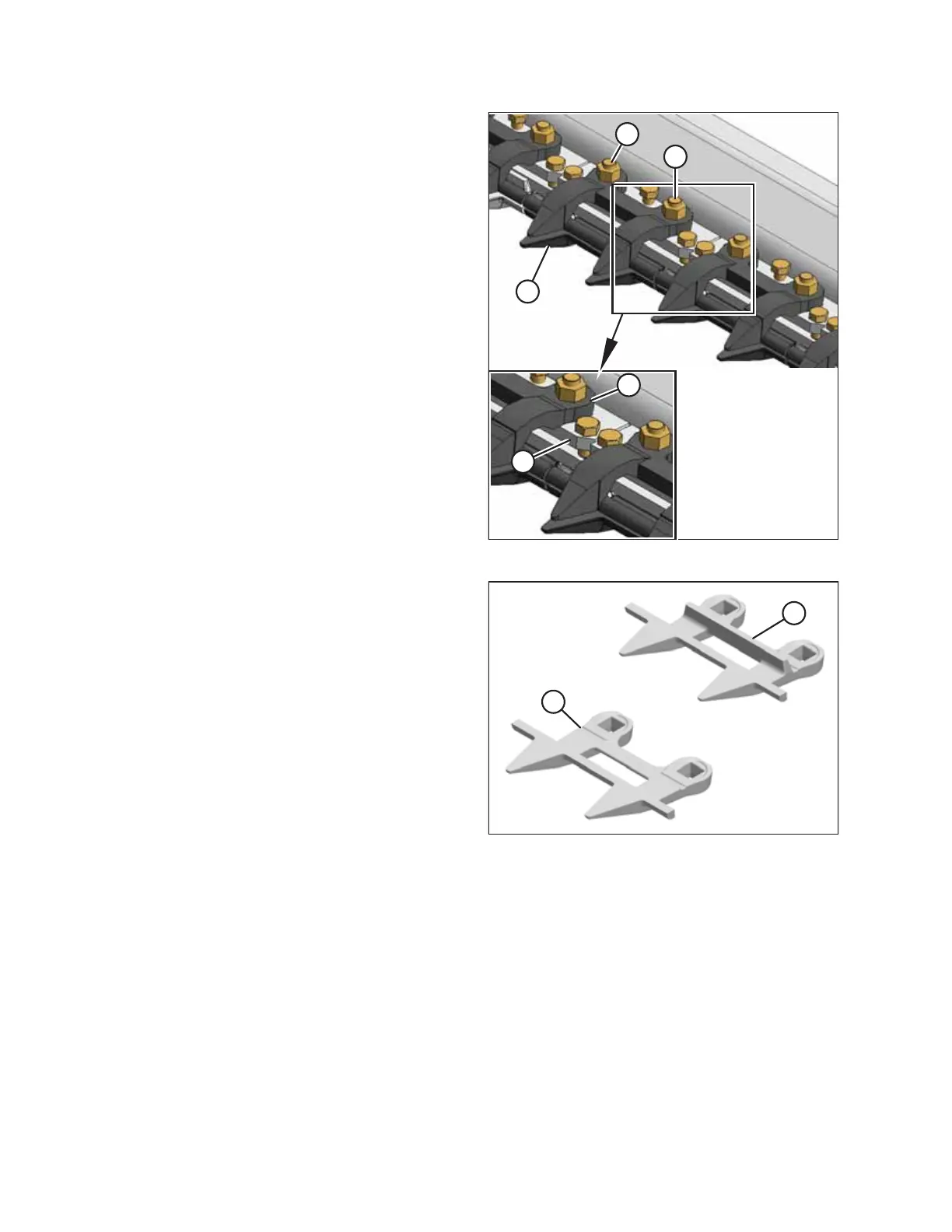

Figure 5.35: Stub Knife Guards
2. Stroke the knife manually until the knife sections are
spaced midway between the guards.
3. Remove two nuts (A) and bolts attaching guard (B) and top
guide (C) to the cutterbar.
4. Remove guard (B), the plastic wearplate (if installed), top
guide (C), and adjuster bar (D).
%
$
Figure 5.36: Stub Knife Guards
A - Drive Side Guard B - Standard Guard with Ledger Plate
IMPORTANT:
The first four outboard guards (A) on the drive sides of the
header do NOT have ledger plates. Ensure the proper
replacement guards are installed at these locations.
