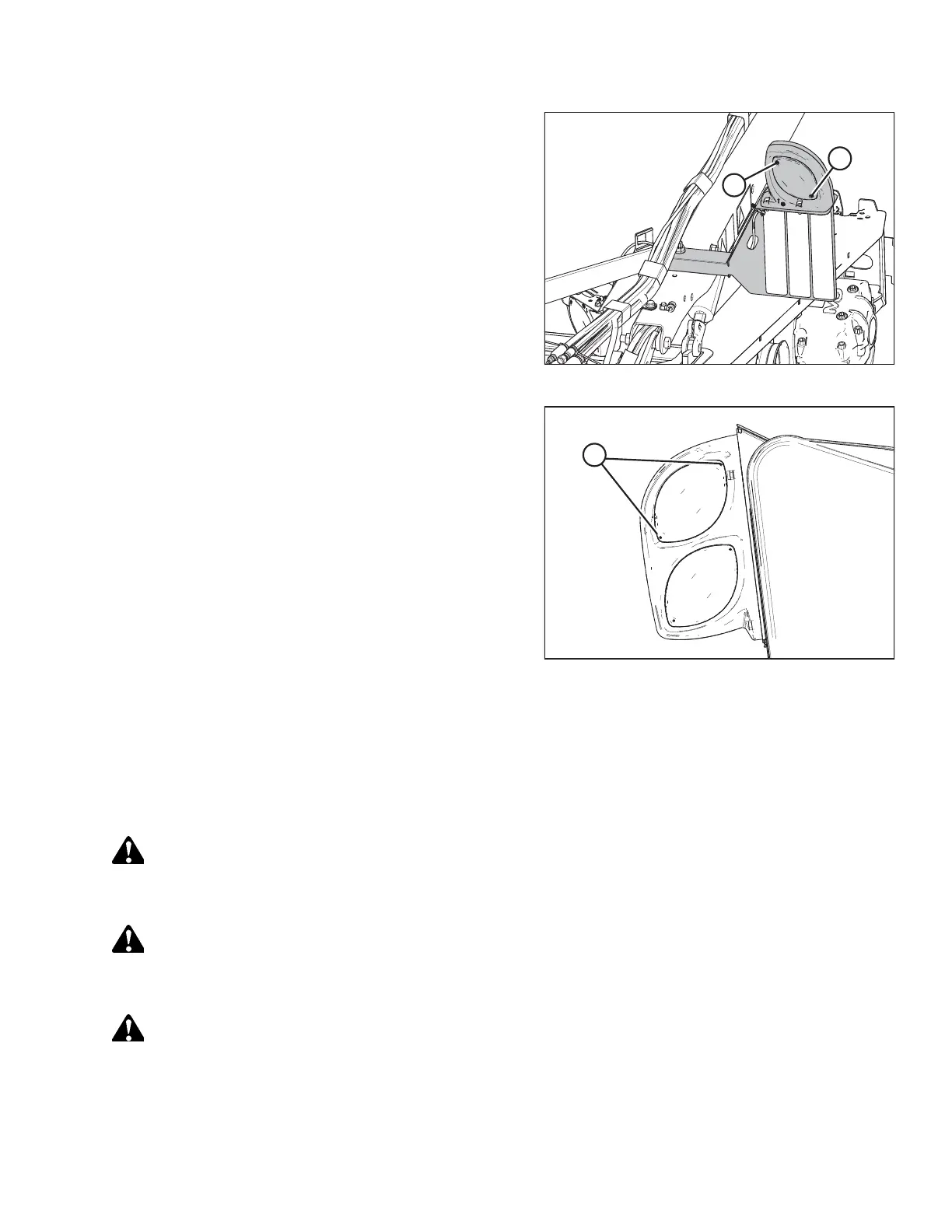

Figure 5.17: Left Transport Light
2. Use a Phillips screwdriver to remove screws (A) from the
fixture, and remove the plastic lens. Retain screws (A).
3. Replace the bulb, and reinstall the plastic lens and screws.
NOTE:
Use trade #1156 bulb for amber transport lights and #1157
for red tail lights. The red tail lights are only on headers
with the transport option installed.
Figure 5.18: Transport Option – Red and Amber Lights
5.4.3 Checking and Adjusting Reel Height Sensor
The output voltage range of the auto reel height sensor can be checked from inside the windrower or manually at the
sensor.
For in-cab instructions, refer to the windrower operator’s manual.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key before making adjustments to the machine.
WARNING
To prevent bodily injury from the fall of a raised reel, always engage the reel safety props before going under the
raised reel for any reason.
WARNING
Check to be sure all bystanders have cleared the area.
IMPORTANT:
Ensure minimum reel height is properly set before adjusting the reel height sensor. For instructions, refer to Measuring
Reel Clearance, page 198.
