215651 56 Revision B
3.6.3 Reel Settings
The reel cam setting and reel position can be adjusted to produce different reel finger patterns.
Table 3.11, page 56 illustrates the profile of the reel at each cam or finger pitch setting as well as the reel position relative
to the ground at different positions on the reel arm. Refer to 3.6.2 Header Settings, page 46 for the applicability of each
finger pattern and reel position.

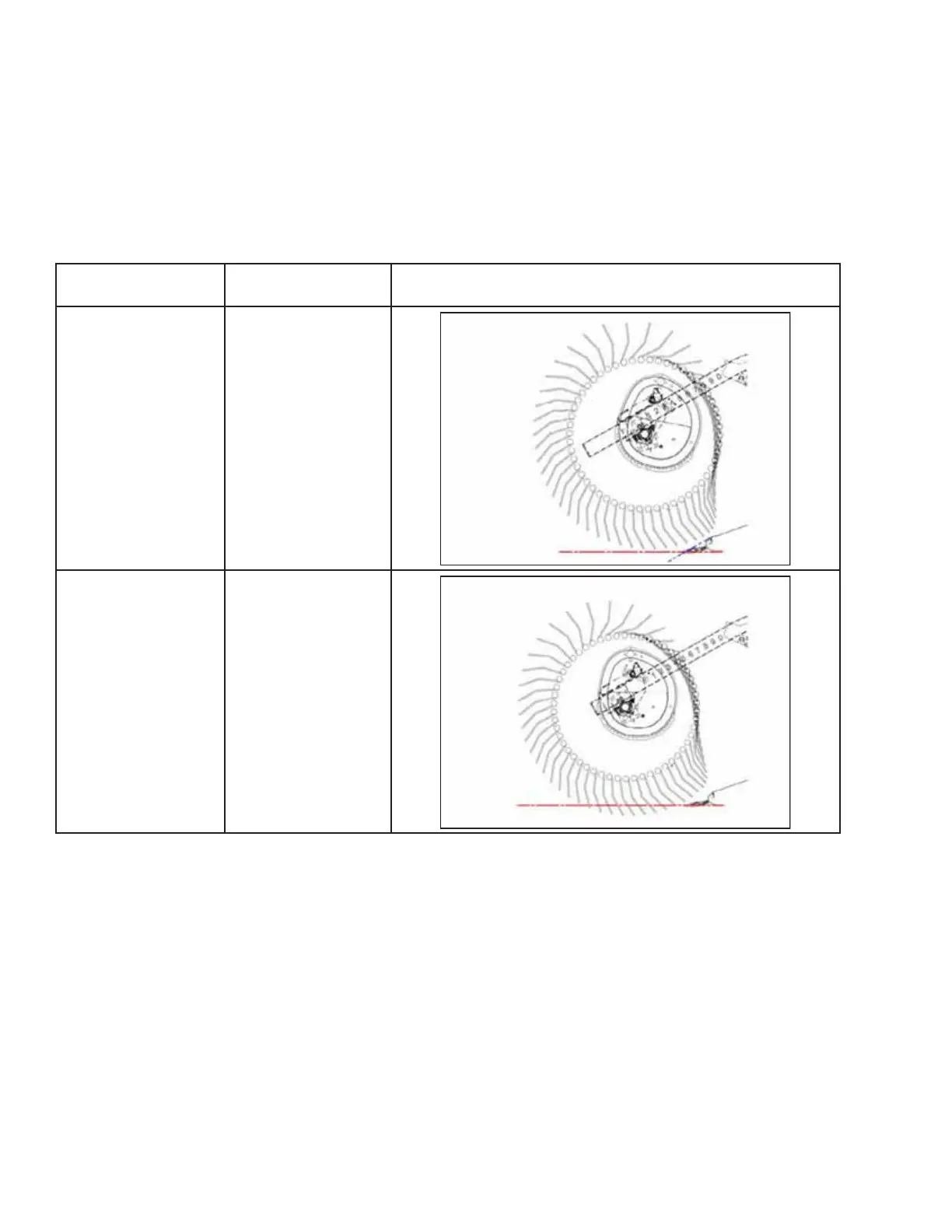

Table 3.11 Recommended Reel Settings
Cam Setting Number
(Finger Speed Gain)
Reel Position Number
Reel Finger Pattern
1 (0)
6or7
2 (20%)
3or4
OPERATION
