2.2 Component Identification
Operating and maintaining the header requires understanding the names of its parts and their locations.
$
%
&
'
(
)
*
+
.
-
0
1
3
4
/
5

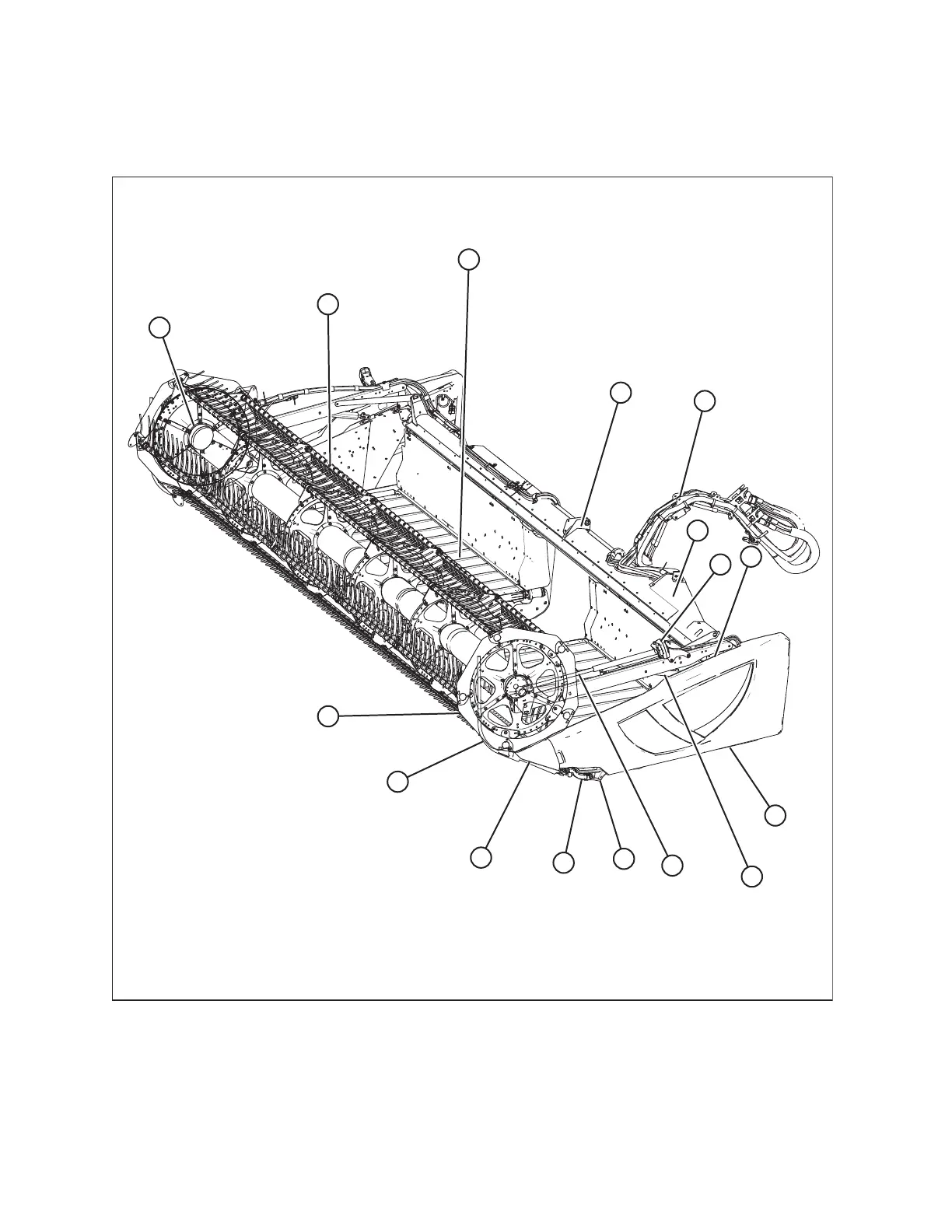

Figure 2.1: Windrower Header Components
A - Reel Cam B - Reel Tines C - Draper
D - Center Reel Arm Prop Handle E - Hydraulic Connections F - Transport Light
G - Reel Safety Prop H - Endshield J - Reel Lift Cylinder
K - Skid Shoe L - Reel Fore-Aft Cylinder M - Knife Drive Box
N - Crop Divider P - Crop Divider Rod Q - Reel Endshield
R - Hydraulic Hose Management System
PRODUCT OVERVIEW
