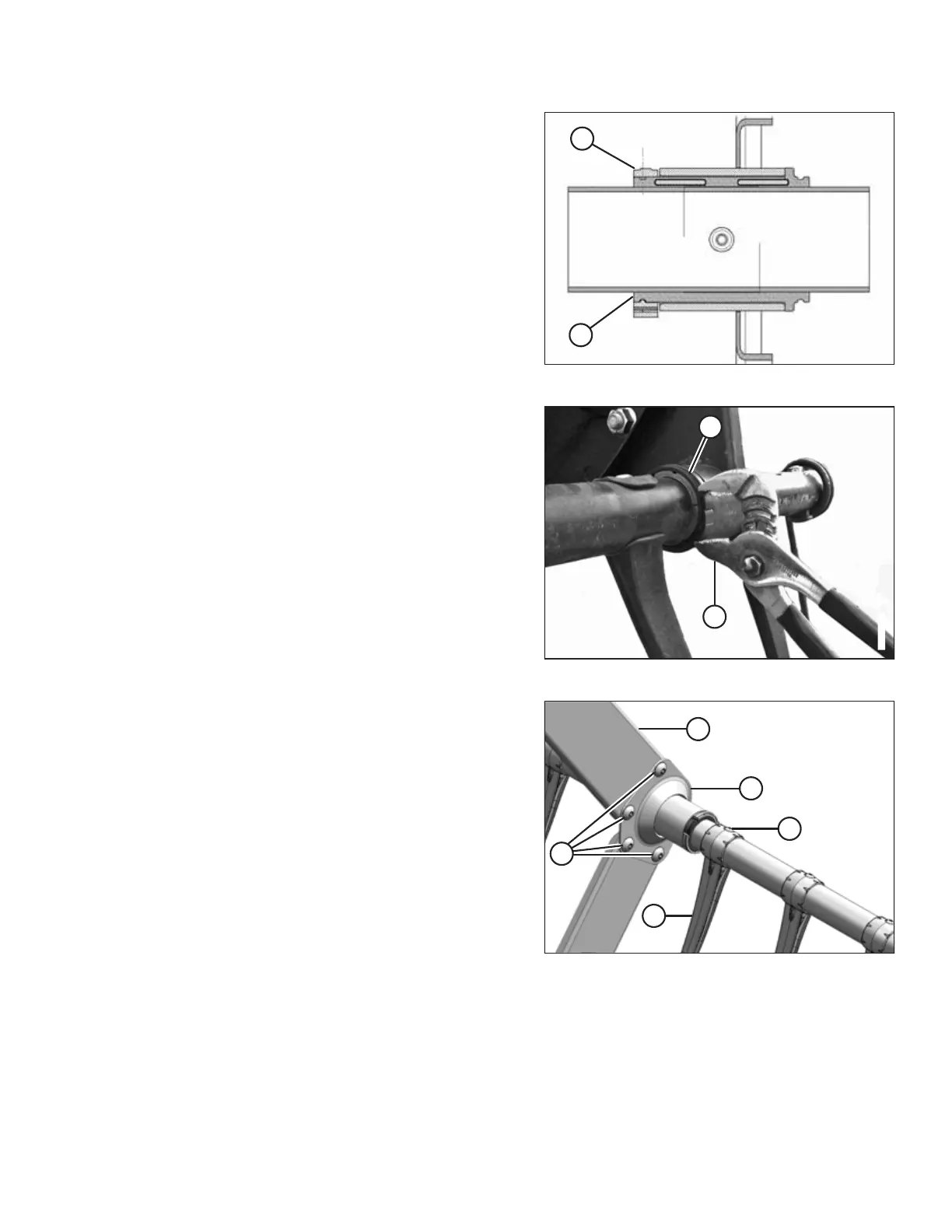

Figure 5.208: Bushing
23. Install bushing clamp (A) onto the tine tube adjacent to the
flangeless end of bushing (B).
24. Position clamp (A) on bushing (B) so the edges of the clamp
and bushing are flush when the clamp is fit into the groove
on the bushing and the lock tabs are engaged.
Figure 5.209: Installing Clamp
25. Tighten clamp (A) using modified channel lock pliers (B)
until finger pressure will NOT move the clamp.
IMPORTANT:
Overtightening clamp may result in breakage.
Figure 5.210: Tine Tube Reinforcing Kit
Support – Option
26. Reattach channels (C) to the three right-facing supports (A)
on each reel with screws (B) and nuts. Torque screws to
43 Nm (32 lbf∙ft).
27. Using screws (E), reinstall any fingers (D) that were
previously removed. For instructions, refer to:
• Installing Plastic Fingers, page 207
• Installing Steel Fingers, page 206
