Tine tube reinforcing kit – option

$
%

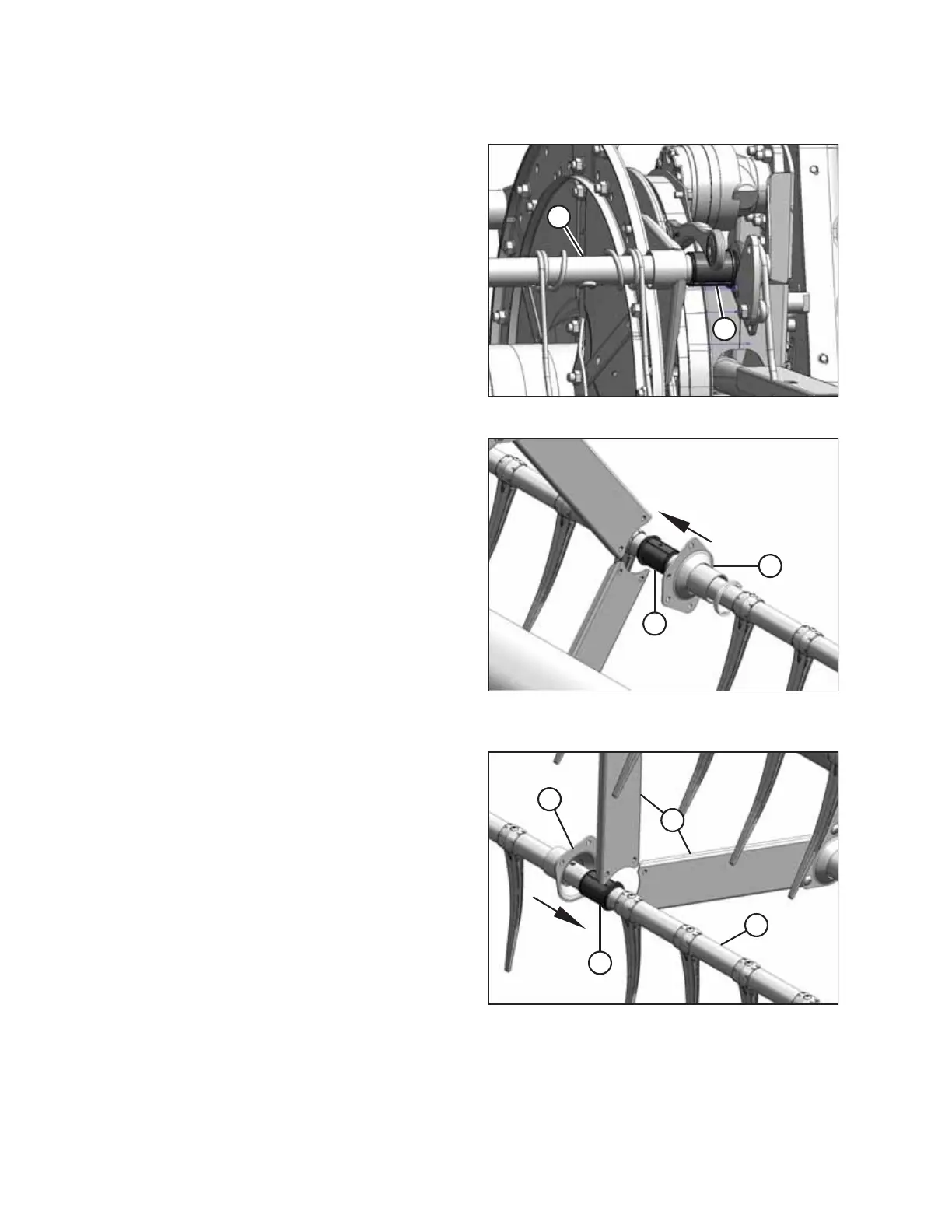

Figure 5.205: Cam End
20. Position bushing halves (B) on tine tube (A) with the
flangeless end adjacent to the tine tube arm, and position
the lug in each bushing half into the hole in the tine tube.

$
%
Figure 5.206: Tine Tube Reinforcing Kit
Support – Option
21. On each reel, there are three right-facing supports (A). Slide
the support onto bushing (B).

%
$
&
'
Figure 5.207: Tine Tube Reinforcing Kit Opposite
Support – Option
22. On each reel, there are two left-facing supports (A). Rotate
support (A) until its flanges clear channels (C) before
moving the support onto bushing (B).
NOTE:
If necessary, move tine tube (D) slightly away from the reel
to allow the support flange enough room to clear the
channel.
