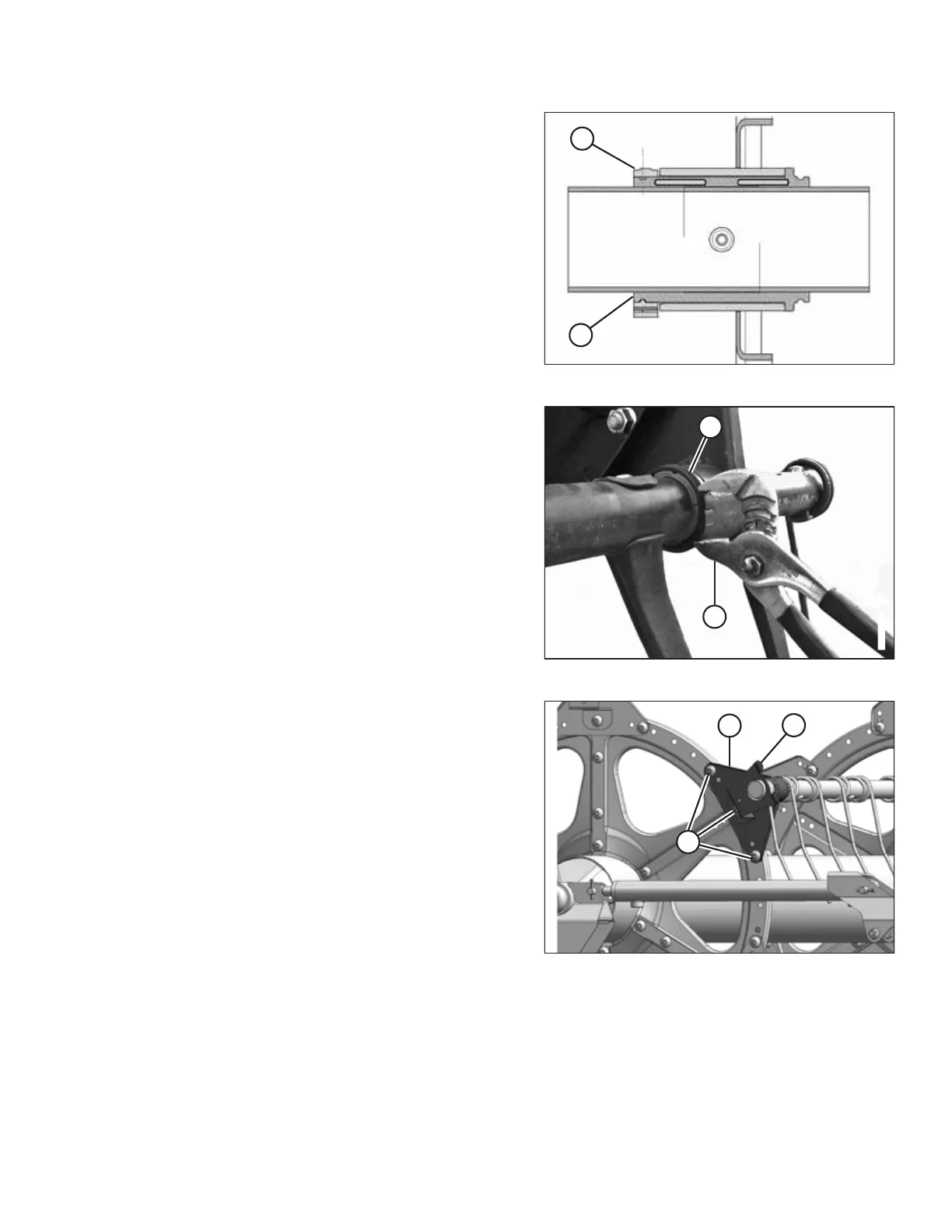

Figure 5.202: Bushing
15. Install bushing clamp (A) onto the tine tube adjacent to the
flangeless end of bushing (B).
16. Position clamp (A) on bushing (B) so the edges of the clamp
and bushing are flush when the clamp is fit into the groove
on the bushing and the lock tabs are engaged.
Figure 5.203: Installing Clamp
17. Tighten clamp (A) using modified channel lock pliers (B)
until finger pressure will NOT move the clamp.
IMPORTANT:
Overtightening clamp may result in breakage.
Figure 5.204: Tail End
18. Install bolts (A) securing tine tube arm (B) to the
center disc.
19. Install tine tube arm (B) and endshield support (C) to the
tail end of the reel at the applicable tine tube location and
secure with bolts (A).
NOTE:
There are no endshields on the center discs.
