215651 93 Revision B

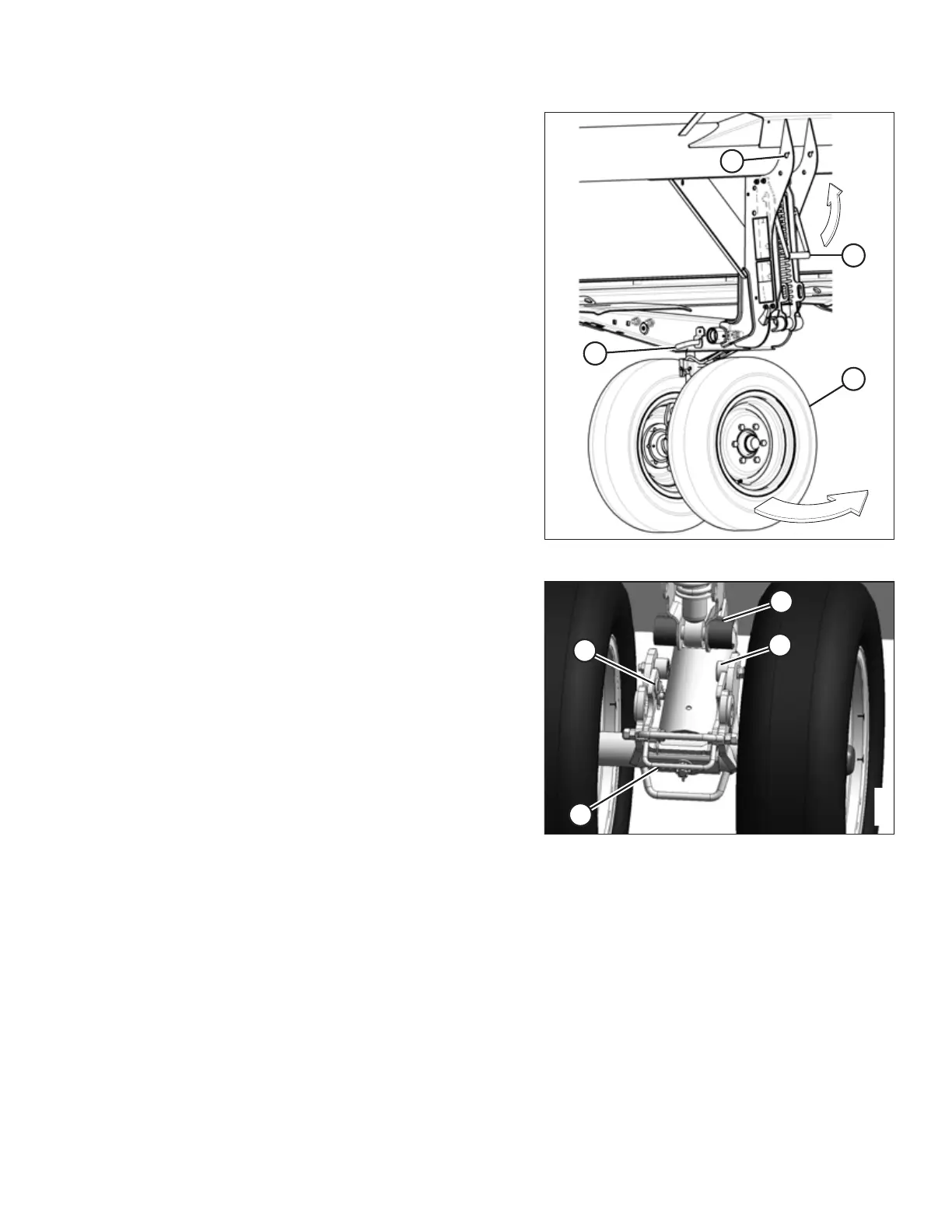

Figure 3.65: Front Wheels
4. Swivel the front wheel assembly (A) so the wheels are
aligned with the lower frame.
5. Remove pin (B) and pull the wheel assembly towards the
rear of the header. Store the pin in hole (C) at the top of
the leg.
6. Pull handle (D) upwards to release and lower the linkage
into the vertical support.
Figure 3.66: Front Wheels
7. Align lift hook (A) with lug (B) and lift the wheel assembly
to engage the pin in the lift hook. Ensure latch (C) is
engaged.
8. Install clevis pin (D) and secure to the center of the axle
with hairpin.
OPERATION
