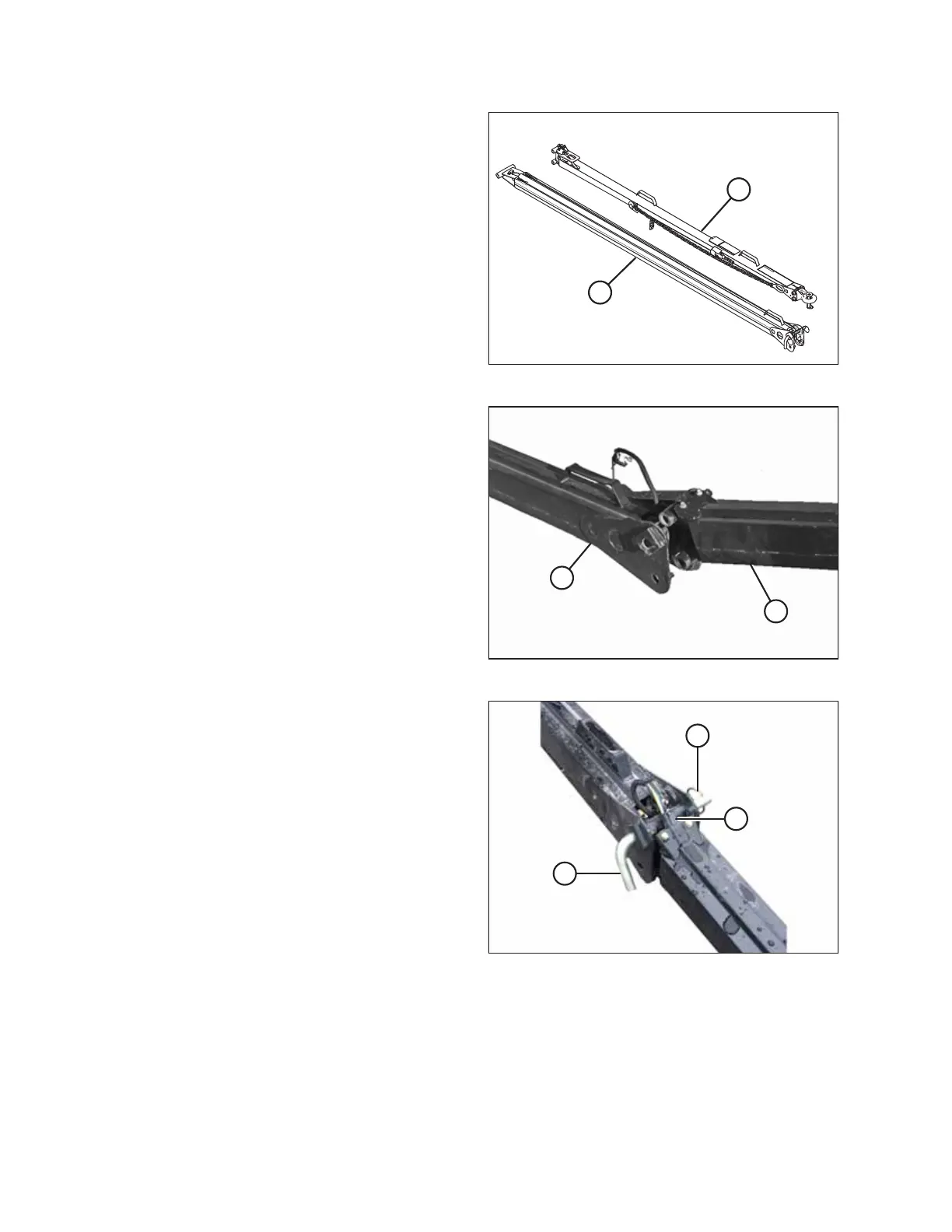

Figure 3.85: Tow-Bar Assembly
8. Connect outer half (B) of the tow-bar to inner half (A).

$
%
Figure 3.86: Tow-Bar Assembly
9. Lift outer half (B) and insert it into inner half (A).

$
%
&
Figure 3.87: Tow-Bar Assembly
10. Secure the two halves together with L-pin (A) and then turn
to lock. Secure the L-pin with ring (B).
11. Connect the electrical harness to connector (C).
