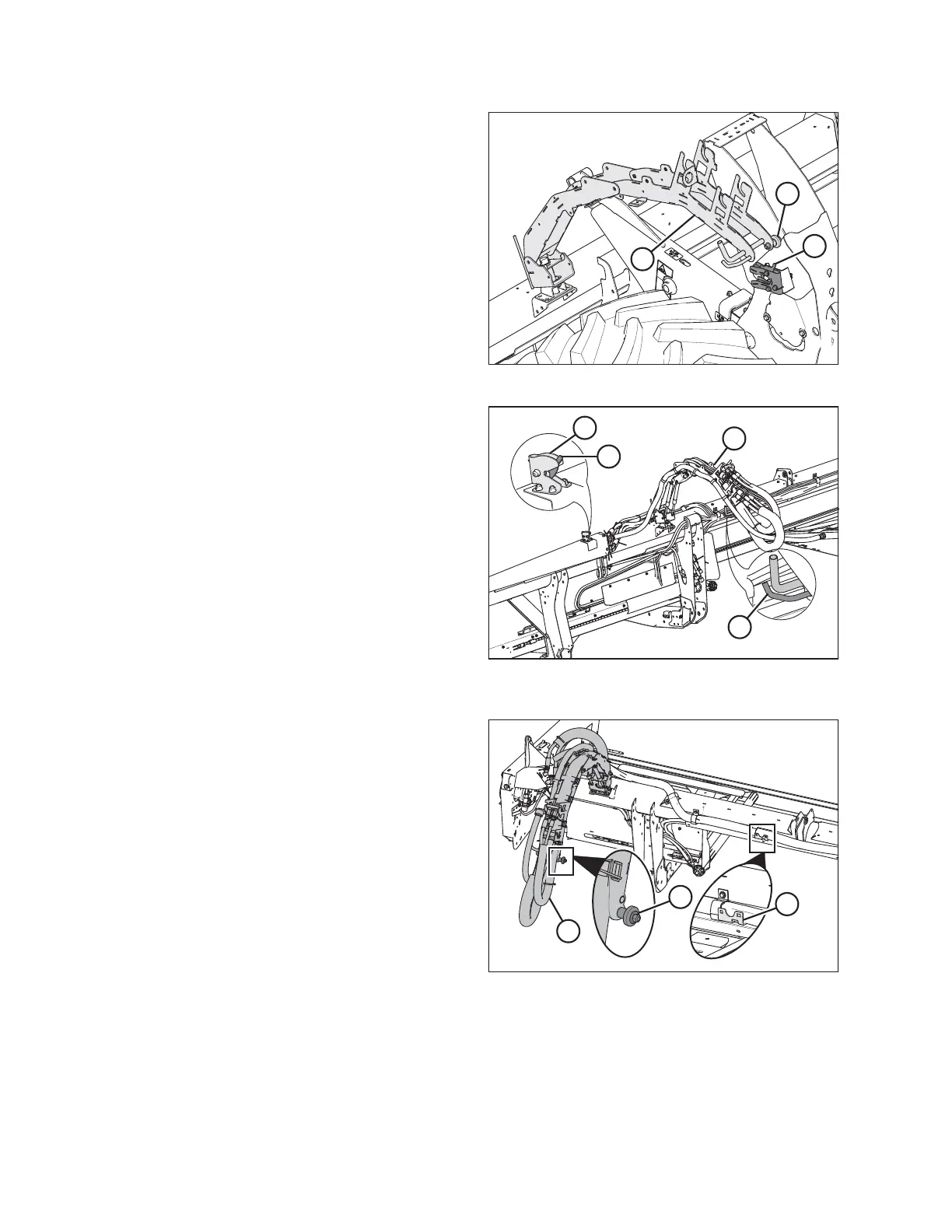

Figure 4.12: Windrower Left Outer Leg
11. Disconnect hydraulic hose management system (A) from
the left outer leg of the windrower by pulling ball stud latch
handle (C) to disengage ball stud (B) from the support.
NOTE:
The hydraulic hoses have been removed from the
illustration for clarity.
$
%
&
'
Figure 4.13: Hydraulic Hose Management System – All
Headers Except D115X
12. All draper headers except D115X: Pull arm (B) towards
latch (D), on the left side of the header. Align pin (C) to the
latch opening. Push arm (B) so lever (A) can secure the pin.
$
%
&
Figure 4.14: Hydraulic Hose Management System –
D115X Header
13. D115X Draper Headers: Pull hose management system (A)
inboard and toward the center of the header. Set ball
stud (B) into the cradle on support (C).
HEADER ATTACHMENT/DETACHMENT
