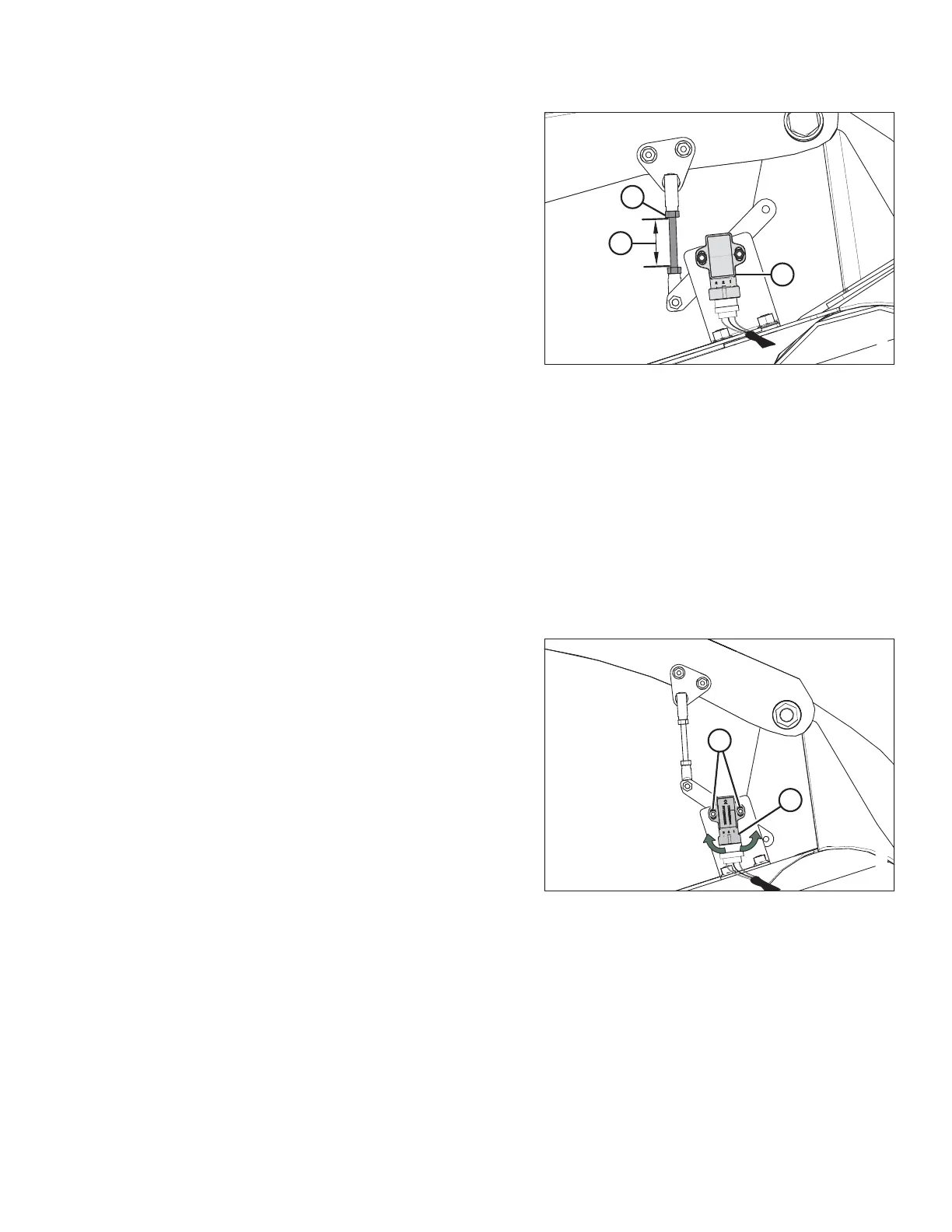

Figure 5.20: Reel Height Sensor – Right Reel Arm with
Reel Down
4. Use the windrower display or a voltmeter (if measuring the
sensor manually) to measure voltage range Y. Refer to
Table 5.4, page 130 for range requirements.
5. If using a voltmeter, measure the voltage between the
ground wire (pin 2) and the signal wire (pin 3) at the reel
height sensor (B).
6. Shut down the engine, and remove the key from
the ignition.
7. Adjust the length of threaded rod (A) to modify voltage
range Y.
NOTE:
Dimension (C) is factory set to 41.7 mm (1.6 in).
8. Repeat checking and adjusting until voltage range Y is
within the range specified.
9. Start the engine.
10. Raise the reel fully.
11. Shut down the engine, and remove the key from the ignition.
12. Engage the reel safety props. For instructions, refer to Engaging Reel Safety Props, page 35.
13. Start the engine.
14. Use the windrower display or a voltmeter (if measuring the sensor manually) to measure voltage range X. Refer to
Table 5.4, page 130 for range requirements.

$
%
Figure 5.21: Reel Height Sensor – Right Reel Arm with
Reel Up
15. If using a voltmeter, measure the voltage between the
ground (Pin 2 wire) and the signal (Pin 3 wire) at the reel
height sensor (A).
16. Shut down the engine, and remove the key from
the ignition.
17. Loosen two M5 hex nuts (B) and rotate sensor (A) to modify
voltage range X.
18. Repeat checking and adjusting until voltage range X is
within the range specified.
19. Disengage the reel safety props. For instructions, refer to
Disengaging Reel Safety Props, page 36.
20. Start the engine.
21. Lower the reel fully.
22. Recheck voltage range Y and ensure it is still within the
range specified. Adjust if required.
