Center disc and tail end bushings

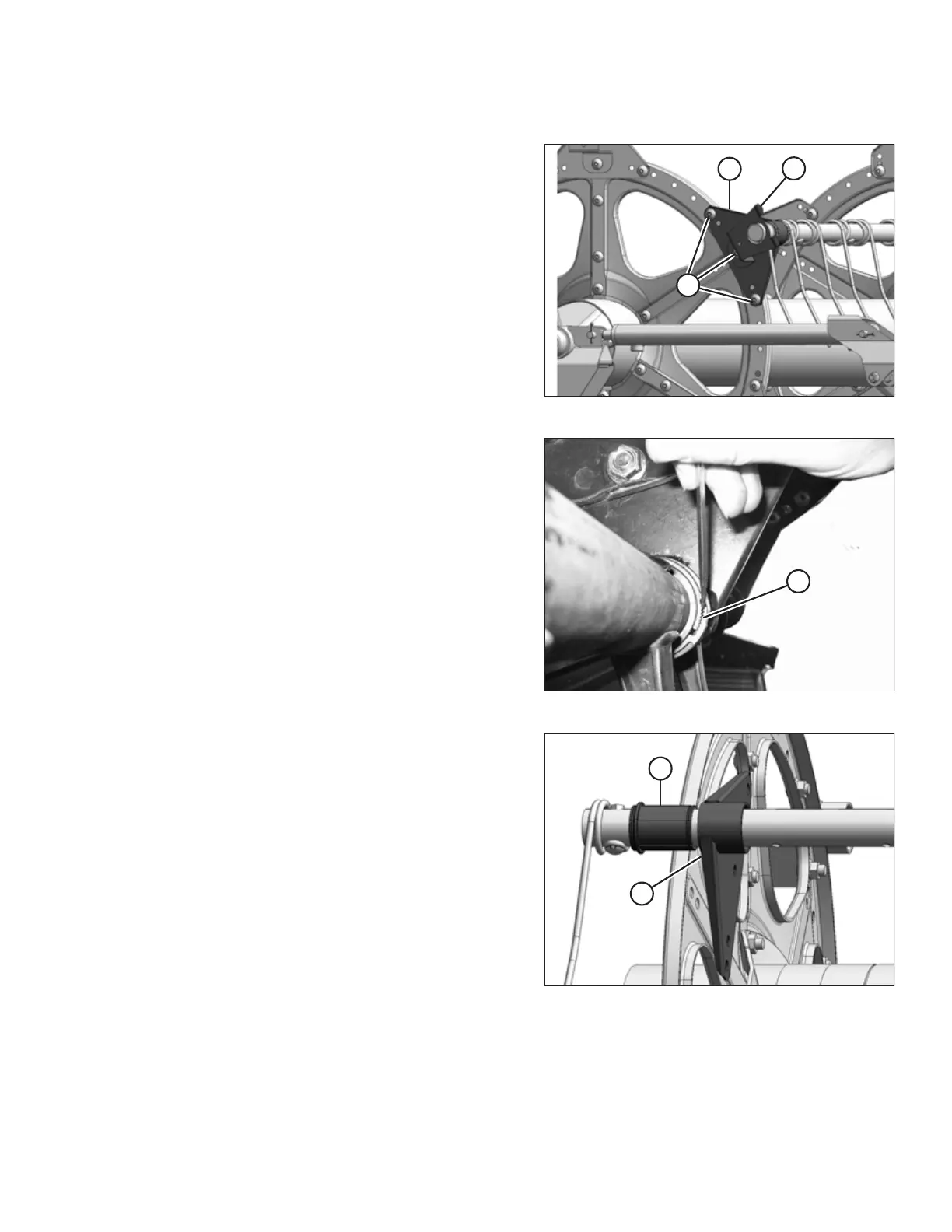

Figure 5.180: Tail End
5. Remove the reel endshields and endshield support (C) from
the tail end of the reel at the applicable tine tube location.
NOTE:
There are no endshields on the center disc.
6. Remove bolts (A) securing tine tube arm (B) to the disc.
IMPORTANT:
Note the hole locations in the arm and disc and ensure
bolts (A) are reinstalled at the original locations.
Figure 5.181: Bushing Clamp
7. Release bushing clamps (A) using a small screwdriver to
separate the serrations. Pull the clamp off the tine tube.
Figure 5.182: Bushing
8. Rotate tine tube arm (A) until clear of the disc and slide the
arm inboard off of bushing (B).
9. Remove bushing halves (B). If required, remove the next
steel or plastic finger, so the arm can slide off the bushing.
Refer to the following procedures as necessary:
• Removing Plastic Fingers, page 206
• Removing Steel Fingers, page 205
