215651 215 Revision B

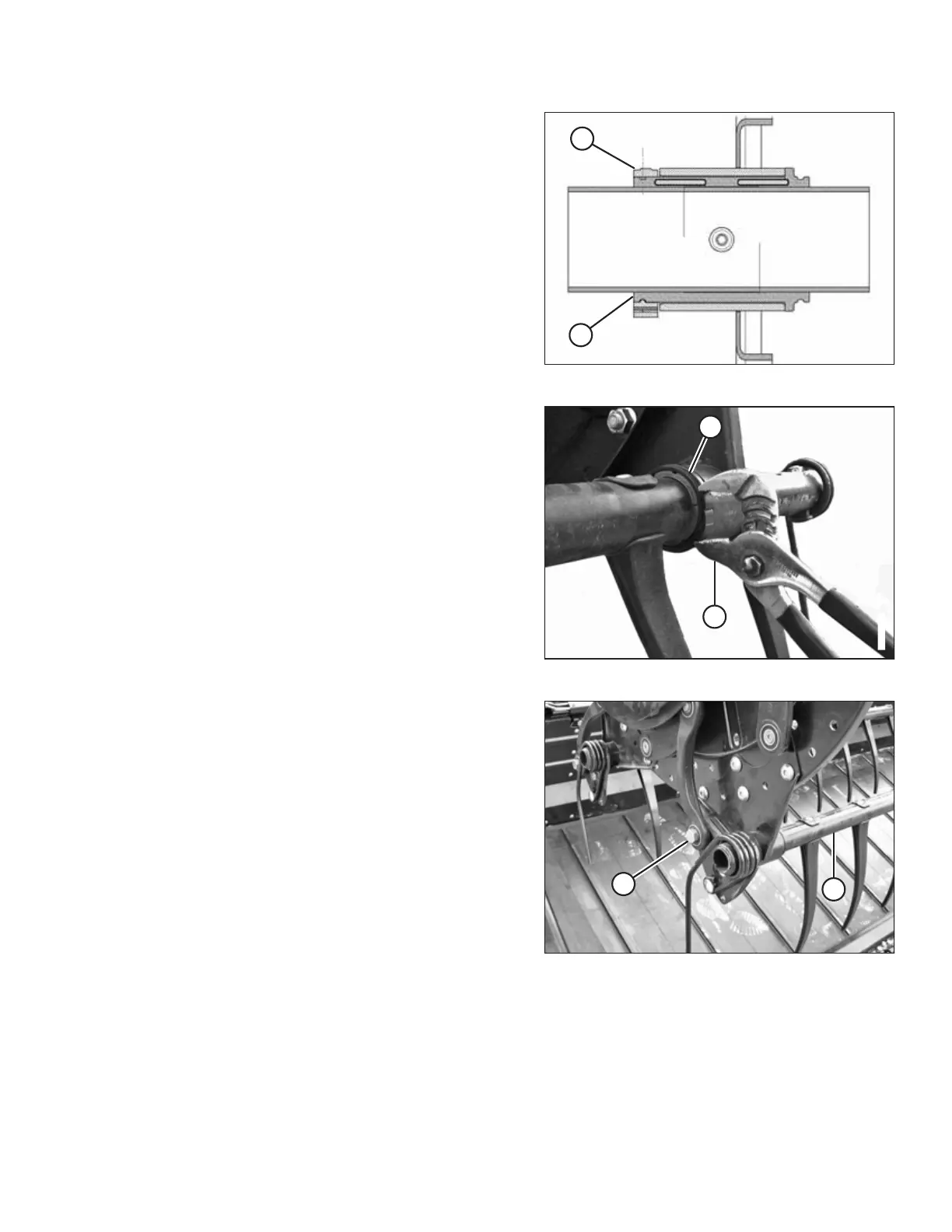

Figure 5.196: Bushing
4. Install bushing clamp (A) onto the tine tube adjacent to the
flangeless end of bushing (B).
5. Position clamp (A) on bushing (B) so the edges of the clamp
and bushing are flush when the clamp is fit into the groove
on the bushing and the lock tabs are engaged.
Figure 5.197: Installing Clamp
6. Tighten clamp (A) using modified channel lock pliers (B)
until finger pressure will NOT move the clamp.
IMPORTANT:
Overtightening clamp may result in breakage.
Figure 5.198: Cam End
7. Line up tine tube (B) with the cam arm and install bolt (A).
Torque bolt to 165 Nm (120 lbf·ft).
MAINTENANCE AND SERVICING
