215651 232 Revision B
$

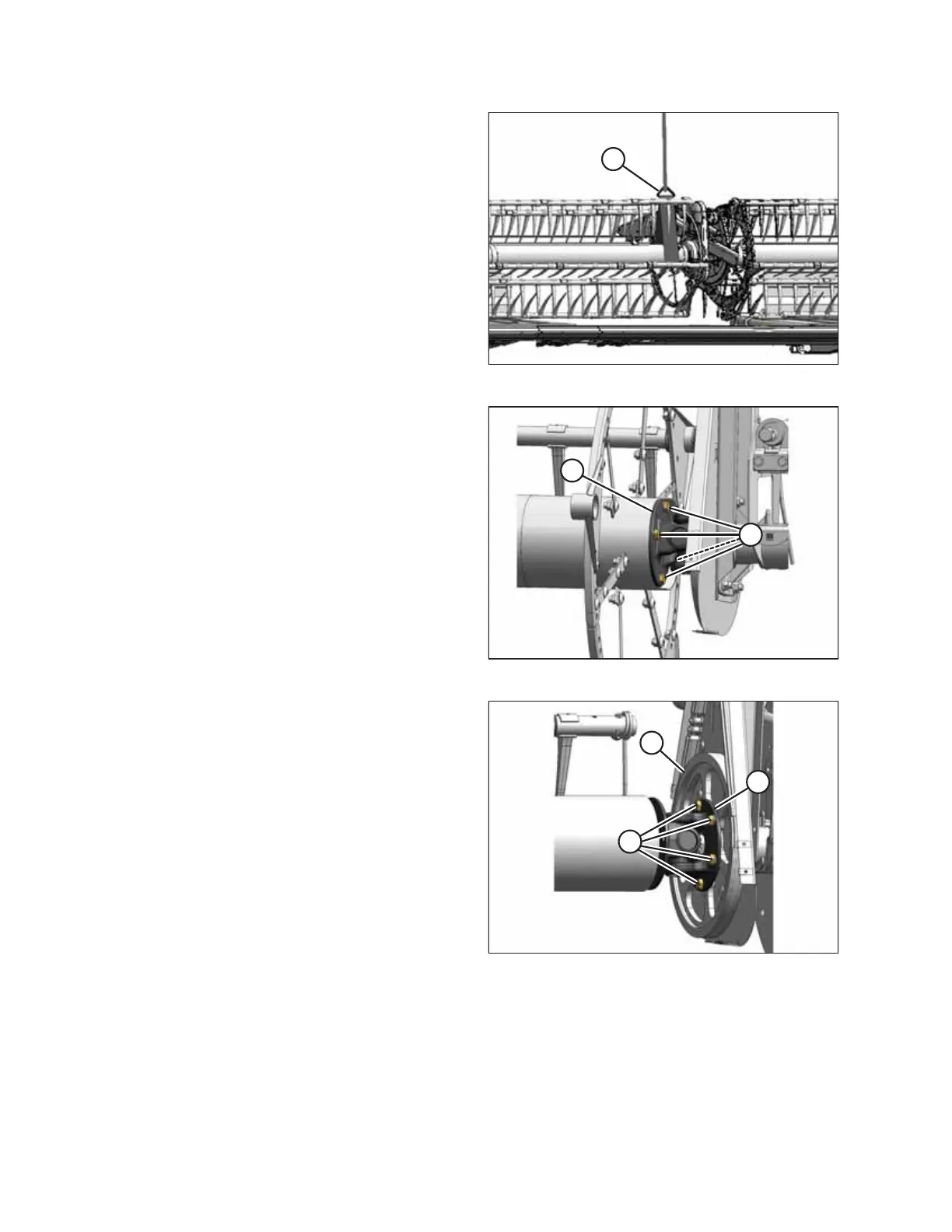

Figure 5.237: Supporting Reel
3. Support the inboard end of the right reel with a front end
loader and nylon slings (A) or equivalent lifting devices.
IMPORTANT:
To avoid damaging or denting the center tube, support the
reel as close to the end disc as possible.
$
%
Figure 5.238: U-Joint
4. Remove four bolts (A) securing the reel tube to U-joint
flange (B), and move the reel sideways.
$
%
&
Figure 5.239: U-Joint
5. Remove six bolts (A) attaching U-joint flange (B) to driven
sprocket (C).
6. Remove the U-joint.
NOTE:
It may be necessary to move the right reel sideways so that
the U-joint can clear the tube.
MAINTENANCE AND SERVICING
