215651 74 Revision B
5. Open the endshield. For instructions, refer to Opening Endshields, page 37.
%
$

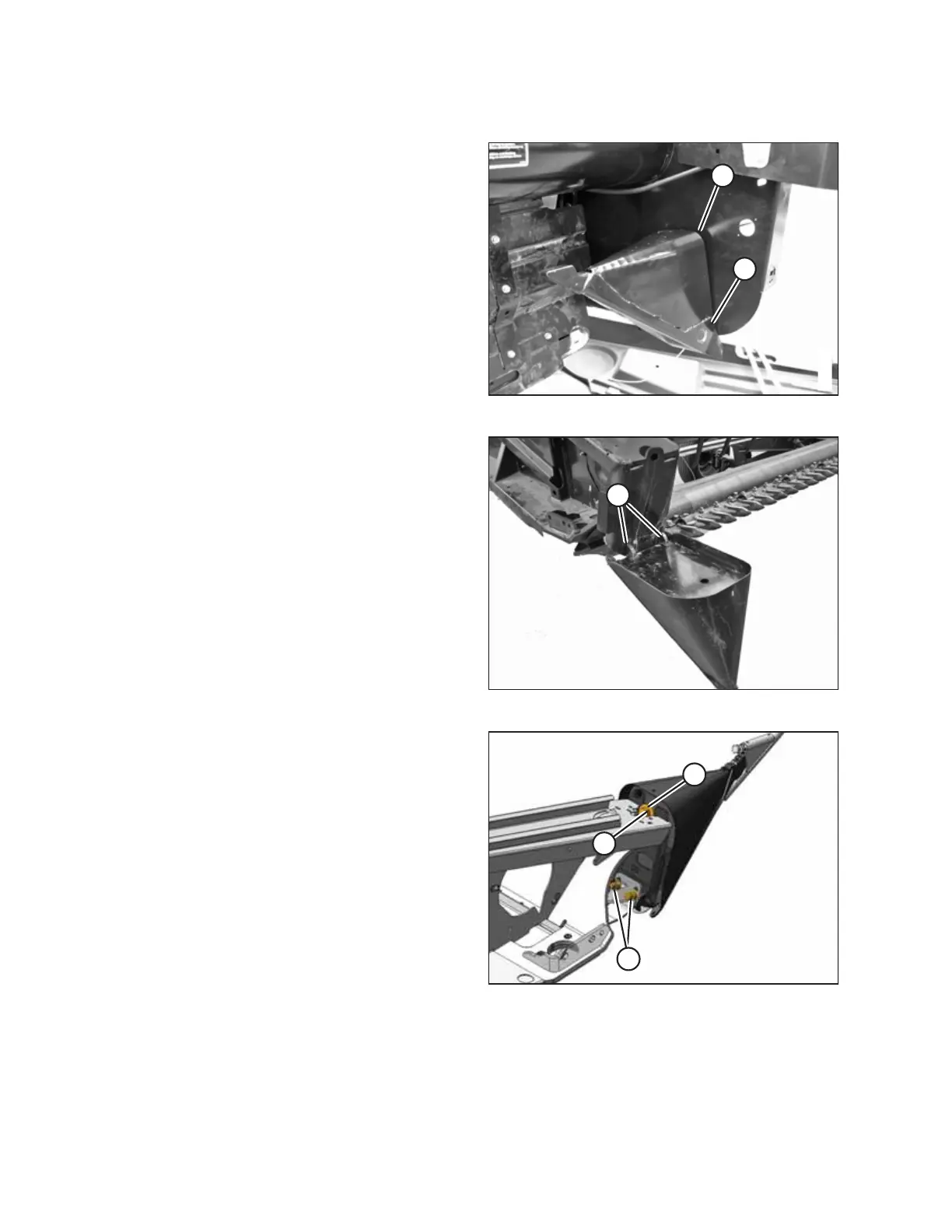

Figure 3.45: Stored Crop Divider
6. If the crop divider is stored on the header, remove the crop
divider from the storage location by lifting the crop divider
to disengage lugs (A) at the lower end and then lowering it
slightly to disengage pin (B) from the endsheet.
$
Figure 3.46: Crop Divider
7. Position the crop divider as shown by inserting lugs (A) into
the holes in the endsheet.
$
%
&
Figure 3.47: Crop Divider
8. Lift the forward end of the crop divider and install bolt (A),
and special stepped washer (B) (step towards divider).
Tighten the bolt.
9. Pull on the tip of the crop divider to ensure there is no
lateral movement. If necessary, adjust bolts (C) to tighten
the crop divider and eliminate any lateral movement.
10. Close the endshield. For instructions, refer to Closing
Endshields, page 38 .
OPERATION
