215922 152 Revision A

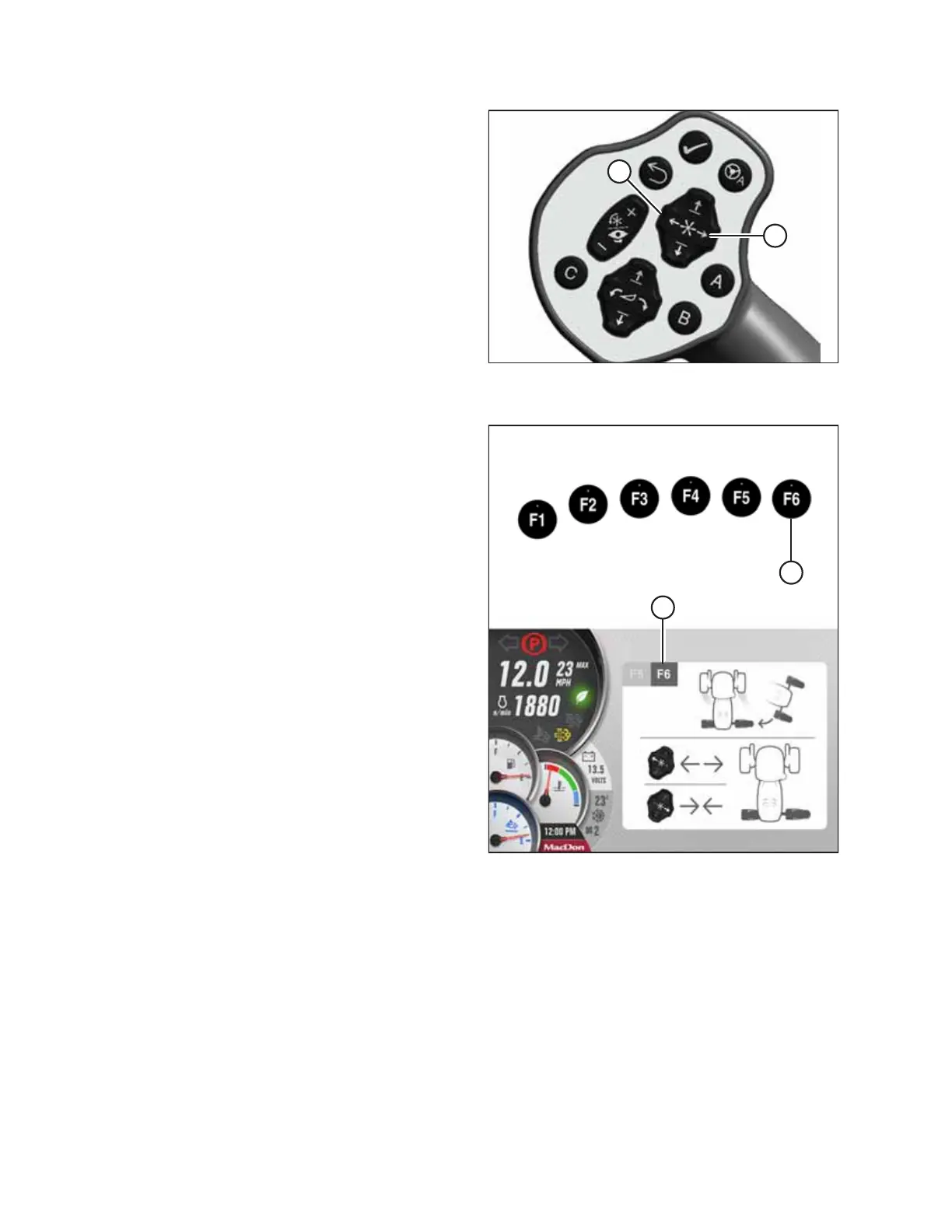

Figure 4.70: Transport Control Buttons
A - Reel Fore B - Reel Aft
11. Move the ground speed lever (GSL) out of Park and slowly
accelerate to 5–8 km/h (3–5 mph).
12. While moving, press and hold REEL FORE button (A) on the
GSL to extend drive wheel legs.
13. Bring the windrower to a complete stop, and place the GSL
in PARK.
Figure 4.71: Narrow Transport Controls
14. Press F6 button (A) on the operator’s console to activate
the walking beam controls. The F6 page (B) will display on
the HPT.
15. Pivot the windrower to turn the caster wheels sideways as
shown on the F6 page (B).
OPERATION
