214366 96 Revision A
1005224
A
B
C

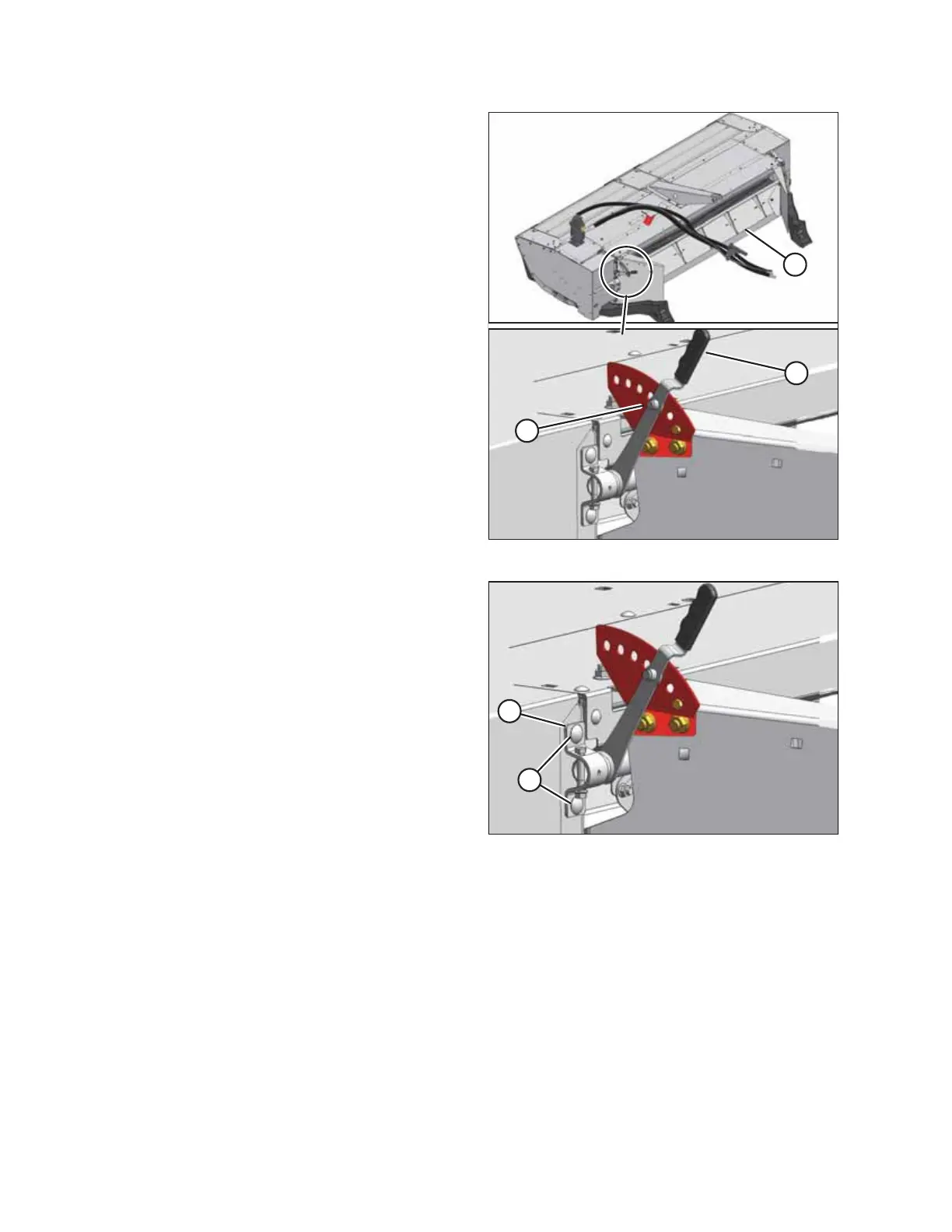

Figure 4.21: Swath Baffle Lever
1. Remove lynch pin from pin (B) and remove pin from
lever (C).
2. Move lever to middle hole in bracket and reinstall
pin (B) through lever and bracket.
3. Secure with lynch pin.
1005225
A
B
Figure 4.22: Swath Baffle Lever
NOTE:
Swath baffle position may need to be adjusted for
proper pin engagement. Loosen bolts (A) and adjust
bracket (B) and baffle as required. Tighten bolts (A).
OPERATING THE HEADER
