214366 114 Revision A
4.14 Stripper Bars
1004569

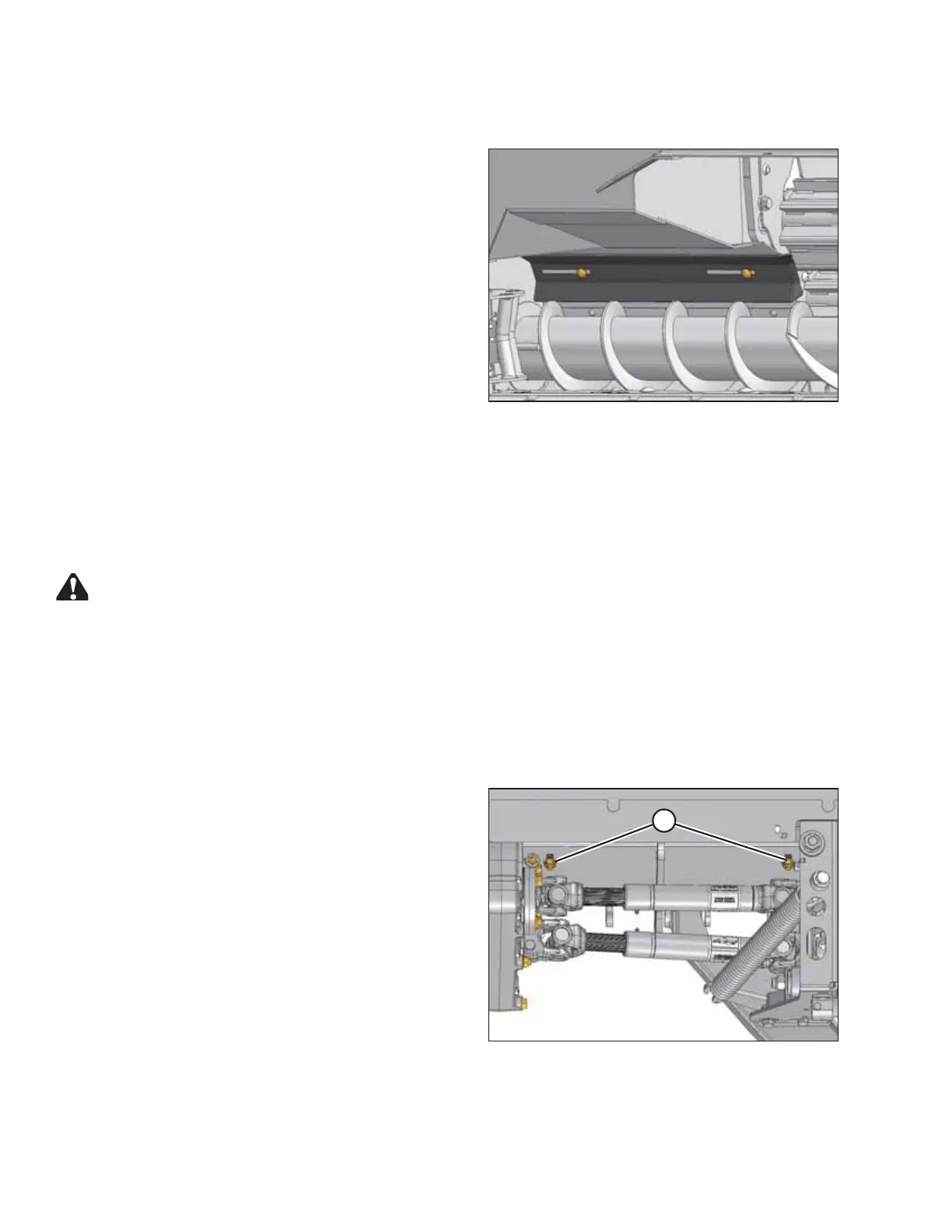

Figure 4.48: Right Stripper Bar
There are two adjustable stripper bars installed on the pan
at both ends of the auger that minimize wrapping of material
around the auger. The factory position should be
satisfactory for most crops, but bars can be adjusted for
specific conditions.
For fine stemmed crop, the auger performs best when the
stripper bars are positioned as close as possible to the
auger without rubbing.
Component wear and cutting in bumpy terrain where the
auger can contact the stripper bar may cause clearances to
become excessive resulting in feeding problems and
uneven windrows.
If material starts to accumulate between the auger flighting
and the strippers, the gap will need to be adjusted.
NOTE:
The stripper bars will likely require adjustment if the auger position is changed.
4.14.1 Adjusting the Stripper Bar
If necessary, adjust the stripper bar as follows:
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1. Lower the header fully.
2. Stop the engine and remove the key.
3. Open the cutterbar door(s). Refer to 3.5 Cutterbar Doors, page 33.
4. Open the driveshield. Refer to 3.4 Driveshields, page 30.
1004570
A
Figure 4.49: Left End Drives
5. Loosen nuts (A) on the two bolts securing stripper bar to
the pan sufficiently so that stripper bar can be moved.
OPERATING THE HEADER
