3.3 Engaging and Disengaging Header Safety Props
Safety props are located on both header lift cylinders on the windrower. Follow these steps to engage or disengage
the header safety props:
DANGER
To avoid bodily injury from fall of raised header, always engage safety props when working on or around
raised header, and before going under header for any reason.
Engage safety props as follows:
1008946
A

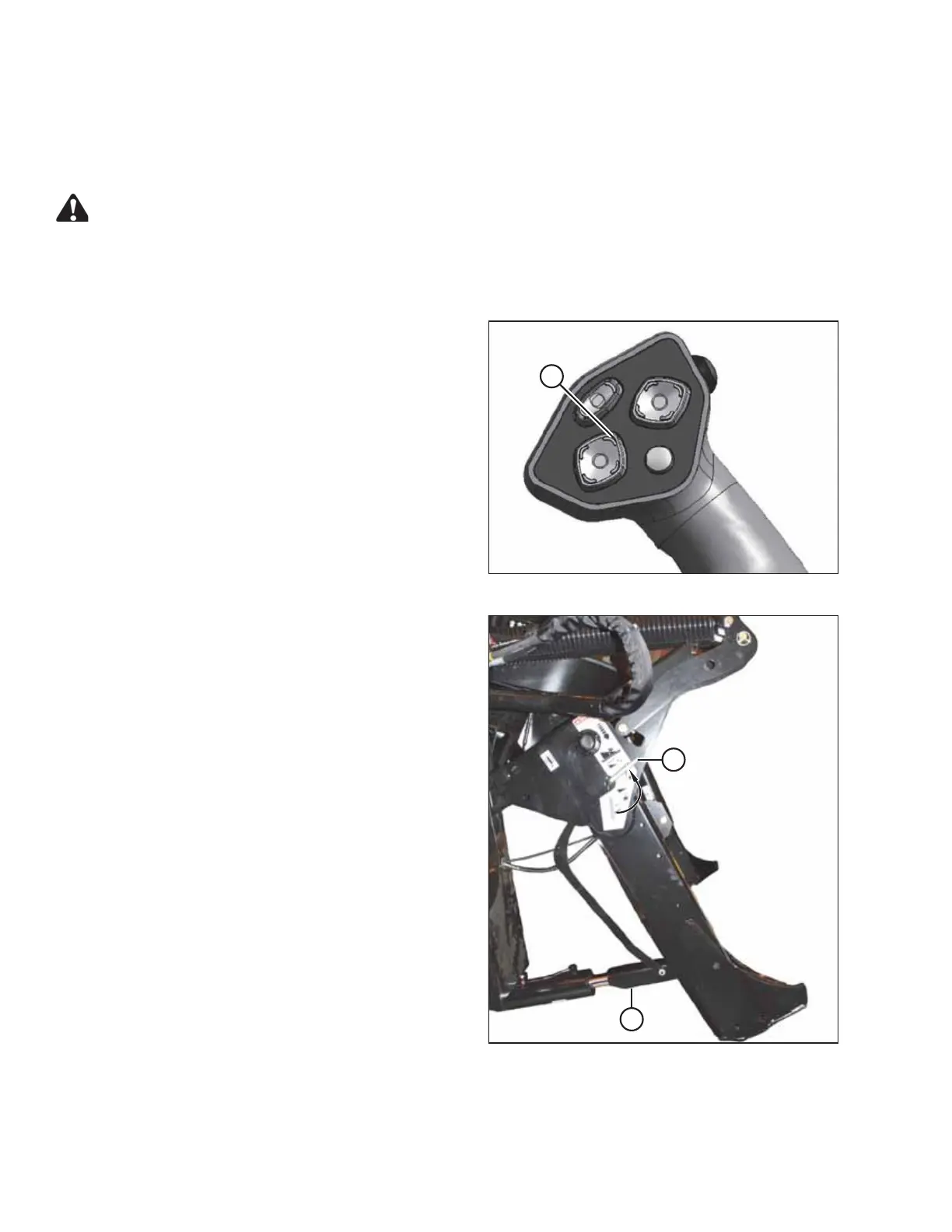

Figure 3.2: Ground Speed Lever (GSL)
1. Start engine and press header up (A) switch to raise
header to maximum height.
2. Rephase cylinders if one end of the header does not
raise fully. If rephasing is required, proceed as follows:
a. Press and hold the header up (A) switch until both
cylinders stop moving.
b. Continue to hold the switch for 3–4 seconds.
Cylinders are now phased.
1000770
A
B
Figure 3.3: Safety Prop
3. Pull lever (A) and rotate toward header to lower safety
prop (B) onto cylinder. Repeat for opposite cylinder.
