MacDon R85 - Attaching the Header; Attaching the Forming Shield

214366 41 Revision A
3.7 Attaching the Header
3.7.1 Attaching the Forming Shield
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and
remove the key from the ignition before leaving the operator’s seat for any reason.
1006026
A

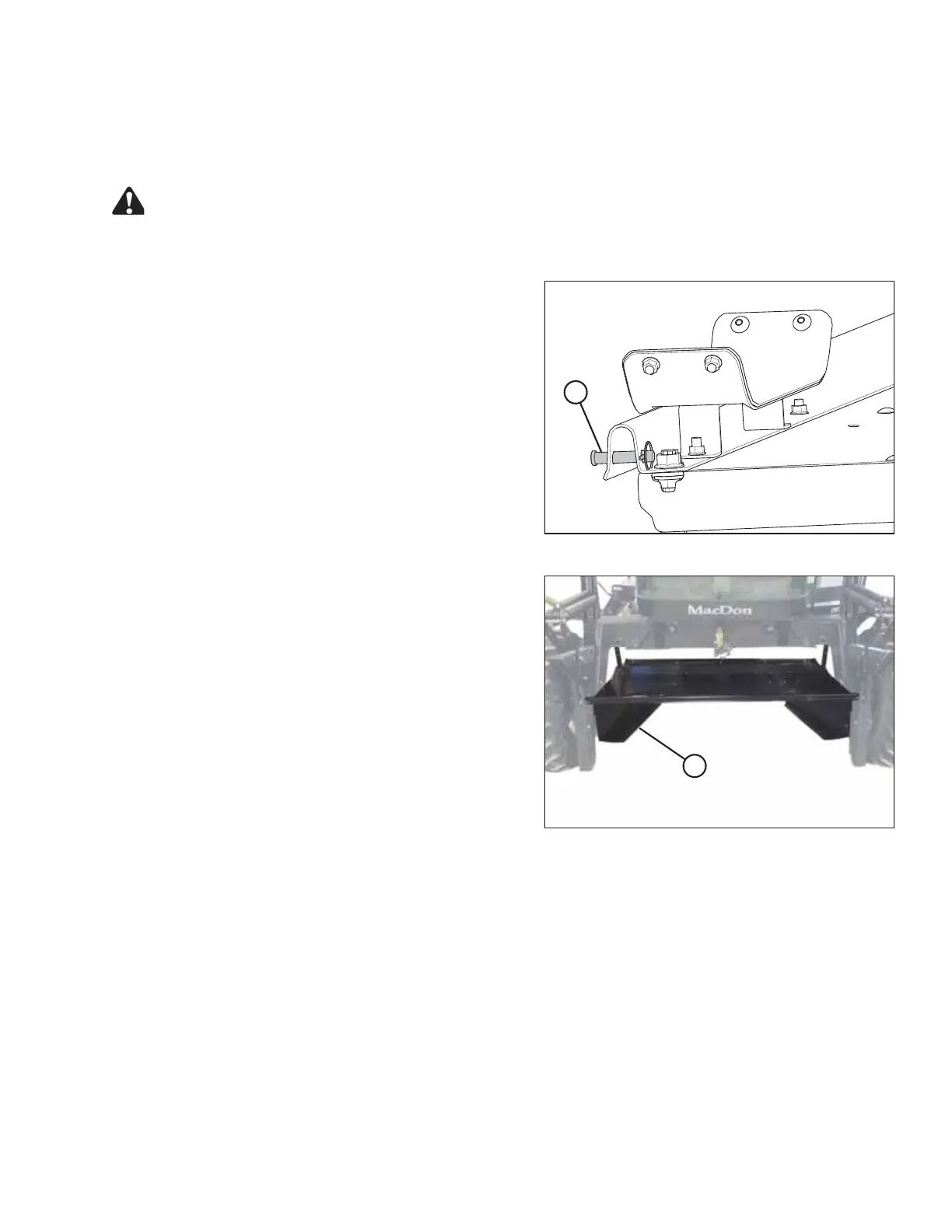

Figure 3.22: Forming Shield
1. Stop the engine and remove the key.
2. Remove the two clevis pins (A) from the forming shield
forward end.
1005181
A
Figure 3.23: Forming Shield under
Windrower Frame
3. Position forming shield (A) under the windrower frame.
OPERATION
