4.6 Header Angle
Header (or cutterbar) angle can be varied from 0–8° below horizontal. Choose an angle that maximizes
performance for your crop and field conditions. A flatter angle provides better clearance in stony conditions while a
steeper angle provides better lifting action in down crops.
1005226
A

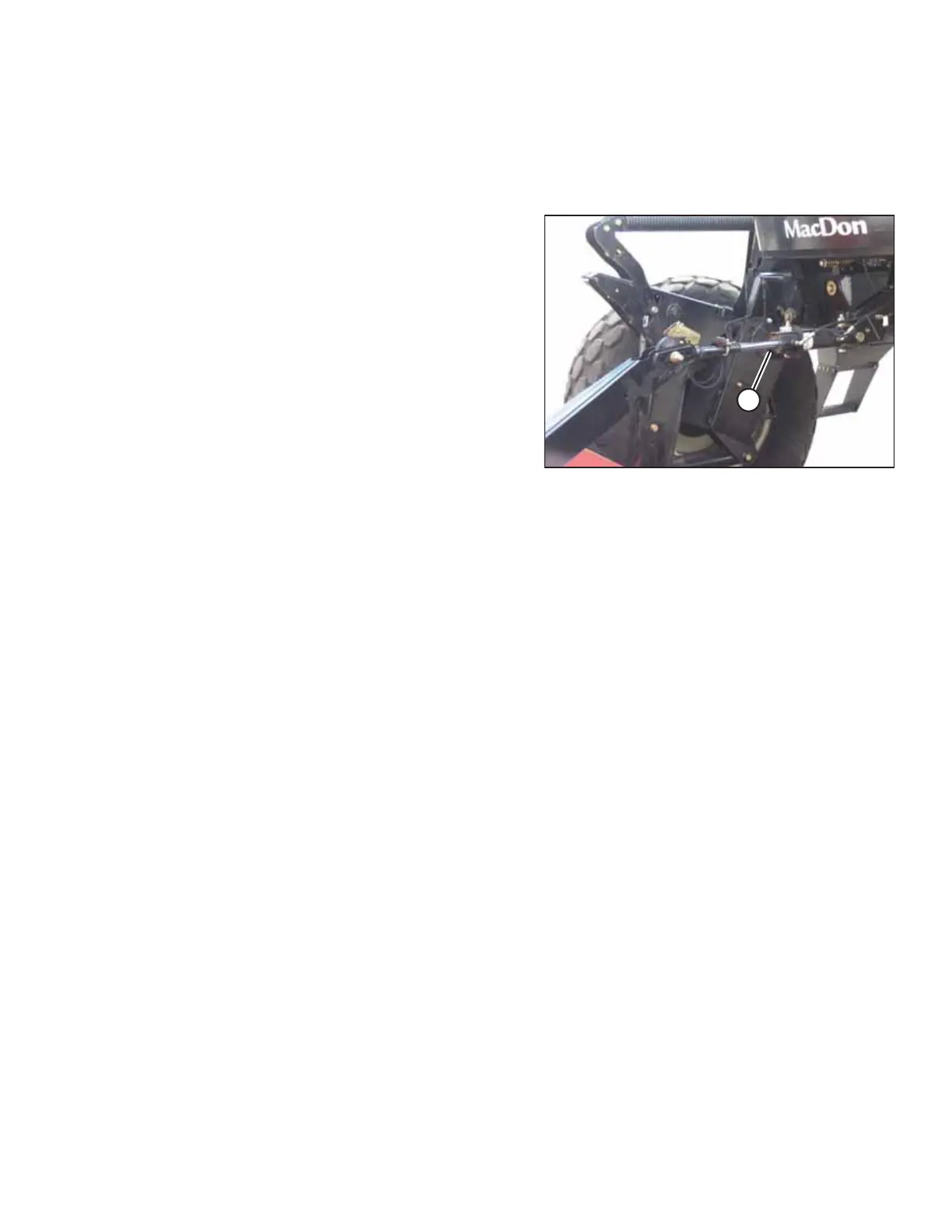

Figure 4.23: Hydraulic Center-Link
The header angle may be hydraulically adjusted from the
windrower cab using hydraulic cylinder (A) without shutting
down the windrower.
Refer to your windrower operator’s manual for instructions.
